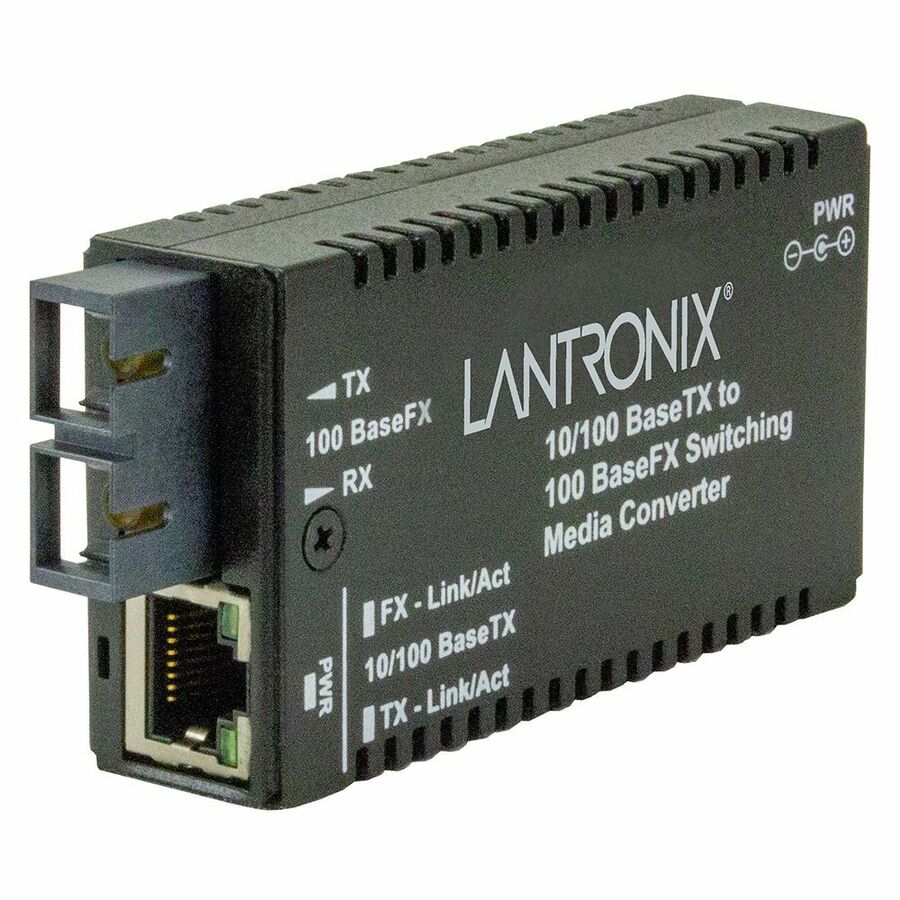

A Fast Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber. NDAA Compliant, TAA Compliant
- Eliminate Collision Domains
- Far-End-Fault FEF
- Connect to legacy network equipment
- Auto-MDI/MDIX
- Automatic Link Restoration
- Auto-Negotiation
- Fixed Full-Duplex on fiber
- Unit and Port LEDs allow for quick status information
| Brand | |
|---|---|
| Brand | Transition Networks |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Power Source | AC/DC |
| Power Consumption | 2.60 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-FX |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Audio | |
|---|---|
| Digital Audio | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Digital Audio/Video | No |
| Maximum Distance Supported | 2 km |
| Manufacturer | Lantronix, Inc |
| Video Ports | |
|---|---|
| DVI | No |
| Misc Ports | |
|---|---|
| Management Port | No |
| Total Number of Ports | 2 |
| Parallel Port | No |
| SC Port Type | Duplex |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
