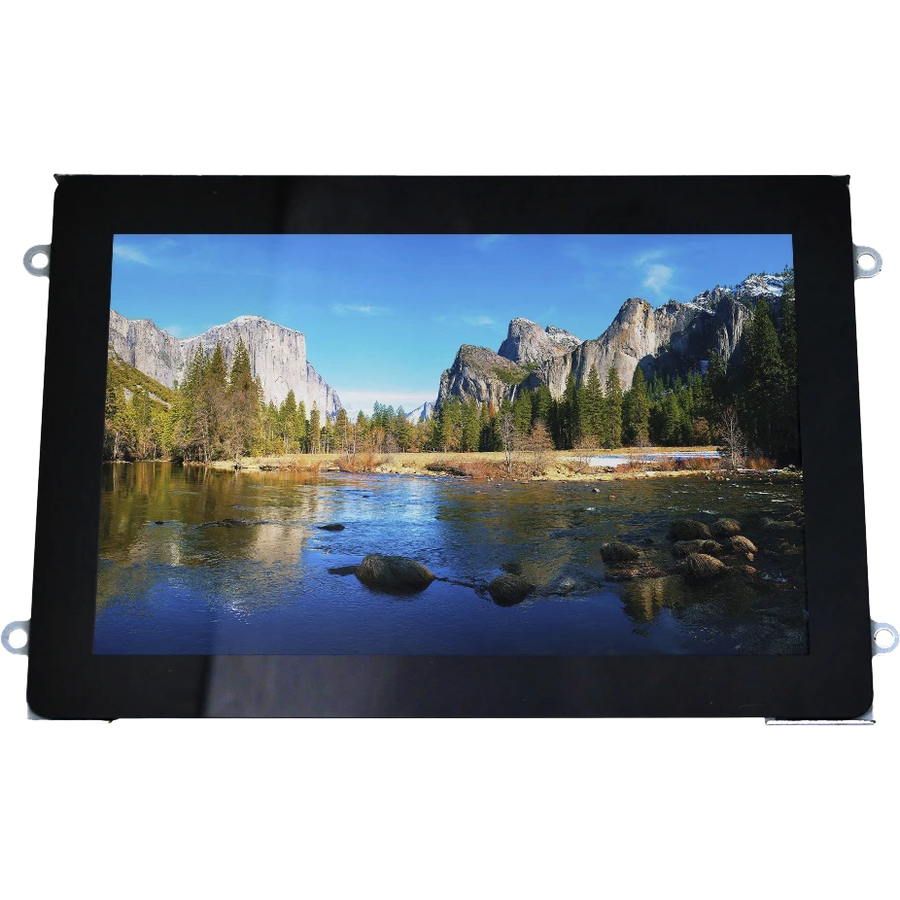

Mimo Monitors UM-1080CH-OF 10" Class Open-frame LCD Touchscreen Monitor - 16:10 - 14 ms

384.99 384.99
384.99

384.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Screen Size Class
  • Viewable Screen Size
  • Speakers
  • Multi-touch Screen
  • Touchscreen Type
  • USB
  • HDMI
  • VESA Mount Standard
  • Maximum Resolution
  • Screen Mode
  • Aspect Ratio
  • Brightness
  • Response Time
  • Horizontal Viewing Angle
  • Vertical Viewing Angle
  • Native Contrast Ratio
  • Contrast Ratio
  • Native Resolution
  • Environmentally Friendly
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Manufacturer Website Address
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Multi Point Capacitive Touch Open Frame 10.1" IPS USB Monitor

The UM-1080C-OF/UM-1080CH-OF is our widest viewing angle open frame 10.1" monitor. The UM-1080C-OF/UM-1080CH-OF is a 10.1" open frame capacitive touch monitor for applications that will be integrated into other equipment or enclosures. Same slick design features but in a long-lasting molded metal product cycle-enclosure. Future generation panels can be phased-in without external changes. The UM-1080C-OF/UM-1080CH-OF open frame capacitive touch display is designed to provide the most cost effective solutions for consumer, retail POS, and hospitality markets.

Available in Single Cable USB Video

Utilizing the same single cable USB display technology as our line of displays, the UM-1080C-OF is our widest viewing angle 10.1" monitor. The screen can display in either landscape or portrait orientations and has nearly 180 degree viewing angles, all while sending video, touch, and power over a single USB connection.

  • Utilizes HDMI input for video and USB or 5v DC for power.
  • Rear 4 point mounting for secure installation
  • Non-Touch (UM-1080-OF)
  • HDCP Compliant
  • Surface treatment: Hard coating (3H), anti-glare
  • Capacitive touch (UM-1080CH-OF)
  • Pixel arrangement: RGB vertical stripe
  • Display colors: 262,144
Brand
Brand Mimo Monitors
Screen / Display
Screen Size Class 10"
Viewable Screen Size 10.1"
Multi-touch Screen Yes
Touchscreen Type Capacitive
Maximum Resolution 1280 x 800
Screen Mode WXGA
Aspect Ratio 16:10
Brightness 350 Nit
Response Time 14 ms
Horizontal Viewing Angle 170°
Vertical Viewing Angle 170°
Native Contrast Ratio 800:1
Contrast Ratio 800:1
Native Resolution 1280 x 800
USB Ports
USB Yes
HDMI Ports
HDMI Yes
Audio
Speakers Yes
Size / Dimensions
VESA Mount Standard 75 x 75
General Features
Manufacturer Mimo Monitors, Inc
Compliance & Certification
Environmentally Friendly Yes
Miscellaneous
Product Name 10.1" Capacitive Touch Open Frame Display
Mimo Monitors UM-1080CH-OF 10" Class Open-frame LCD Touchscreen Monitor - 16:10 - 14 ms - 10.1" Viewable - Capacitive - Multi-touch Screen - 1280 x 800 - WXGA - 800:1 - 350 Nit - Speakers - HDMI - USB - 1 Year
