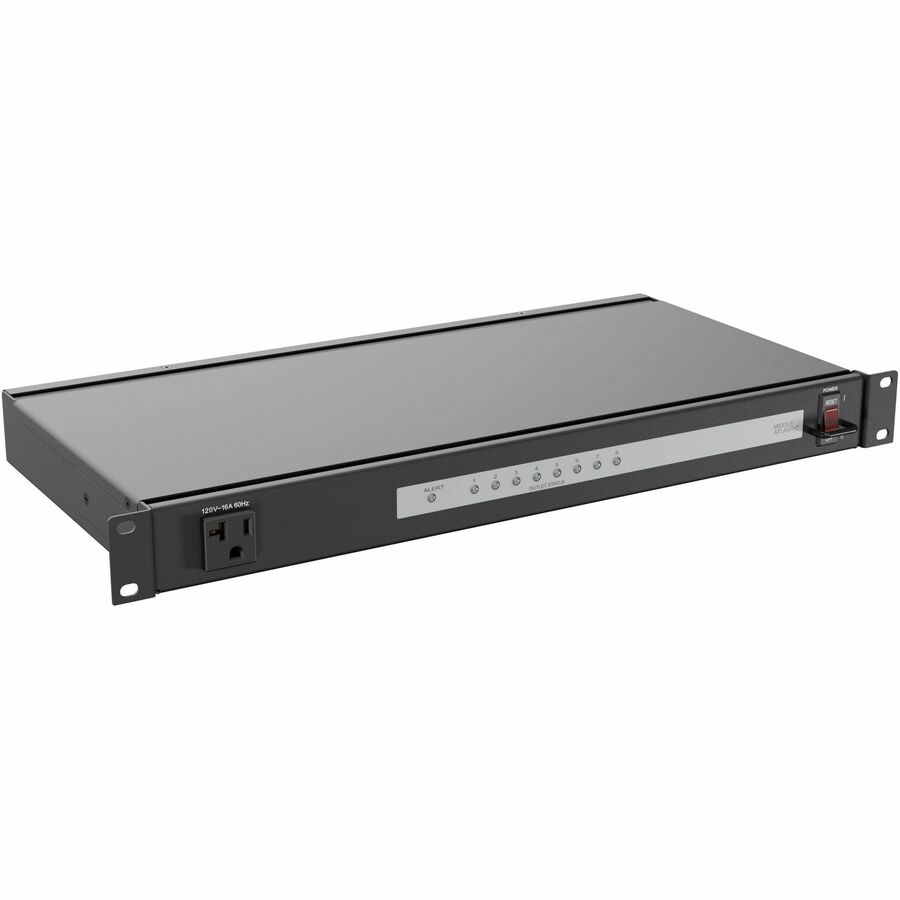

Middle Atlantic Select 9-Outlet Rack Mounted PDU with RackLink - 20 Amp Power Distribution Unit

770.40 770.40
770.40

770.40 / Units
  • Brand
  • Depth
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • PDU Type
  • Input Frequency
  • Protection Type
  • Cord Length
  • Receptacle Detail
  • Plug/Connector Type
  • Mount Type
  • Input Voltage
  • Output Voltage
  • Input Current
  • Certifications & Standards
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Manufacturer Website Address
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

Monitor your power anytime, anywhere, and even automatically. Select Series PDUs with RackLink creates a simple and cost-effective solution that puts intelligent control of power distribution at your fingertips, wherever you are. The applications are endless - RackLink allows you to manage everything from a network of digital signage installs, to a building full of conference rooms, to an entire campus of classrooms - all from your device. Plug it in, feel confident, and simply focus on creating an amazing AV experience. 20 Amps. 9 Outlets, 8 controlled rear distribution outlets PLUS one front convenience outlet. RackLink is international. CE Rated with IEC outlets. Get the RackLink you know and trust for your international deployments. The control you need to maintain the uptime of your equipment. After you go through the easy set-up of the RackLink user interface, you'll have individual IP outlet control for up to 8 outlets. Manage the start-up or shut down of your equipment. RackLink enables remote sequencing with user selectable delays for an optimal start-up or shut down progression. Fast and easy commissioning. Using the RackLink Discovery app on iPhone or Android, quickly connect your RackLink enabled PDUs and monitor your system, anywhere, anytime. Automate it and fugetaboutit. Improve your system reliability by automating actions such as multiple IP AutoPing and recovery. Always be informed. Receive automatic notifications of connection status. Do you prefer to use a third party software? Seamlessly interfaces with 3rd party AV control systems and cloud platforms for scheduling, control, reporting and even customization.

  • PDU allows power to be more efficiently distributed and controlled
  • Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs
  • NEMA 5-20P plug/connector type for efficient connectivity and feasible power output
  • 230 V AC input voltage for maximum feasibility and added productivity
  • 240 V AC output voltage for maximum dependability and added productivity
Brand
Brand Legrand Group
Power & Battery
PDU Type Monitored
Input Frequency 60 Hz
Receptacle Detail 9
Plug/Connector Type NEMA 5-20P
Input Voltage 230 V AC
Output Voltage 240 V AC
Input Current 20 A
Size / Dimensions
Mount Type Rack-mountable
General Features
Protection Type Surge Protection
Manufacturer Legrand Group
Cables
Cord Length 8.86 ft
