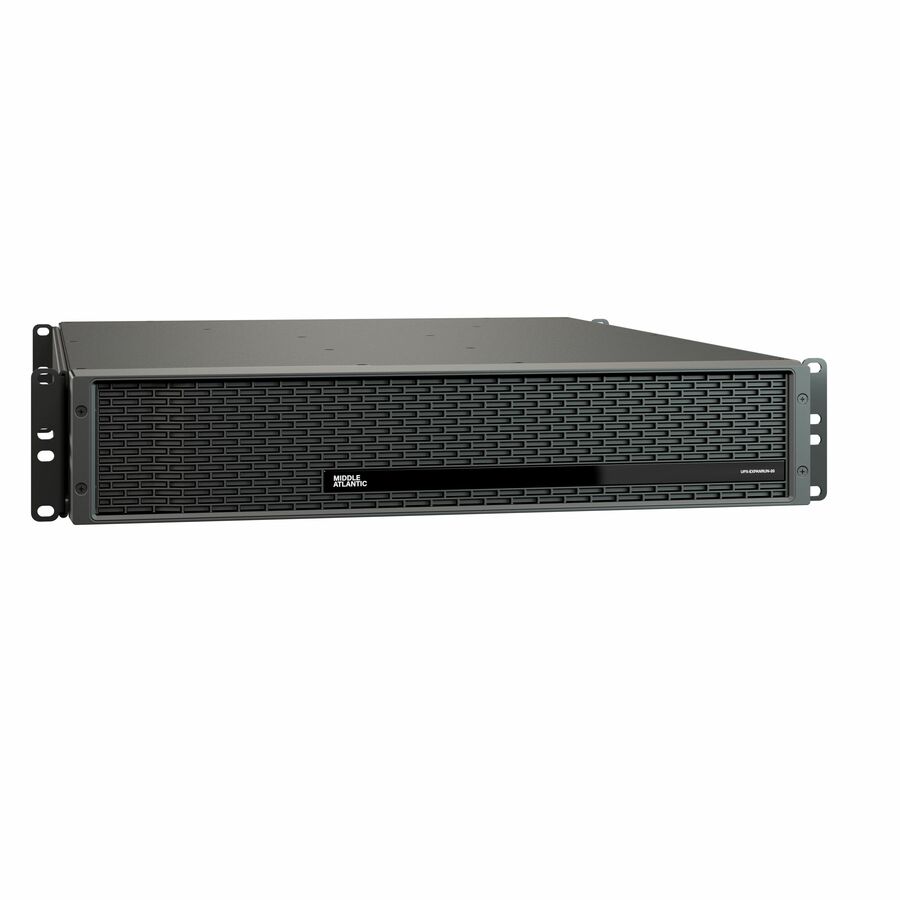

The Middle Atlantic UPX-EXPANRUN-20 is an expandable runtime battery unit compatible with line interactive UPS systems. It operates at a nominal voltage of 120VAC. The unit has a manual DC breaker to disable DC output to the battery main connector and features a sealed, maintenance-free lead-acid battery with a recharge time of 6-8 hours. The dimensions are 22in depth x 3.5in height x 19in width, and it weighs 70.1 lbs (31.8kg). The product is cTUVus tested to UL 1778 & CAN CSA-C22.2 standards and is RoHS REACH compliant. It comes with a three-year limited warranty (two years for the battery).
- Works adequately in situations where the supply is prone to sags and surges
- 200 VA load capacity - work without any interruption during power outages
- NEMA 5-15P plug/connector type for maximum usability with added reliability
- NEMA 5-15R receptacle type offers ease of operation with maximum efficiency
- 120 V AC input voltage for better reliance and maximum dependability
- 110 V AC output voltage for better reliance and maximum usability
- Rack-mountable line-interactive ups allows maximum space utilization with easy and convenient access to the keyboard
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| AVR | Yes |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage | 120 V AC |
| Output Voltage | 127 V AC |
| Load Capacity (VA) | 200 VA |
| DC System Voltage | 48 V DC |
| Waveform Type | Pure Sine Wave |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Legrand Group |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Environmentally Friendly | Yes |
