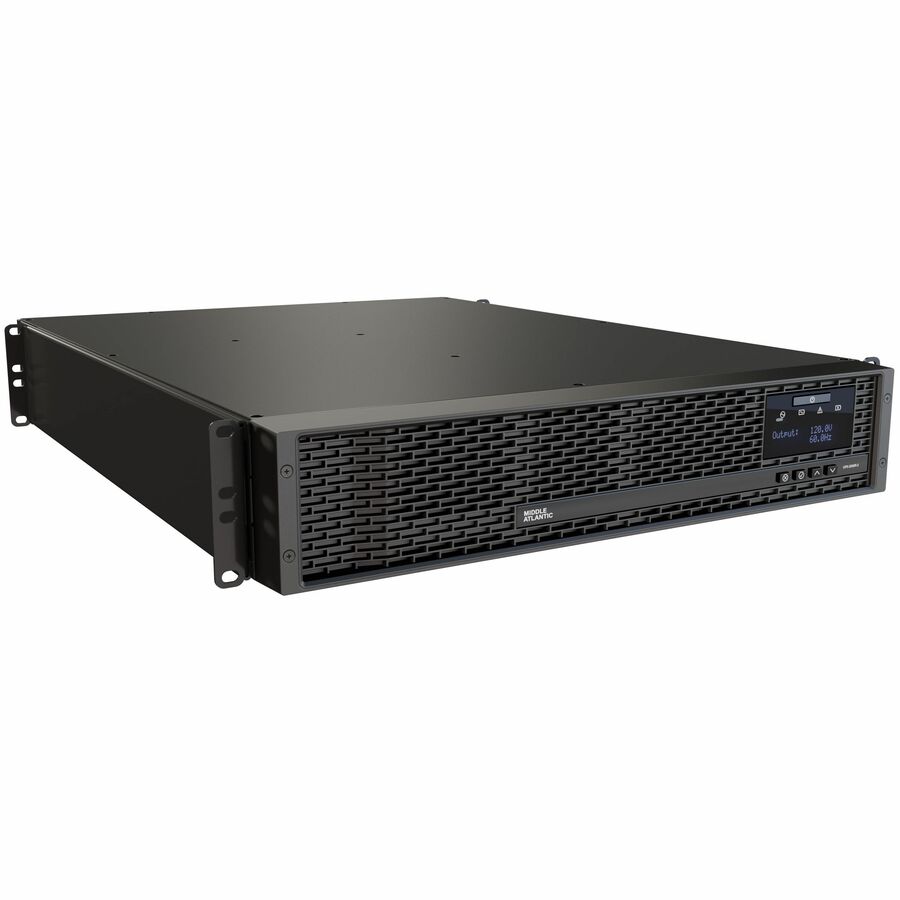

Middle Atlantic NEXSYS Series 2RU 20 Amp UPS Battery Backup Power System with Bank Outlet Control - 2000VA

3,079.80 3,079.80
3,079.80

3,079.80 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Energy Efficiency Certificati
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Additional Warranty Informati
  • Width
  • Network Management
  • Hot Swappable
  • Input Frequency
  • Status Indicators
  • Alarm
  • AVR
  • Display
  • USB
  • EPO Port
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Serial Port
  • Form Factor
  • Battery Capacity
  • Battery Chemistry
  • Battery Size
  • Number of Batteries
  • Battery Characteristics
  • Typical Battery Recharge Time
  • Maximum Operating Temperature
  • Storage Temperature
  • Operating Humidity
  • Input Voltage Range
  • Input Voltage
  • Output Voltage
  • Energy Star
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Load Capacity (Watt)
  • Load Capacity (VA)
  • Sound Emission
  • Output Frequency
  • DC System Voltage
  • Backup/Run Time (Full Load)
  • Backup/Run Time (Half Load)
  • Transfer Time
  • Waveform Type
  • Surge Energy Rating
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Line Interactive UPS backups prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect. 2000VA and 20 amp battery backup. 8 Outlet UPS backup with Bank Control, (2) outlet banks with 4 outlets each. An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations. Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rack rails. The battery is already connected so just plug it in. Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended. Set reminders or notifications for things like battery replacement, etc. via email or on the UPS. The IEC Input allows for better cable management of the power cord if shorter or longer cords are required. All UPSs include a 6' (1.8m) IEC power cord. Name, address, and date of birth, please? Easily locate the IP, MAC address, and device name via the front LCD screen. You can even see the battery installation date. Pure Power. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment. Keep your power squeaky clean. Easily set specific thresholds to switch the unit to battery if the power quality isn't up to your standards. Swap it like it's hot. Hot-swappable battery from the front access panel for easy service without disrupting the system. RackLink Remote Management Built-In. Included RS232 port for control, (2) dry contact ports for alerts, 1 contact is defined to alert users of a battery switchover when the UPS loses utility power or hits a set threshold, 1 contact is defined to alert users when the battery level is low based on usage with customizable thresholds. Energy Star Certified.

  • Works adequately in situations where the supply is prone to sags and surges
  • Keep your sensitive devices powered with a backup of up to 3 minute at full load
  • 1800 W load capacity - backup power for your valuable electronics
  • 2000 VA load capacity provides sufficient backup during power failures
  • 4 batteries for optimal performance with maximum usability
  • 12V battery size for maximum productivity with added dependability
  • 9000 mAh battery capacity for dependable, faster charging to ensure maximum convenience and usability
  • 8 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
  • Lead Acid battery chemistry delivers energy to the desktop through an easily controlled reaction
  • NEMA 5-20P plug/connector type for maximum usability with added reliability
Brand
Brand Legrand Group
Screen / Display
Display LCD
Power & Battery
Battery Characteristics Maintenance-free , Sealed
Input Frequency 60 Hz
AVR Yes
EPO Port Yes
Receptacle Detail 8 x NEMA 5-20R
Receptacle Type NEMA 5-20R
Plug/Connector Type NEMA 5-20P
Battery Capacity 9000 mAh
Battery Chemistry Lead Acid
Battery Size 12V
Number of Batteries 4
Typical Battery Recharge Time 8 Hour
Input Voltage Range 80 V AC - 158 V AC
Input Voltage 120 V AC
Output Voltage 127 V AC
Load Capacity (Watt) 1800 W
Load Capacity (VA) 2000 VA
Output Frequency 60 Hz
DC System Voltage 48 V DC
Backup/Run Time (Full Load) 3 Minute
Backup/Run Time (Half Load) 10 Minute
Transfer Time 10 ms
Waveform Type Pure Sine Wave
Surge Energy Rating 1000 J
Networking & Connectivity
Network Management SNMPv3
USB Ports
USB Yes
Size / Dimensions
Form Factor Rack-mountable
General Features
Hot Swappable Yes
Alarm Overload
Manufacturer Legrand Group
Misc Ports
Serial Port Yes
Compliance & Certification
Energy Efficiency Certificati ENERGY STAR 2.0
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 113°F (45°C)
Operating Humidity 0% - 95%
Energy Star Yes
Environmentally Friendly Yes
Sound Emission 50 dB
