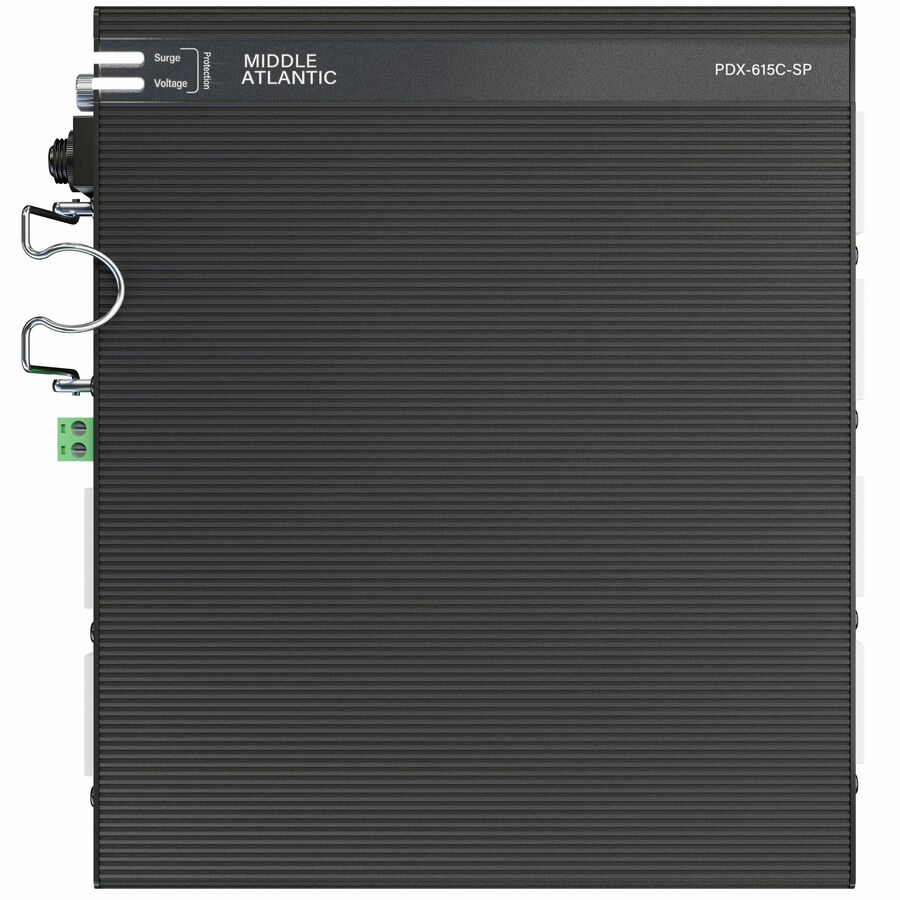

The Middle Atlantic PDX-615C-SP is a compact NEXSYS PDU designed for 'behind-the-display' applications, particularly digital signage. It features (6) NEMA 5-15R outlets and operates at 15A. The PDU offers flexible mounting options with both clamp and L-brackets, which can be easily attached to a Lever Lock plate for tool-free installation inside a rack, kiosk, or in-wall box. It includes Series stage MOV surge protection with 3 stages and visual indicators of surge status on the front and side. The selectable on/off voltage protection from the dry contact port helps safeguard sensitive equipment from over/under voltage scenarios by automatically turning off the outlets during such events and restoring them once the power is within the acceptable range. The PDU also supports cleaner cable management with a standard 2ft power cord and allows for the use of both outlets without obstruction, thanks to the orientation designed for easier plugging of DC transformers (wall warts).
