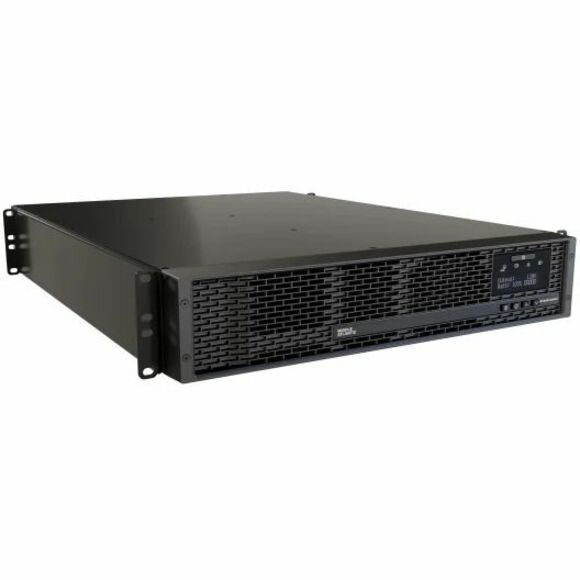

NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Online UPSs prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect.
Control Concepts Supported Product
Have the confidence that our modules and plug-ins are developed and backed by Control Concepts, the premier software developer for the AV industry.
- 7 Outlets with Bank Control
- (2) outlet banks (top and bottom) with 3 outlets each
- (6) NEMA 5-20R outlets
- (1) NEMA L5-30R not controlled but always on when UPS is turned on
- 3000VA and 30 Amp
An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations
- Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail
- The battery is already connected so just plug it in
Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended
RackLink™ Remote Management. RackLink compatible for remote monitoring and management right out of the box! Use the RackLink Discovery Tool on your on PC, Apple or Android devices and connect directly to the UPS.
Pure Power. All NEXSYS Online Double Conversion UPSs have a Pure Sine Wave output providing the cleanest power to your connected equipment, especially the most sensitive equipment
No time to wait. Absolute zero transfer time because the connected equipment is ALWAYS powered from the battery. Keep in mind, that batteries in Online UPSs do need to be replaced more frequently, but NEXSYS will give you the heads up when that time comes.
"NEXSYS, alert me when...". Set reminders or notifications for things like battery replacement, etc. via email or on the UPS
Swap it like it's hot. Hot-swappable battery from the front access panel for easy service without disrupting the system
Energy Star Certified
- The ONLY Online UPS with Energy Star in the AV market
- U.S. Department of Energy Compliant for energy efficiency
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Prevent critical data loss by staying powered during a blackout with up to 2700 W load capacity
- 3000 VA load capacity provides sufficient backup during power failures
- Replaceable battery for maximum feasibility and better usability
- NEMA L5-30P plug/connector type for convenient usage with added dependability
- NEMA L5-30R receptacle type offers ease of operation with maximum efficiency
- 110 V AC output voltage for optimal performance with maximum feasibility
- Rack-mountable double conversion online ups allows maximum space utilization with easy and convenient access to the keyboard
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| Replaceable Battery | Yes |
| Receptacle Detail | 6 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | NEMA L5-30P |
| Output Voltage | 127 V AC |
| Load Capacity (Watt) | 2700 W |
| Load Capacity (VA) | 3000 VA |
| Waveform Type | Pure Sine Wave |
| Networking & Connectivity | |
|---|---|
| Network Management | Network Card |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Legrand Group |
| Cables | |
|---|---|
| Cord Length | 10.17 ft |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 2.0 |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Energy Star | Yes |
