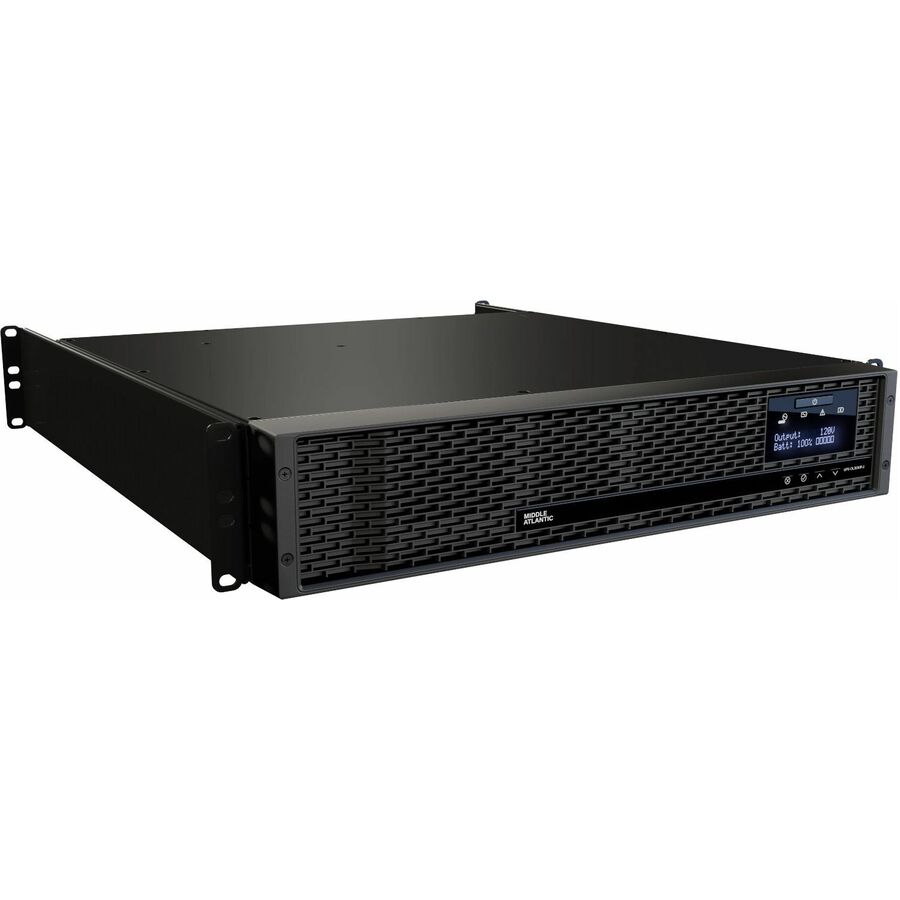

NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Online UPSs prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect.
- 8 Outlets with Bank Control
- (2) outlet banks with 4 outlets each
- 2000VA and 20 Amp
An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations
- Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail
- The battery is already connected so just plug it in
Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended
Pure Power. All NEXSYS Online Double Conversion UPSs have a Pure Sine Wave output providing the cleanest power to your connected equipment, especially the most sensitive equipment
No time to wait. Absolute zero transfer time because the connected equipment is ALWAYS powered from the battery. Keep in mind, that batteries in Online UPSs do need to be replaced more frequently, but NEXSYS will give you the heads up when that time comes.
"NEXSYS, alert me when...". Set reminders or notifications for things like battery replacement, etc. via email or on the UPS
Swap it like it's hot. Hot-swappable battery from the front access panel for easy service without disrupting the system
The IEC Input allows for better cable management of the power cord if shorter or longer cords are required
Includes a 6' (1.8m) SignalSAFE™ IEC power cord
Energy Star Certified
- The ONLY Online UPS with Energy Star in the AV market
- U.S. Department of Energy Compliant for energy efficiency
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Prevent critical data loss by staying powered during a blackout with up to 1800 W load capacity
- 2000 VA load capacity - work without any interruption during power outages
- Replaceable battery for optimal performance with maximum charged dependability
- NEMA 5-20P plug/connector type for a secure, feasible operation
- NEMA 5-20R receptacle type provides secure, reliable connection with added productivity
- 110 V AC output voltage for optimal performance with maximum feasibility
- Rack-mountable double conversion online ups allows maximum space utilization with easy and convenient access to the keyboard
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| Replaceable Battery | Yes |
| Receptacle Detail | 8 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | NEMA 5-20P |
| Output Voltage | 127 V AC |
| Load Capacity (Watt) | 1800 W |
| Load Capacity (VA) | 2000 VA |
| Waveform Type | Pure Sine Wave |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Legrand Group |
| Cables | |
|---|---|
| Cord Length | 6 ft |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 2.0 |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Energy Star | Yes |
