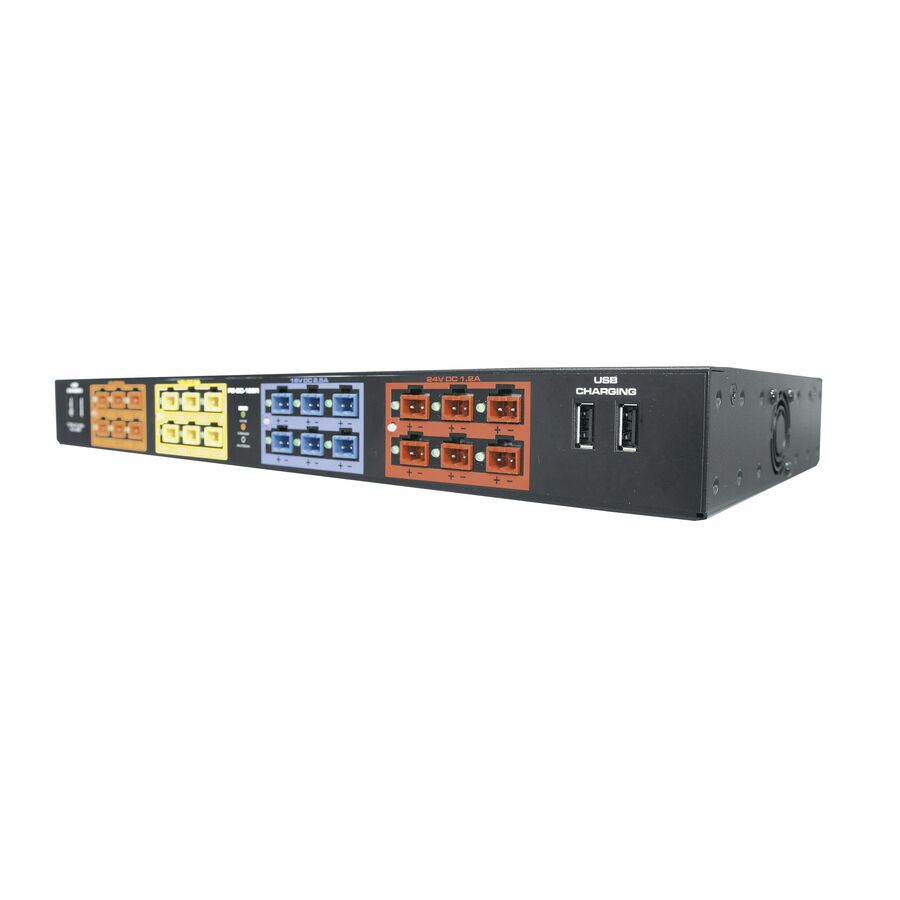

Clean up your rack by replacing messy, space consuming wall warts and power strips with the Select Series DC Power Distribution designed for AV, security, and networking applications. The DC Power Distribution PDUs allow you to optimize installations that involve a multitude of devices in varying voltages. The PDUs provide high current capacity to an extensive number of outputs, maximizing the same voltage in a single unit or splitting between the most popular voltages. Additionally, with flexible mounting options, you can bring DC Power to a typical rack unit, small enclosure, or wall box. Plug it in, feel confident, and simply focus on creating an amazing AV experience.
- UL Listed to US and Canadian requirements
- CE marked and has 230V/50Hz input (select models)
- Hardware kit includes flexible mounting hardware, color-coded screw terminal connectors to connect devices, and a 6ft IEC power cord
- LED indicator lights showing activity on each output and alerting maximum capacity on each voltage bank
- AC convenience outlets provided (PD-DC-45 only)
- USB charging ports provided to conveniently power compatible products (not for data transfer)
- MOV surge and overload protection on the AC input and auto-resetting PTC overload protection on each individual DC output
- Color-coded screw terminal connectors with industry standard voltages & polarity labeling for easy identification
- Multiple voltage outputs (5V, 12V, 18V, & 24V, depending on model) supported in a single box form factor
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 125 W |
| Receptacle Detail | 4 x USB |
| Receptacle Type | USB |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 100 V AC - 132 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 24 V DC |
| Size / Dimensions | |
|---|---|
| Mount Type | Wall-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | Legrand Group |
| Cables | |
|---|---|
| Cord Length | 6 ft |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
