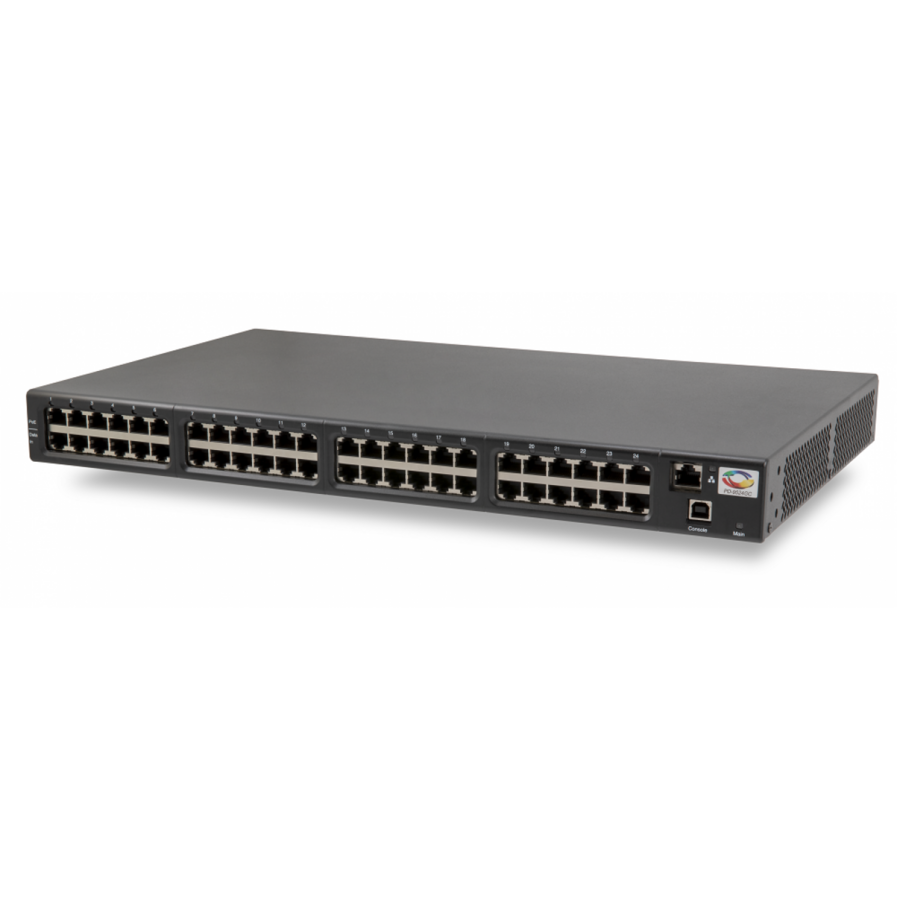

The twenty four ports PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9524GC is designed specifically to power IEEE 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals with 60W of power.
- Safety: UL/EN/IEC 60950-1 (Ed.2)
- EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI
- Regulatory compliance: IEEE 802.3bt, IEEE 802.3af/at, RoHS Compliant and CE
- Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
- Data rates: 10/100/1000 Mbps
- Power input: AC and DC
- Number of ports: 24
- PoE output: 60W per port
| Brand | |
|---|---|
| Brand | Microchip Technology Inc. |
| Power & Battery | |
|---|---|
| Input Voltage | 55 V DC |
| Maximum Output Power | 60 W |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack Mountable |
| General Features | |
|---|---|
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Manufacturer | Microchip Technology Inc. |
| Misc Ports | |
|---|---|
| Output Ports | 24 x Gigabit PoE |
| Input Ports | 24 x 10/100/1000Base-T |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | PD-9524GC PoE Injector |
