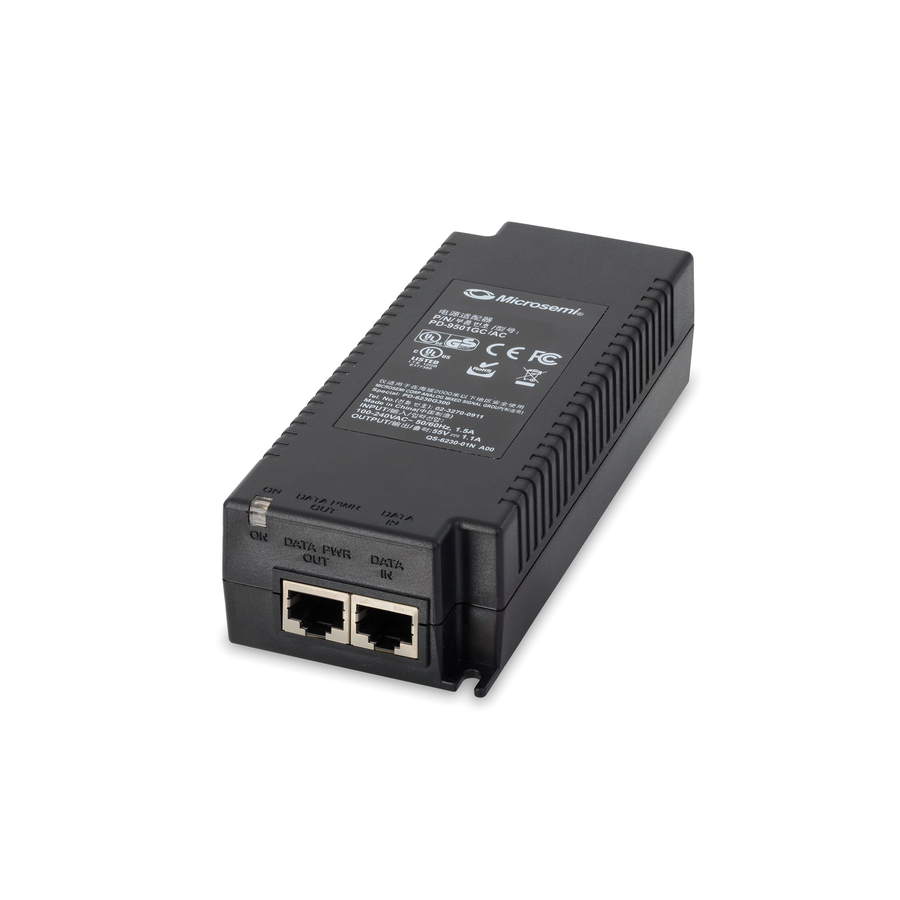

Microchip's PD-9501GC is a single-port solution for remote powering of current as well as emerging high-power applications. The PD-9501GC is designed specifically to power IEEE 802.11n and IEEE 802.3bt access points, Pan-Tilt-Zoom (PTZ) and dome cameras, IP videophones, thin clients and other high-power Ethernet end terminals with 60W of power and it is als backwards compatible and safe to use with any IEEE 802.3af/at terminals such as VoIP phones, IP cameras and wireless LAN access points. It can power both existing 10/100Base-T devices and Gigabit devices such as wireless IEEE 802.11n access points. The PD-9501GC provides power on all 4-pairs while being backwards compatible to IEEE 802.3af and IEEE 802.3at powered devices.
- Number of ports: 1
- PoE output: 60W
- Data rates: 10/100/1000 Mbps
- Power input: AC
- Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
- Regulatory compliance: IEEE 802.3bt (PoE), RoHS Compliant, WEEE Compliant, CE
- EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI
- Safety: UL/EN/IEC 60950-1 (Ed.2)
- Compact design
| Brand | |
|---|---|
| Brand | Microchip Technology Inc. |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Maximum Input Current | 1.50 A |
| Maximum Output Power | 60 W |
| General Features | |
|---|---|
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Manufacturer | Microchip Technology Inc. |
| Misc Ports | |
|---|---|
| Output Ports | 1 x RJ-45 |
| Input Ports | 1 x Ethernet |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
