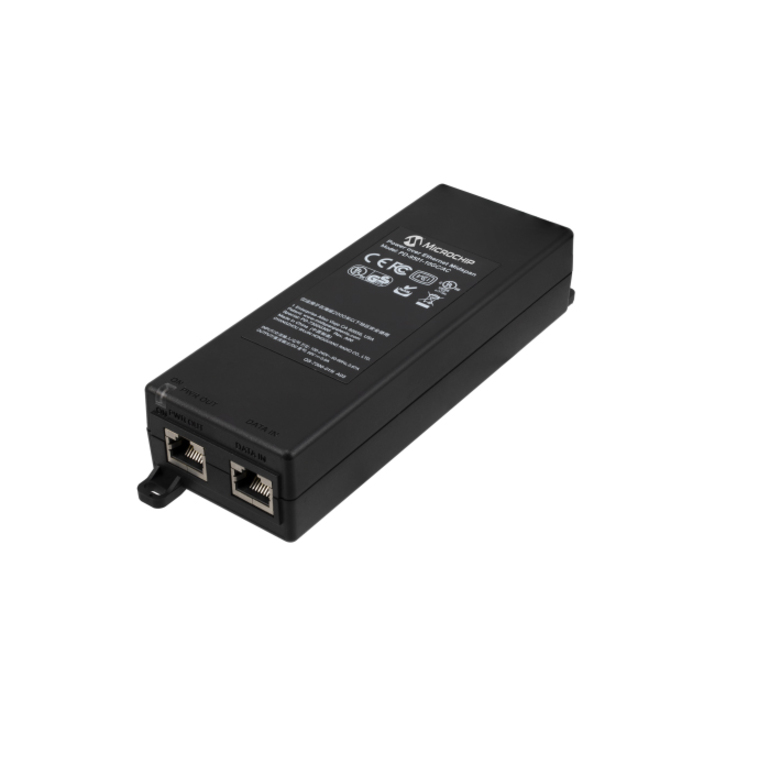

The Microchip PD-9501-10GC is a single-port, high-power solution for remote powering of current and emerging high-power indoor applications. Generating 60W over 4 pair, the PD-9501-10GC enables remote power for a new range of applications including 802.11ac access points, Pan-Tilt Zoom (PTZ) cameras and videophones.
PD-9501-10GC complies with IEEE 802.3bt Type 3 PoE standard and is backward compat-ible to IEEE 802.3af/at standard. It can power both existing 10/100/1000Base-T network devices and emerging wireless 10 Gbps devices such as wireless IEEE 802.11ac access points.
- Number of ports: 1
- PoE output: 60W
- Data rates: 10/100/1000 Mbps & 10G
- Power input: AC
- Power cord options: US, EU (Europe), UK, EK (Europe and UK), BR (Brazil), AU (Australia), JP (Japan)
- Regulatory compliance: IEEE 802.3bt Type 3 (PoE), RoHS compliant, WEEE compliant, CE
- EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI
- Safety: UL/EN/IEC 60950-1 (Ed.2)
| Brand | |
|---|---|
| Brand | Microchip Technology Inc. |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Maximum Input Current | 1.50 A |
| Maximum Output Power | 60 W |
| General Features | |
|---|---|
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Manufacturer | Microchip Technology Inc. |
| Misc Ports | |
|---|---|
| Output Ports | 1 x RJ-45 |
| Input Ports | 1 x Ethernet |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
