Microchip's PD-9000G Family is designed specifically to power IEEE 802.11n and IEEE 802.3at access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals.
The PD-9000G Family includes 6, 12 and 24 port models, which are backward compatible and safe to use with any 802.3af terminal such as VoIP phones, IP cameras and WLAN access points.
With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network. For secure remote management, all PD-9000G models include PowerView Pro management platform.
- Legacy Power over Ethernet (PoE) support
- Plug-and-play installation
- Safe and reliable power over existing Ethernet infrastructure
- PowerView Pro secure, remote SNMPv3 and cloud-based management software
- Power redundancy: Mutual midspan-to-midspan backup
- High power over two pairs; 36W per port
| Brand | |
|---|---|
| Brand | Microchip Technology Inc. |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Maximum Output Voltage | 55 V DC |
| Maximum Input Current | 5.50 A |
| Maximum Output Power | 30 W |
| General Features | |
|---|---|
| Maximum Frequency | 50 Hz |
| Manufacturer | Microchip Technology Inc. |
| Misc Ports | |
|---|---|
| Output Ports | 12 x 10/100/1000Base-T |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|

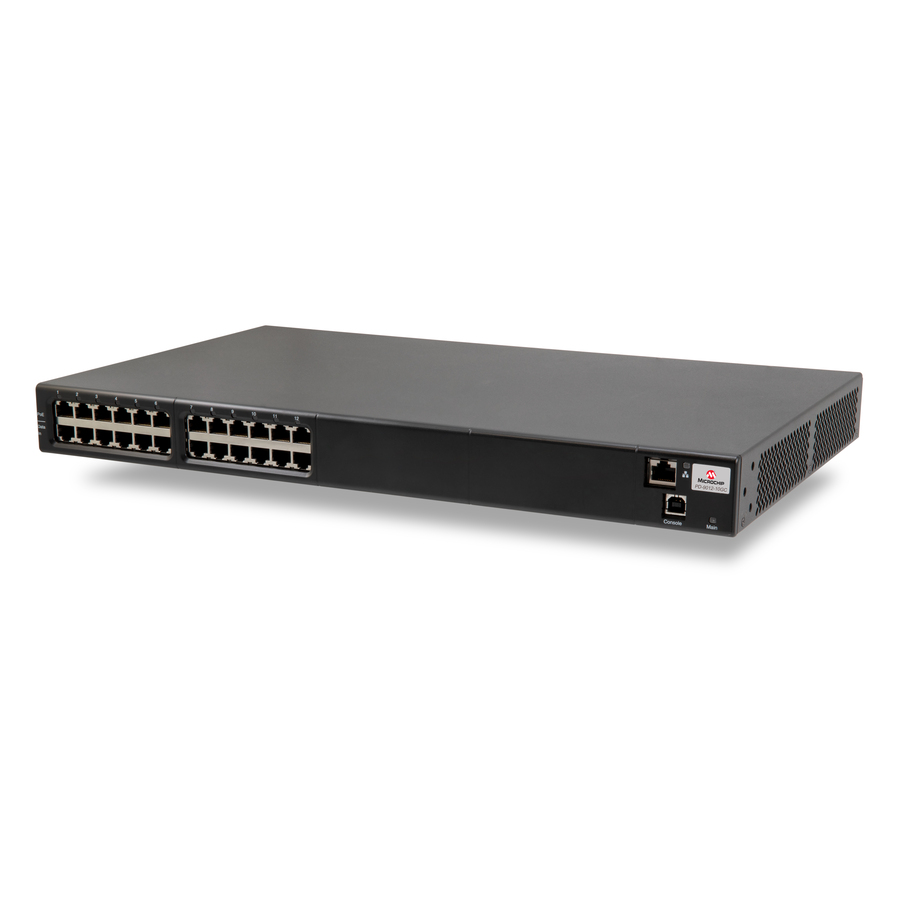

| Product Name | PD-9012G/ACDC/M 12-port Power over Ethernet Midspan |
