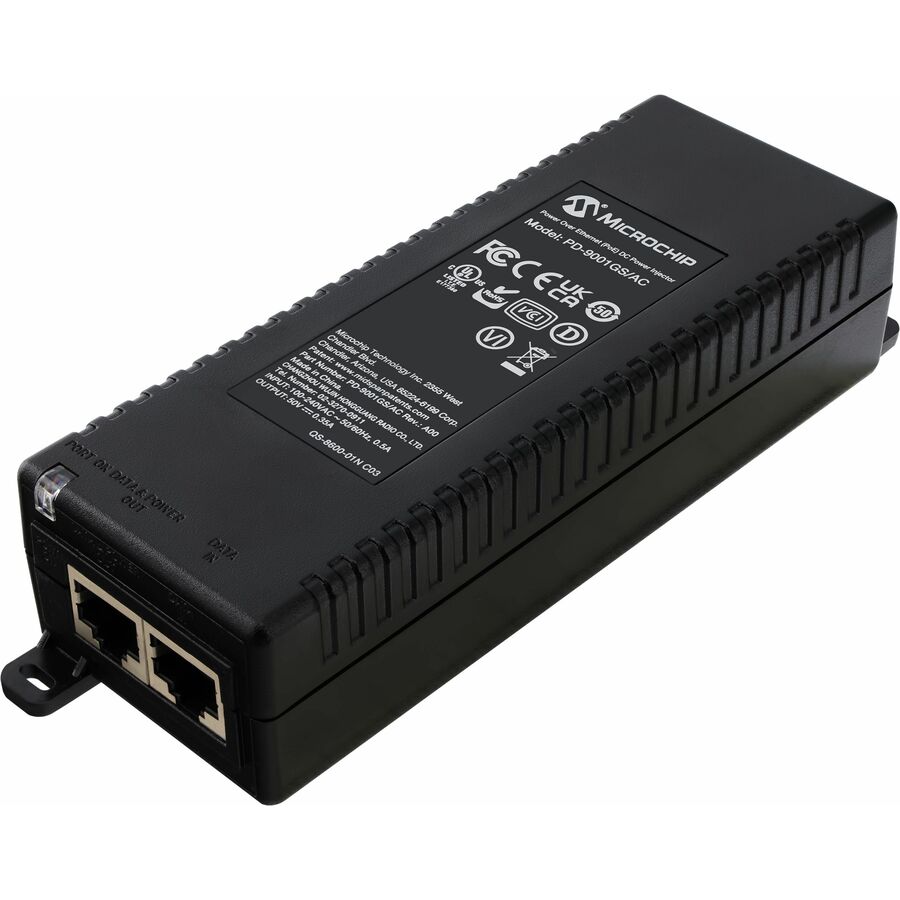

The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power applications. The PD-9001GS enables remote power for a new range of applications including 802.11n access points, pan-tilt zoom (PTZ) cameras and other IP terminals. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both 10/100Base-T network devices and 1000Base-T devices. The midspan is designed for industrial applications and outdoor applications from temperature point of view.
- Number of ports: 1
- PoE output: 30W
- Data rates: 10/100/1000 Mbps
- Power input: AC
- Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
- Complies with the latest EMI and safety standards
- Compact design
| Brand | |
|---|---|
| Brand | Microchip Technology Inc. |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Maximum Output Voltage | 55 V DC |
| Maximum Input Current | 670 mA |
| Maximum Output Power | 30 W |
| General Features | |
|---|---|
| Manufacturer | Microchip Technology Inc. |
| Misc Ports | |
|---|---|
| Output Ports | 1 x PoE |
| Input Ports | 1 x RJ-45 |
| Compliance & Certification | |
|---|---|
| Energy Star | Yes |
