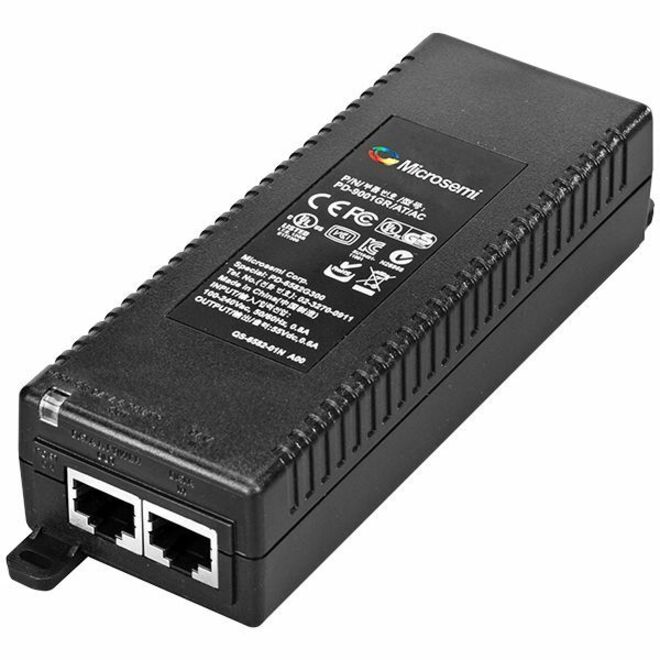

Microchip's PD-9001GR is a single-port, high-power solution for remote powering of current and emerging high-power applications. Generating up to 30W, the PD-9001GR enables remote power for applications including 802.11n access points, Pan-Tilt-Zoom (PTZ) cameras and video phones. It complies to the IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both existing 10/100Base-T network devices and emerging wireless 1000Base-T devices such as WiMAX and wireless IEEE 802.11n access points.
| Brand | |
|---|---|
| Brand | Microchip Technology Inc. |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Maximum Output Voltage | 55 V DC |
| Maximum Input Current | 800 mA |
| Maximum Output Power | 30 W |
| General Features | |
|---|---|
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Manufacturer | Microchip Technology Inc. |
| Misc Ports | |
|---|---|
| Output Ports | 1 x 10/100/1000Base-T |
| Input Ports | 1 x 10/100/1000Base-T |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
Microchip 1-Port 30W 802.3at PoE Injector - 120 V AC, 230 V AC Input - 55 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-T Output Port(s) - 30 W
