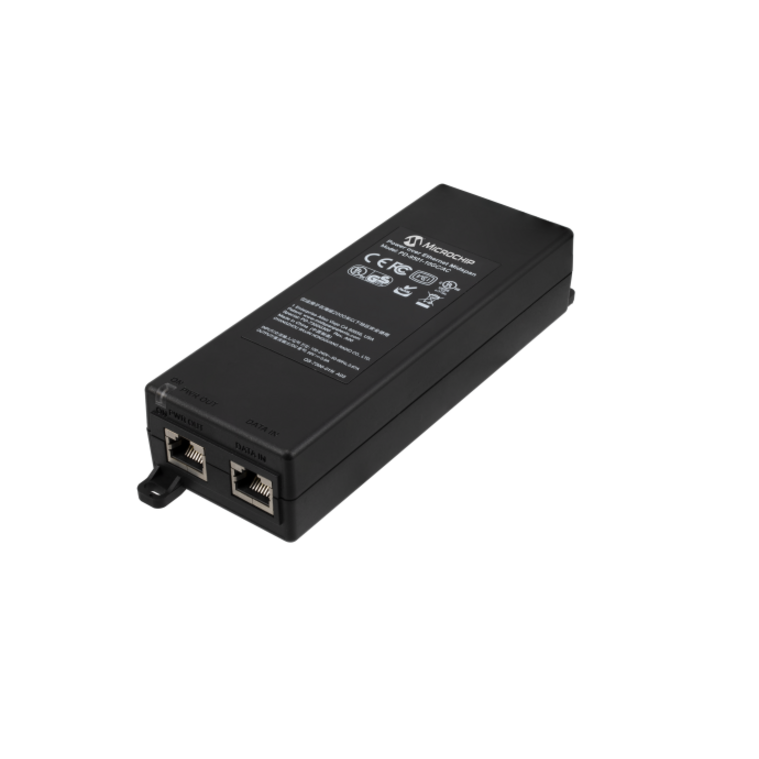

Microchip's single port 10Gbps PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power indoor applications. The PD-9001-10GC enables remote power for a new range of applications including 802.11ac access points, pan-tilt-zoom (PTZ) cameras and videophones.
It is backward compatible to IEEE 802.3af PoE standard. It can power both existing 10/100/1000Base-T network devices and emerging wireless 10G devices such as wireless IEEE 802.11ac access points.
- IEEE 802.3at compliant
- IEEE 802.3af backward compatible
- Guaranteed output power - 30W
- Supports 10/100/1000Base-T & 10 Gbps
- Safe: low power devices receive only the power they need
- Automatic detection and protection of non-standard Ethernet terminals
- Compact design fits easily in WLAN access point and IP cameras installation
| Brand | |
|---|---|
| Brand | Microchip Technology Inc. |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Maximum Output Voltage | 55 V DC |
| Maximum Input Current | 1.50 A |
| Maximum Output Power | 30 W |
| General Features | |
|---|---|
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Manufacturer | Microchip Technology Inc. |
| Misc Ports | |
|---|---|
| Output Ports | 1 x PoE |
| Input Ports | 1 x 10/100/1000Base-T |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
