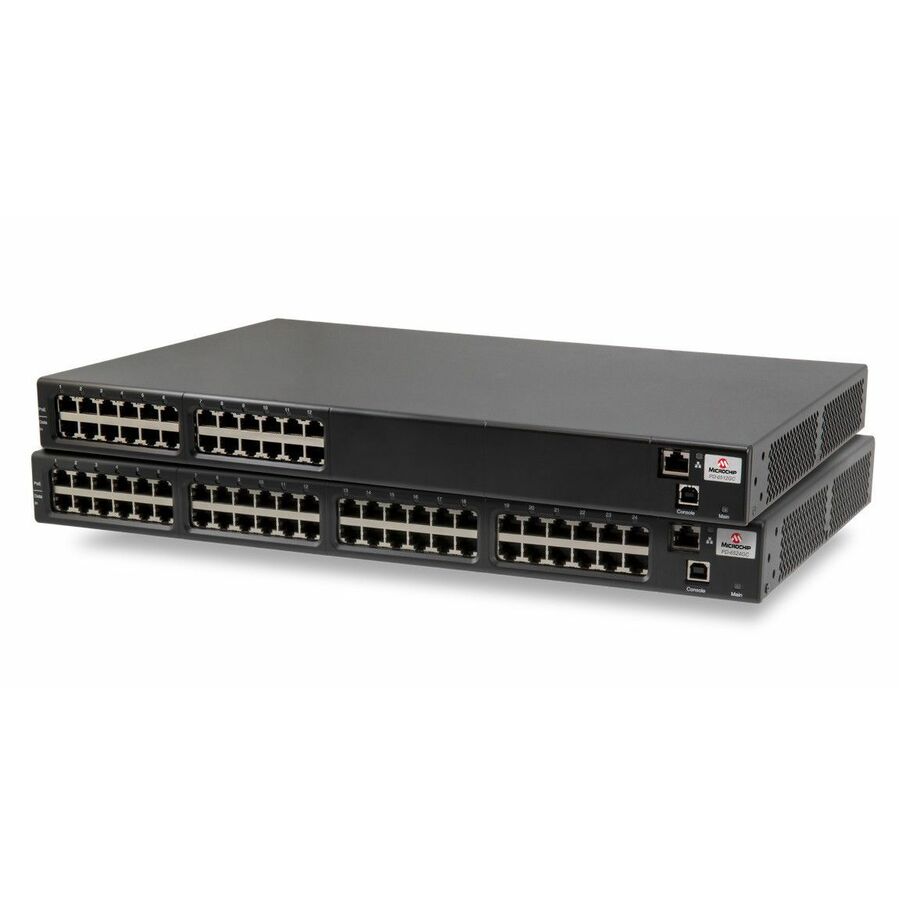

Microchip's twenty four ports PoE midspan provides up to 15.4 Watts of power over Ethernet and offers a IEEE 802.3af-compliant solution to IP telephones, wireless LAN access points, security network cameras and many other types of data terminals over standard Ethernet data cables, leaving network infrastructure completely unaltered. With the midspan's plug-and-play installation, it can be easily and cost-effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network.
- Number of ports: 24
- PoE output: 15.4W per port
- Data rates: 10/100/1000 Mbps
- Power input: AC
- Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
- Regulatory compliance: IEEE 802.3af (PoE), RoHS compliant, WEEE compliant, CE
- Complies with the latest EMI and safety standards
| Brand | |
|---|---|
| Brand | Microchip Technology Inc. |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Maximum Input Current | 5.50 A |
| Minimum Input Current | 2.75 A |
| Minimum Output Voltage | 52 V DC |
| Maximum Output Power | 15.40 W |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack Mountable |
| General Features | |
|---|---|
| Manufacturer | Microchip Technology Inc. |
| Misc Ports | |
|---|---|
| Output Ports | 12 x 10/100/1000Base-T |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
