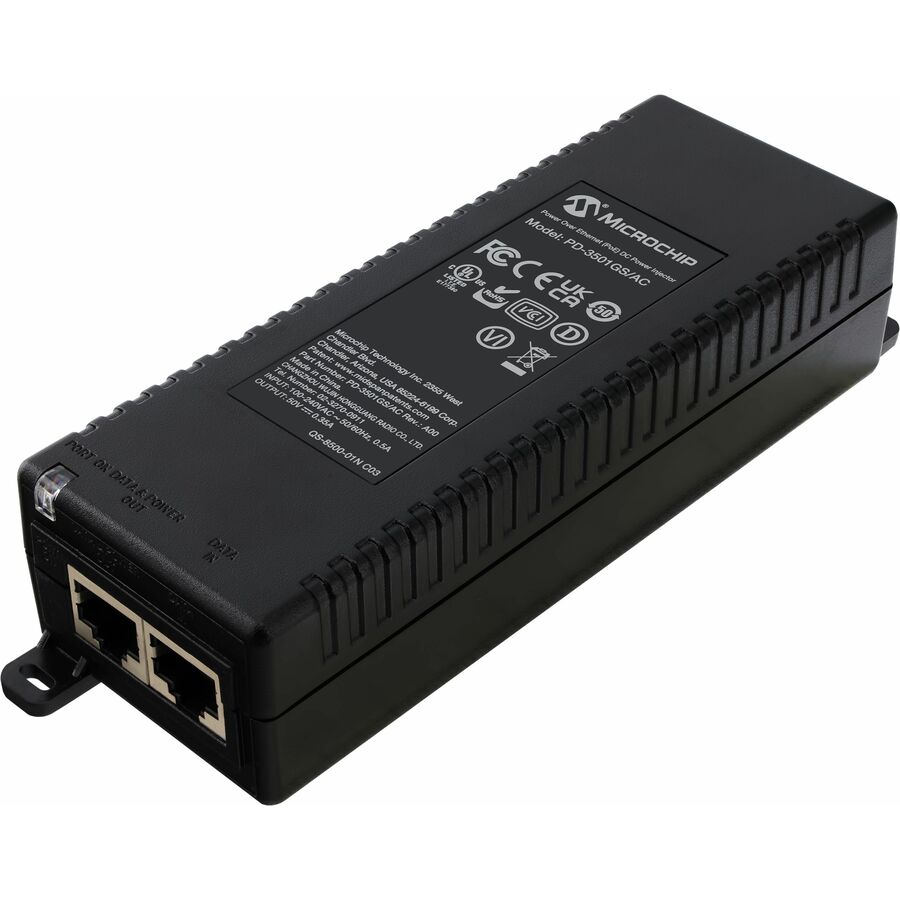

The single port PoE midspan offers a compact and cost effective, IEEE 802.3af compliant solution for powering IP phones, WLAN access points, network cameras and other IP terminal devices. The compact and affordable PD- 3501GS provides reliable power over standard Ethernet cables, leaving existing network infrastructure completely unaltered. With plug-and-play installation, the PD-3501GS can be easily and cost effectively implemented leveraging the existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
- Number of ports: 1
- PoE output: 15.4W
- Data rates: 10/100/1000 Mbps
- Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
- Regulatory compliance: IEEE 802.3af(PoE), RoHS Compliant, WEEE Compliant, CE
- Complies with the latest EMI and safety standards
- Compact design
| Brand | |
|---|---|
| Brand | Microchip Technology Inc. |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Maximum Output Voltage | 50 V DC |
| Maximum Input Current | 500 mA |
| Maximum Output Power | 15.40 W |
| General Features | |
|---|---|
| Manufacturer | Microchip Technology Inc. |
| Misc Ports | |
|---|---|
| Output Ports | 1 x PoE |
| Input Ports | 1 x RJ-45 |
| Compliance & Certification | |
|---|---|
| Energy Star | Yes |
