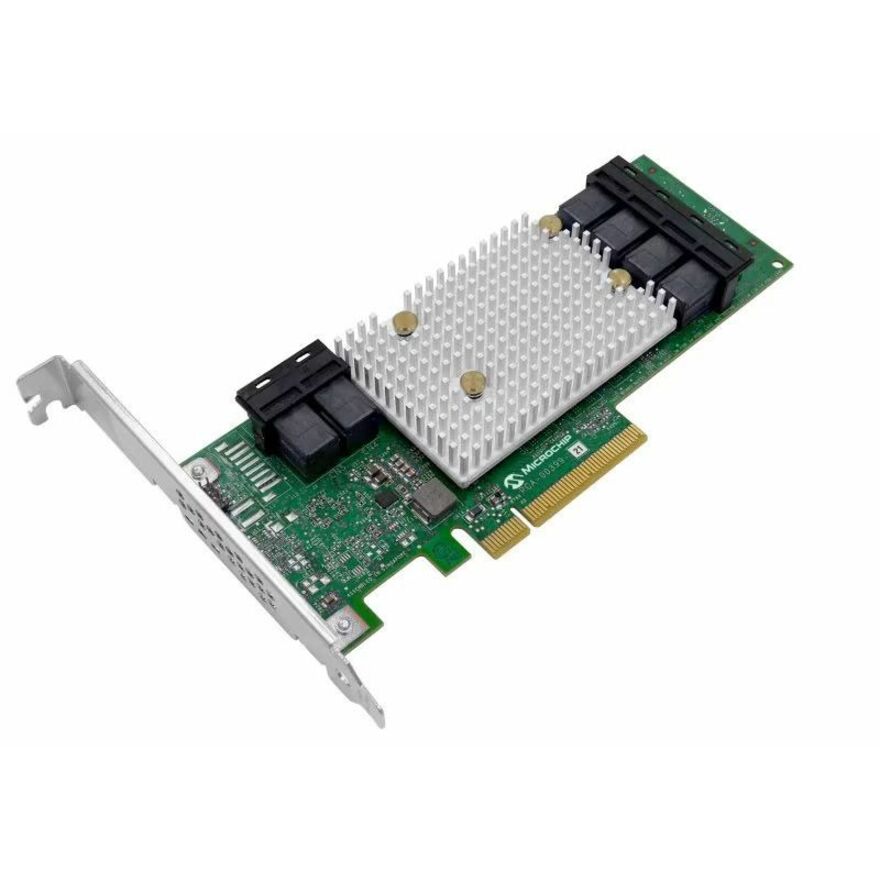

The 12 Gbps Adaptec SmartHBA 2100-24i Host Bus Adapter has 24 internal SAS/SATA ports in a x8 PCIe Gen 3 low-profile, MD2 form factor and uniquely combines the capabilities of a full-featured host bus adapter (HBA) with those of a basic RAID adapter using hardware RAID. Built on the Microchip SmartIOC 2100 SAS/SATA protocol controller, HBA 2100 adapters can aggregate the performance of devices to the limits of the PCIe Gen 3 host bus at 6.6 Gbps, and achieve up to 1.7M IOPS without additional overhead or latency. The HBA 2100 adapters also have 40 percent power savings compared to previous generations, and significant power advantages versus competing solutions.
The HBA 2100, with its broad operating system support and ecosystem compatibility, is easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line. HBA 2100 adapters are ideal solutions that support SAS/SATA HDDs, tape devices, and SSDs.
- BMC support
- Enclosure management: SES-2, SES-3; SFF-8485, SGPIO; SFF-8489, IBPI
- MPIO support
- Multi-initiator (host)/clustering for SAS (HBA devices only)
- Hot plug drive support
- S.M.A.R.T.
- TLR
- SATA NCQ
- Multi-LUN support
- SAS expander support
- Hardware RAID level 0,1,10,5 support
- Support for up to 32 drives in RAID arrays
- Support for up to 256 SAS/SATA target devices (238 SSD/HDDs maximum support and remainder are reserved for expanders and enclosure management)
- Key Software Features
- Open Source Management tools
- CPU Platform Diversity -Support for Intel, AMD, and Cavium ThunderX2 (ARM)
- 12 Gbps SAS data rates using mini-SAS HD connectors
- Proven compatibility with existing Adaptec Smart solutions, multiple operating systems, servers, enclosures, SSDs, HDDs, and LTO tape drives
- Familiar GUI, CLI, and pre-boot tools ensures consistent performance and user experience across all products
- 28 nm SmartIOC 2100 SAS/ SATA protocol controller
- +1.7M 4K random read IOPS; 40% lower power than previous generations
- 24 internal na
| Brand | |
|---|---|
| Brand | Microchip Technology Inc. |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 5 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Controller Type | 12Gb/s SAS |
| Manufacturer | Microchip Technology Inc. |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 3.0 x8 |
| SAS Connector Details | 6 x SFF-8643 |
| Number of SAS Ports (Internal) | 24 |
| Total Number of SAS Ports | 24 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
