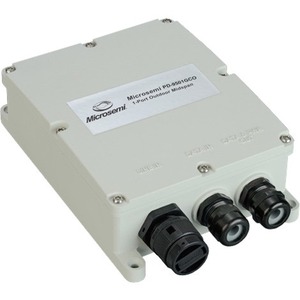

Microchip's single-port PoE midspan offers a cost effective, IEEE 802.3bt Type3 compliant solution and Pre-bt support for outdoor installations, guaranteeing 60 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. The PD-9501GCO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
- Number of ports: 1
- PoE output: 60W
- Data rates: 10/100/1000 Mbps
- Power input: AC
- Outdoor rated: IP67
- Regulatory compliance: IEEE 802.3bt type 3, IEEE 802.3af/at (PoE), RoHS Compliant, WEEE Compliant, CE
- EMI: FCC Part 15, Class B, EN 55032 Class B (Emissions), EN 55024, EN61000-4-5: Class 5 (AC lines 6kV CM/DM) VCCI
- Surge Protection: Design to meets Surge Protection as specified in: GR-1089-CORE Issue 4 ITU-T K.21 enhanced surge level protection (6 kV on Data and AC lines)
- Safety: UL/IEC/EN 60950-1 (ed.2), UL 60950-22
- Other standards: Dust proof and water resistance: EN60529, Approvals Level IP67; NEMA 250, Level 4X ASTM B-117 Corrosion Resistance
| Brand | |
|---|---|
| Brand | Microchip Technology Inc. |
| Power & Battery | |
|---|---|
| Maximum Output Voltage | 54 V DC |
| Maximum Output Power | 60 W |
| Size / Dimensions | |
|---|---|
| Form Factor | External |
| General Features | |
|---|---|
| Protection Type | Surge Protection |
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Manufacturer | Microchip Technology Inc. |
| Misc Ports | |
|---|---|
| Output Ports | 1 x Gigabit PoE |
| Miscellaneous | |
|---|---|
| Product Name | PD-9501GCO PoE Injector |
