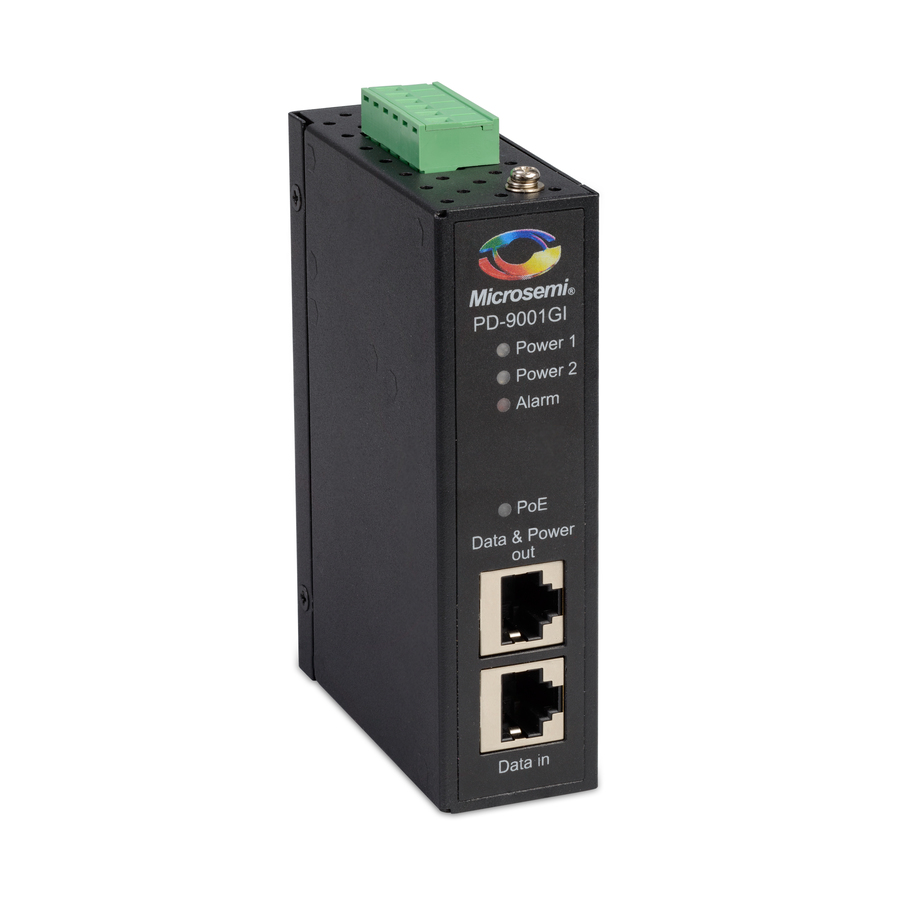

Microchip's PD-9001GI is a single port, high-power solution for remote powering of current and emerging high power applications. Generating up to 30W, the 9001GI enables remote power for a new range of applications including 802.11n Access Points, pan-tilt zoom (PTZ) cameras and other IP terminals. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE802.3af. It can power both 10/100Base-T network devices and 1000Base-T devices. The 9001GI is designed for industrial applications and outdoor applications from temperature point of view. Comments: Microsemi to be replaced by Microchip
Microchip's PD-9001GI is a single port, high-power solution for remote powering of current and emerging high power applications. Generating up to 30W, the 9001GI enables remote power for a new range of applications including 802.11n Access Points, pan-tilt zoom (PTZ) cameras and other IP terminals. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE802.3af. It can power both 10/100Base-T network devices and 1000Base-T devices. The 9001GI is designed for industrial applications and outdoor applications from temperature point of view. Comments: Microsemi to be replaced by Microchip
| Brand | |
|---|---|
| Brand | Microchip Technology Inc. |
| Power & Battery | |
|---|---|
| Input Voltage | 60 V DC |
| Maximum Output Voltage | 50 V DC |
| Maximum Input Current | 2 A |
| Maximum Output Power | 30 W |
| Size / Dimensions | |
|---|---|
| Form Factor | External |
| Mount Type | DIN Rail/Wall Mountable |
| General Features | |
|---|---|
| Manufacturer | Microchip Technology Inc. |
| Misc Ports | |
|---|---|
| Output Ports | 1 x 10/100/1000Base-T |
| Input Ports | 1 x 10/100/1000Base-T |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
