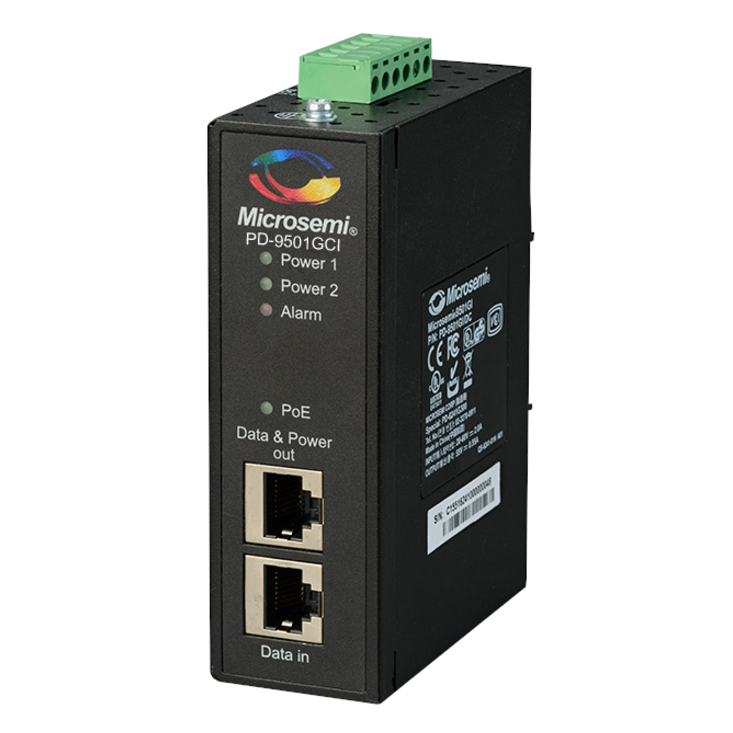

The Microchip PD-9501GCI is a single-port, high-power solution for remote powering of current and emerging high-power indoor applications. Generating 60W, the 9501GCI enables remote power for a new range of applications including wireless access points, Pan-Tilt Zoom (PTZ) cameras and other IP terminals. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both existing 10/100/1000Base-T network devices and 1000BaseT devices such as wireless IEEE wireless access points.
| Brand | |
|---|---|
| Brand | Microchip Technology Inc. |
| Power & Battery | |
|---|---|
| Input Voltage | 60 V DC |
| Maximum Output Voltage | 55 V DC |
| Maximum Input Current | 4 A |
| Maximum Output Power | 60 W |
| General Features | |
|---|---|
| Manufacturer | Microchip Technology Inc. |
| Misc Ports | |
|---|---|
| Output Ports | 1 x PoE |
| Input Ports | 1 x Gigabit Ethernet |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
