Superior IP-based digital signage and video walls

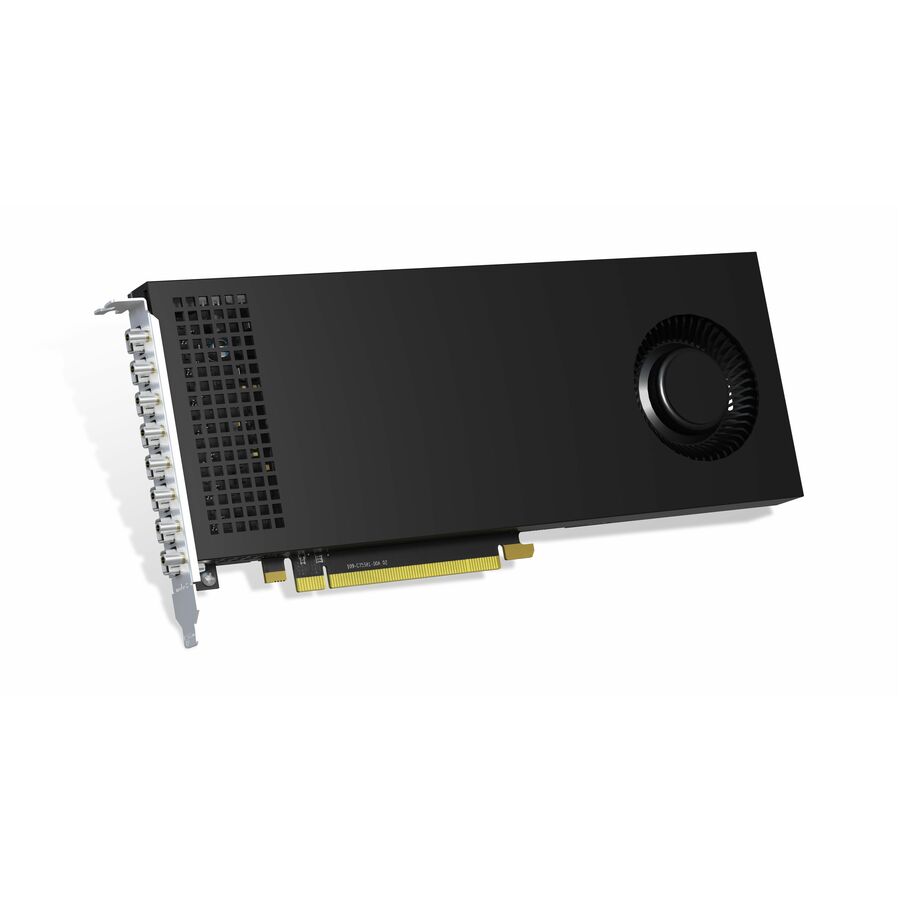

Drive eight 5Kp60 synchronized high-resolution displays or projectors from a single Matrox LUMA Pro Series graphics card. A single-slot PCIe® 4.0 x 16 card with eight native Mini DisplayPort™ 2.0 connectors, A380 Octal delivers extreme performance for multi-display video wall and digital signage applications. For OEMs, system integrators, AV installers, and developers looking to create custom control functions, we also offer a complete range of video wall software, APIs, SDKs, and libraries. Matrox LUMA Pro Series is powered by Intel® Arc™ graphics. TAA compliant sku available.
Drive multi-display 5K HDR video wall applications
LUMA Pro A380 Octal allows you to create powerful IP-based video walls with fewer components and smaller systems with the built-in MURA SDK media codec engine.
High-density performance with a single slot
The LUMA Pro A380 Octal sets a new standard for high-density applications, delivering eight outputs out of a single-slot card. This design means vendors can install multiple cards in one system, ultimately creating powerful systems with a smaller system footprint. The A380 Octal provides a unique and efficient solution that is ideal for high-density applications.
Perfect synchronization. Smooth image display.
Drive up to sixteen synchronized displays and reduce tearing by framelocking up to two LUMA Pro A380 Octal cards together using board-to-board framelock cables. Also, save slot space-a separate card isn't needed for the synchronization.
Advanced capabilities
With up to 12 GB of graphics memory, A380 Octal graphics card brings superior video playback and performance to a wide variety of video wall applications. Support for Microsoft® DirectX® 12 Ultimate, OpenGL® 4.6, OpenCL™ 3.0, Vulkan® 1.3, Intel® oneAPI Video Processing Library (oneVPL), and OpenVINO™ enables you to run the latest professional applications. Finally, secure connectors on the boards prevent the risk of loose cabling.
HDCP compliant
LUMA Pro Series is designed for a range of multi-display desktop applications in control rooms, enterprises, industries, government, military, pro AV, digital signage, security, and more. HDCP compliance makes it possible to display protected content on video walls, or to capture and display protected content when paired with Matrox Mura C4Kcapture cards.
Long product lifecycle
Benefit from a product longevity of five years and dedicated customer support. A380 Octal carries a three-year warranty and has an available extended warranty to ensure maximum protection.
Complete your setup
From cables and adapters to shelves and brackets, Matrox Video provides a range of hardware accessories that make connecting, installing, and securing your product quick and easy.
- 5Kp60 resolution support
- Octal output
- HDCP compliant
- Mini DisplayPort 2.0
- Single slot high density
- 3-year warranty
- Synchronized video outputs
- Custom control
| Brand | |
|---|---|
| Brand | Matrox |
| GPU / Graphics | |
|---|---|
| Number of GPUs | 2 |
| Bus Width | 36 bit |
| API Supported | Open VINO |
| Memory / RAM | |
|---|---|
| Standard Memory | 12 GB |
| Memory Technology | GDDR6 |
| Screen / Display | |
|---|---|
| Maximum Digital Display Resol | 5120 x 2880 |
| Power & Battery | |
|---|---|
| Power Connector | 1x 6-pin |
| DisplayPort | |
|---|---|
| Number of Mini DisplayPort Ou | 8 |
| Mini DisplayPort | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Slot Space Required | Single |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | A380E |
| Chipset Line | Arc |
| Chipset Series | A |
| Cooler Type | Active Cooler |
| Manufacturer | Matrox |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 4.0 x16 |
