- Full-sized 3G/HDSDI (BNC) output
- 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
- Interchangeable M12 lens mount includes stock 3.6mm lens (72°H. AOV)
- IP67-rated weatherproof housing, wide lens cap for flexible wide shots
- Full-HD resolutions: 1920 x 1080p, 1920 x 1080i and 1280 x 720p
- Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
- Remote adjustable through RS485 (Visca) or OSD menu joystick
- Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more

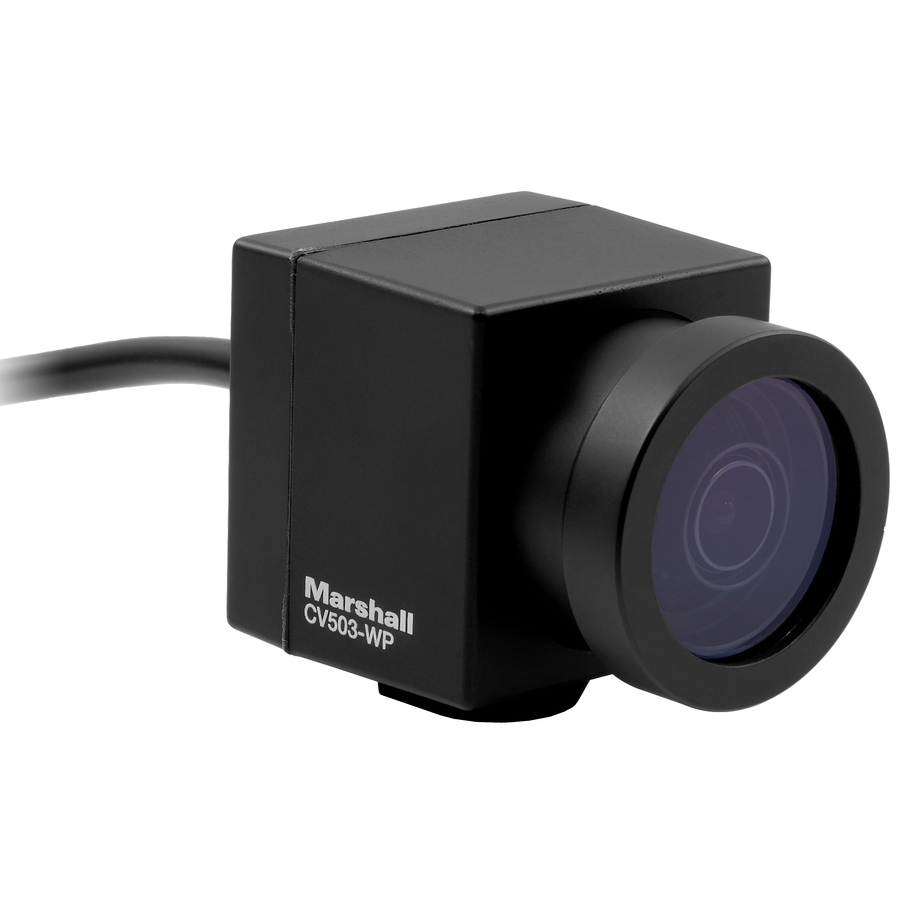

The Marshall CV503-WP Weatherproof Miniature HD Camera is the professional solution for capturing crisp video in true color at outdoor broadcast events and AV applications where weather becomes a factor. The CV503-WP offers interchangeable lenses, remote adjustable settings, and protection from the elements in a compact IP67-rated housing.
Built around a next generation 2.5-Megapixel, 1/2.86-inch sensor, the CV503-WP delivers ultra-crisp, clear progressive video up to 1920x1080p at 60fps and interlaced 1920x1080i at 60fps.
The CV503-WP utilizes a flexible 10' (3m) weatherproof cable that carries video, control, and power to a full-sized 3G/HD-SDI (BNC) output, RS485 connection, and locking 12V power connector. The CV503's threaded M12 lens mount offers a wide range of prime lens options.
The CV503-WP can capture detailed shots from impossible angles, while maintaining an ultra-discreet presence. Remote adjustment of a wide range of picture settings including white balance, red/blue, exposure, gain control, pedestal (blacks), white clip, gamma, and more are delivered via common RS485 (Visca) or OSD menu joystick.
CV503-WP Applications:
The CV503-WP is suitable for use in outdoor broadcast events and Pro AV workflows including live broadcast productions, sportscast, newscast, reality television, concerts, corporate, government, military, house of worship, and many more.
