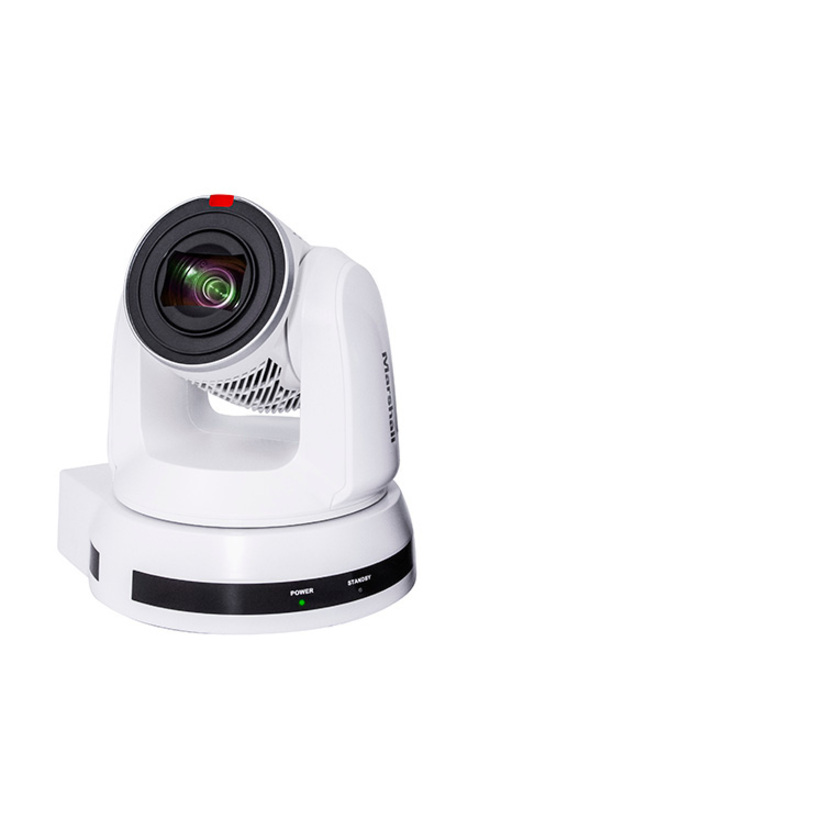

The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution.
High Performance Video Output
At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.
Versatile Camera Positioning
The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.
Simultaneous Networked and Streaming Outputs
Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.
Flexible Control Options
The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.Additionally, the CV630-IP is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.
- For remote surveillance needs, this network camera is best suited
- Up to 3840 x 2160 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 135 mm maximum focal length provides incredible detail and how effective is your network camera
- f/3.5 maximum aperture for better light absorption and dependable, better-quality results
- 30x optical zoom for bringing the subject closer for maximum surveillance efficiency
- 4K recording format for a lively video quality experience with maximum dependability
- Infrared night vision type effectively captures visible footage without requiring any external sources of light
- Varifocal lens type to ensure maximum surveillance dependability and optimal performance
- Enjoy HD quality videos on your HDTV with the HDMI port facility
| Brand | |
|---|---|
| Brand | Marshall Electronics |
| Screen / Display | |
|---|---|
| Color Supported | Color |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Optical Zoom | 30x |
| HD Recording | Yes |
| Lens Included | Yes |
| Night Vision Type | Infrared |
| Effective Camera Resolution | 8 Megapixel |
| Maximum Video Resolution | 3840 x 2160 |
| Image Sensor Type | CMOS |
| Minimum Focal Length | 4.60 mm |
| Maximum Focal Length | 135 mm |
| Minimum Aperture | f/1.6 |
| Maximum Aperture | f/3.5 |
| Lens Type | Varifocal |
| Recording Formats | 4K |
| Field of View | 70° |
| Size / Dimensions | |
|---|---|
| Mount Type | Ceiling Mount |
| General Features | |
|---|---|
| Remote Management | Yes |
| Video Formats | H.265 |
| Video Signal Format | NTSC |
| Analog Video Signal Format | 3G/HD-SDI |
| Manufacturer | Marshall Electronics, Inc |
