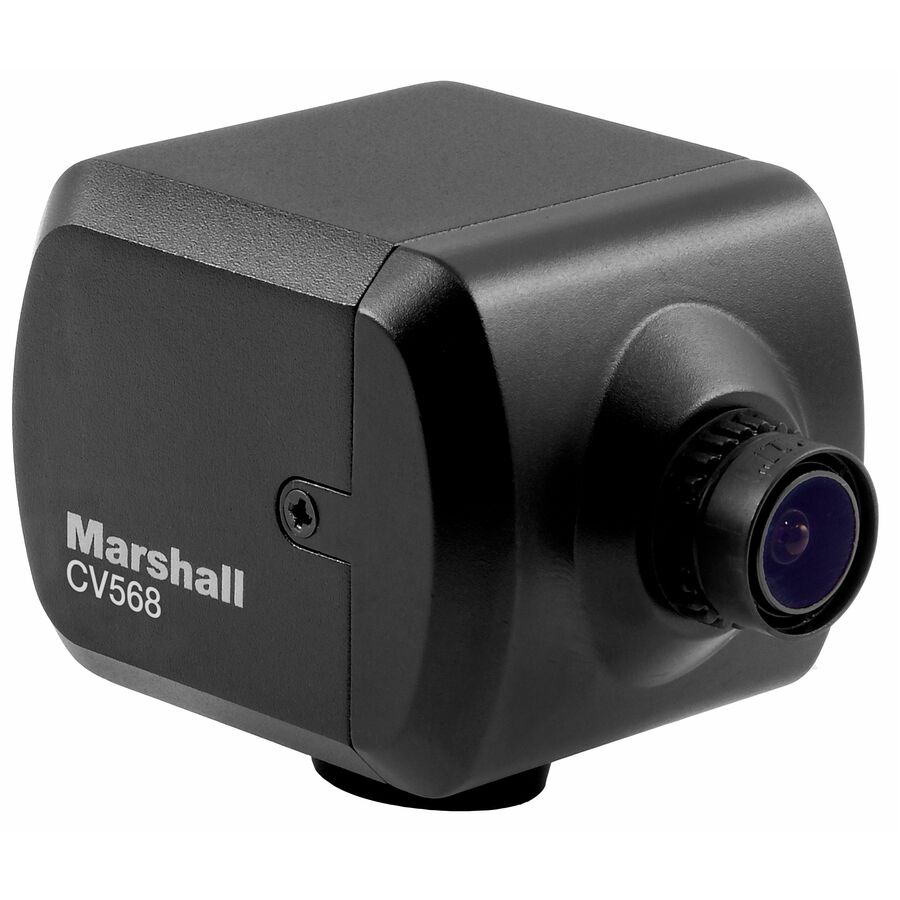

Miniature HD Camera with Global Shutter and Genlock Sync features. Built around an impressive 1/1.8" Sony global sensor with 25% larger pixels and interchangeable M12 lens mount (comes with a 4.4mm - 84°) make this the most capable POV camera in the miniature camera lineup.
- Sony 1/1.8" Exmor Global Sensor
- 3.2MP with 25% larger physical pixel size
- Simultaneous HDMI & 3GSDI outputs
- Interchangeable M12 Lenses - comes with a 4.4mm (84°)
- Global Shutter with Tri-Level Sync (Genlock)
- SMPTE 424M (2.97Gbps) - 3GSDI: 1920x1080p @ 50, 59.94, 60fps
- SMPTE 292M (1.485Gbps) - HDSDI: 1920x1080p @ 23.97, 24, 25, 29.97, 30fps 1920x1080i @ 50, 59.94, 60fps 1280x720p @ 50, 59.94, 60fps
- Image Mirror/Flip, Digital Zoom, Digital Image Stabilizer
- Microphone/Line Level input with 2.5V Mic bias
- Color Matrix to be offered as firmware update (coming soon)
- Environmental: -10°C ~ 50°C Power Consumption: 6W
| Brand | |
|---|---|
| Brand | Marshall Electronics |
| Power & Battery | |
|---|---|
| Maximum Power Consumption | 6 W |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Illumination | 0.5 lux |
| HD Recording | Yes |
| Lens Included | Yes |
| Effective Camera Resolution | 3.2 Megapixel |
| Maximum Video Resolution | 1920 x 1080 |
| Image Sensor Type | CMOS |
| Maximum Focal Length | 4.40 mm |
| Lens Type | Fixed |
| Recording Formats | Full HD |
| Maximum Frame Rate | 60 fps |
| Image Sensor Size | 1/1.8" |
| Lens Mount Type | M12-mount |
| Field of View | 84° angle of view |
| General Features | |
|---|---|
| Manufacturer | Marshall Electronics, Inc |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 14°F (-10°C) |
