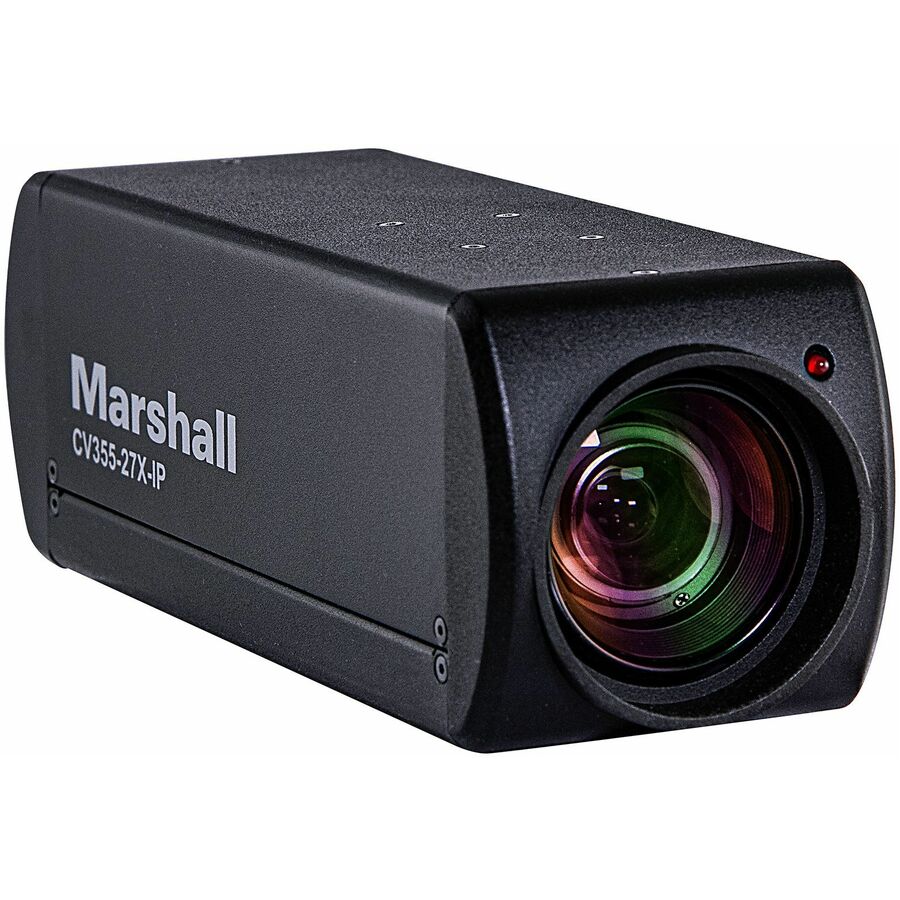

The CV355-27X-IP 27X optical zoom IP (HEVC/SRT) camera utilizes a professional grade 8.5-megapixel sensor to capture crisp HD video up to 1920x1080 at 60fps with support for all HD formats. Marshall's straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.
27X Optical Zoom
The 27X optical zoom block offers an extensive zoom range from 5.56mm to 150mm starting at 60° all the way out to 3.2° horizontal angle-of-view for maintaining image crispness from ultra-wide to long telephoto shots.
IP (HEVC/SRT) Workflow
SRT stands for Secure Reliable Transport. SRT is an open-source video transport protocol and technology stack that optimizes video streaming performance across unpredictable networks. With secure streams and simplified firewall traversal, SRT delivers the best quality video over the worst networks.
Low-light Sensitivity
The CV355-27X-IP operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.
IP (HEVC) Convenience
One cable to camera provides up to HD video, audio, control, and power (PoE) over one cable with IP (HEVC) and HDMI simultaneous outputs with stereo audio embedding.
- 8.5 Megapixel (1/2.5") HD sensor
- 27X Optical Zoom (5.5~150mm) - 60° AOV
- Supports:1092x1080p and 720p 60/59.94/50/30/29.97/25 fps, 1920x1080i 60/59.94/50 fps
- IP formats: SRT, DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, RTCP, RTP, TCP, UDP
- IP (HEVC/SRT) and HDMI simultaneous outputs
- Ethernet I/O supports video, control, audio and PoE over a single cable
- RS232 and 3.5mm audio input with passthrough
| Brand | |
|---|---|
| Brand | Marshall Electronics |
| Screen / Display | |
|---|---|
| Color Supported | Color |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Maximum Power Consumption | 15 W |
| Power Source Type | PoE |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Protocols | UDP |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Wide Dynamic Range (WDR) | Yes |
| Optical Zoom | 27x |
| HD Recording | Yes |
| Lens Included | Yes |
| Effective Camera Resolution | 8.5 Megapixel |
| Maximum Video Resolution | 1920 x 1080 |
| Image Sensor Type | IMX317 |
| Minimum Focal Length | 5.56 mm |
| Maximum Focal Length | 150.29 mm |
| Minimum Aperture | f/4.98 |
| Maximum Aperture | f/1.66 |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/1 Second |
| Lens Type | Varifocal |
| Recording Formats | Full HD |
| Maximum Frame Rate | 60 fps |
| Field of View | Wide Horizontal viewing angle=60° (+/-5%) Tele Horizontal viewing angle=3.2° (+/-5%) |
| Audio | |
|---|---|
| Audio Support | Yes |
| General Features | |
|---|---|
| Remote Management | Yes |
| Indoor/Outdoor | Indoor/Outdoor |
| Video Formats | H.264/AVC |
| Analog Video Signal Format | 3G-SDI |
| Manufacturer | Marshall Electronics, Inc |
