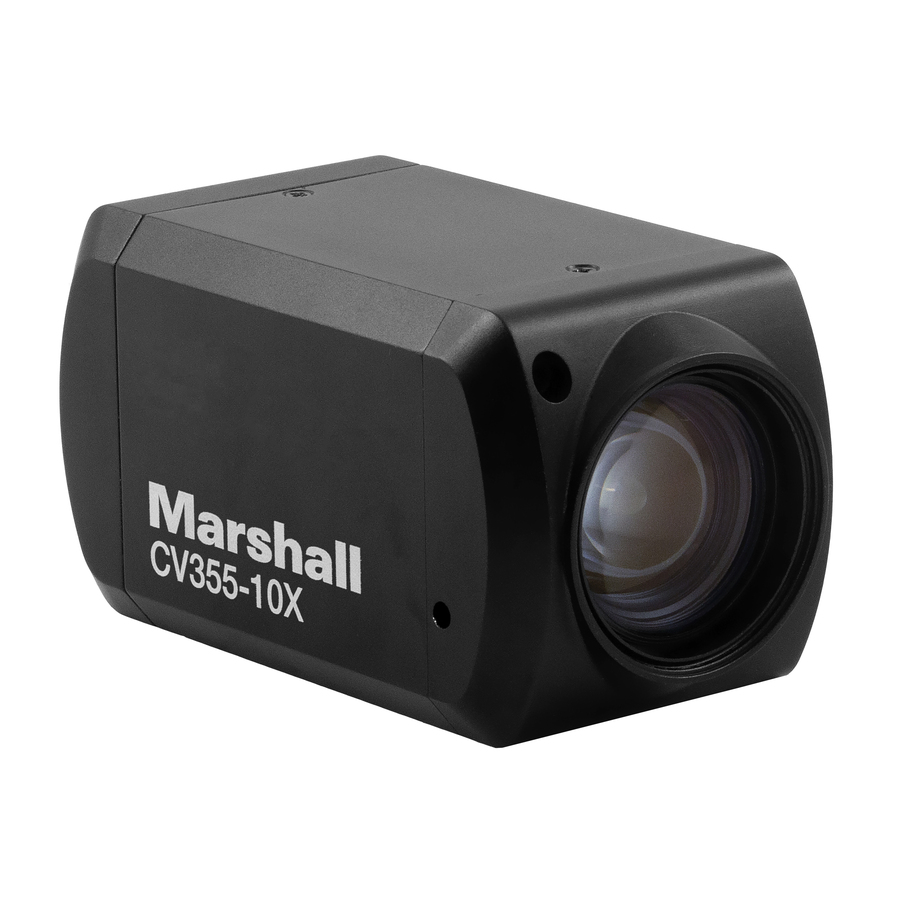

Marshall CV355-10X features 10x optical (12x digital) zoom block and flexible 3GSDI/HDMI simultaneous outputs with clear HD images up to 1920x1080 at 60fps. Remote adjust and match settings include Iris, WB, Exposure, Pedestal, and many more over long distances or during setup with capable Auto settings that track environmental fluctuations.
Unmatched Versatility
Presenting 3GSDI and HDMI simultaneous outputs, remote adjustable optical zoom range, and stereo audio embedding ability. CV355-10X delivers crystal-clear HD images up to 1920x1080p with all usable framerates on one model with ultra-low light ability and industry leading low noise performance.
Durable Build Construction
Constructed with a durable aluminum alloy body, full-sized BNC and HDMI connections, locking I/O cable carrying RS485/Audio/Power, and side impact protection panels to secure cable connections.
Universal Use Cases
Featuring a wide range of HD selections in 1920x1080i (interlaced), 1920x1080p and 1280x720p (progressive). Choose between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 frames per second to capture any workflow or application in every region of the world.
Broadcast Performance
Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.
- Low cost and affordable solution for surveillance applications
- Up to 1920 x 1080 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 47 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
- f/1.6 maximum aperture for reliable, detailed, and sharp output with added dependability
- 10x optical zoom ensures maximum surveillance productivity without compromising quality
- Full HD recording format for stunning, vivid video results with maximum efficiency
- Varifocal lens type to ensure maximum surveillance productivity with added feasibility
- HDMI effectively and conveniently transmits both audio and video signals with one single cable to ensure hassle-free connectivity
- Pole Mount mount type ensures optimal results and maximum convenience
| Brand | |
|---|---|
| Brand | Marshall Electronics |
| Screen / Display | |
|---|---|
| Color Supported | Color |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Camera / Webcam | |
|---|---|
| Optical Zoom | 10x |
| HD Recording | Yes |
| Lens Included | Yes |
| Effective Camera Resolution | 2.1 Megapixel |
| Maximum Video Resolution | 1920 x 1080 |
| Image Sensor Type | CMOS |
| Minimum Focal Length | 4.70 mm |
| Maximum Focal Length | 47 mm |
| Minimum Aperture | f/3 |
| Maximum Aperture | f/1.6 |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/25 Second |
| Lens Type | Varifocal |
| Recording Formats | Full HD |
| Maximum Frame Rate | 60 fps |
| Field of View | 60 degrees (wide end) to 6 degrees (tele end) |
| Size / Dimensions | |
|---|---|
| Mount Type | Wall Mount |
| General Features | |
|---|---|
| Remote Management | No |
| Video Signal Format | PAL |
| Analog Video Signal Format | 3G/HD-SDI |
| Manufacturer | Marshall Electronics, Inc |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 14°F (-10°C) |
| Environmentally Friendly | Yes |
