Easily distribute a single VGA audio and video signal to another location.

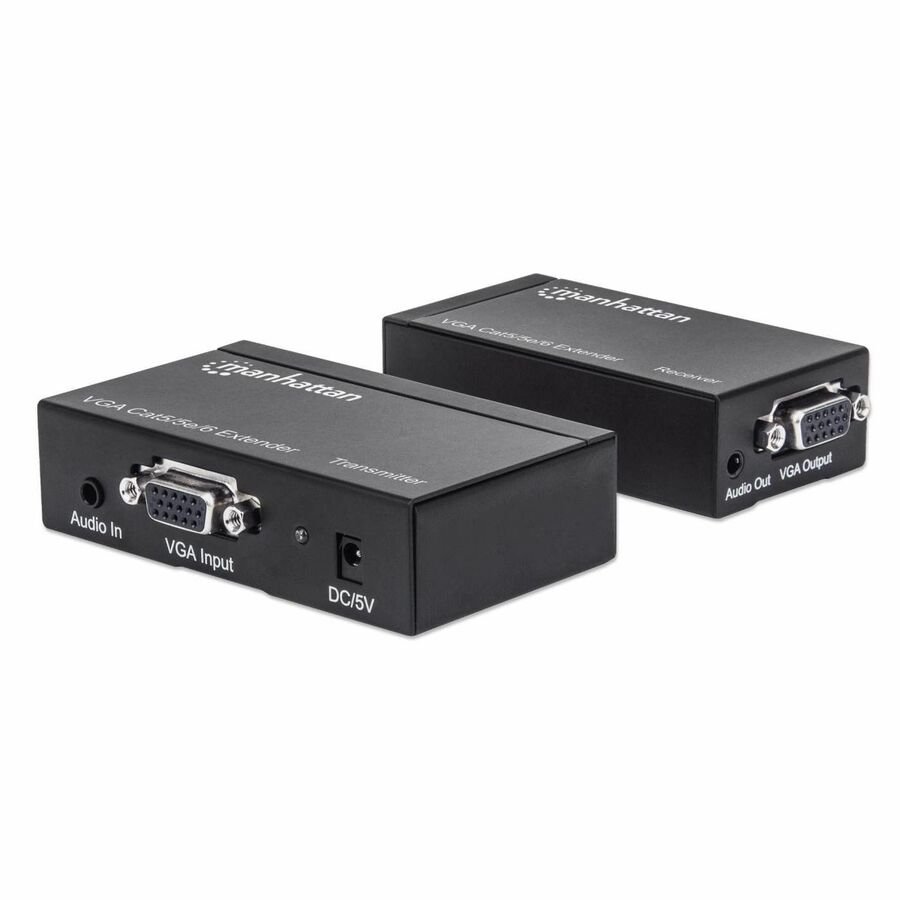

The Manhattan VGA Cat5/5e/6 Extender helps lengthen VGA and audio signals from a single source to remote locations using Cat5/5e/6 cables.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, home theater, conference rooms, business office and retail applications, the Manhattan VGA Cat5/5e/6 Extender allows the remote placement of a display and speaker set from a single desktop or notebook computer source 300 m (984 ft.) away. Manual Gain and Peak adjustments help fine-tune images for optimum signal clarity. Easy to install and readily available, Cat5e or Cat6 twisted-pair cables when combined with the Manhattan VGA Cat5/5e/6 Extender help provide additional protection from external interference over longer distances and customized lengths without signal degradation.
Quality Construction and Easy Installation
Quickly connect Cat5e or Cat6 cables (not included) and the power supplies without software or hardware configuration or complicated settings to complete an affordable VGA distributed signal solution.
- Video Extender Transmitter/Receiver is a reliable audio/video transmission extending solution
- 1920 x 1200 maximum video resolution for a spectacular, sharp display with added reliability
- VGA in for your convenience and optimal audio/video output with maximum usage feasibility
- VGA out for your convenience and optimal audio/video output with maximum usage feasibility
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- The 177344 video extender transmitter/receiver provides plenty of freedom with wired connectivity
- 1 input devices supported for maximum feasibility and usage convenience
- 2 output devices supported to better accommodate your specific requirements
- 984.25 ft maximum operating distance for feasible operation and optimal coverage
- WUXGA graphics mode provides optimal video output with remarkable picture clarity
| Brand | |
|---|---|
| Brand | IC INTRACOM |
| GPU / Graphics | |
|---|---|
| Graphics Modes | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Headphone | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Audio | |
|---|---|
| Microphone | Yes |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 11.15 oz |
| General Features | |
|---|---|
| Number of Output Devices Supp | 2 |
| Maximum Operating Distance | 984.25 ft |
| Manufacturer | IC INTRACOM |
| Video Ports | |
|---|---|
| Number of VGA Inputs | 1 |
| VGA In | Yes |
| VGA Out | Yes |
| Number of VGA Outputs | 2 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
