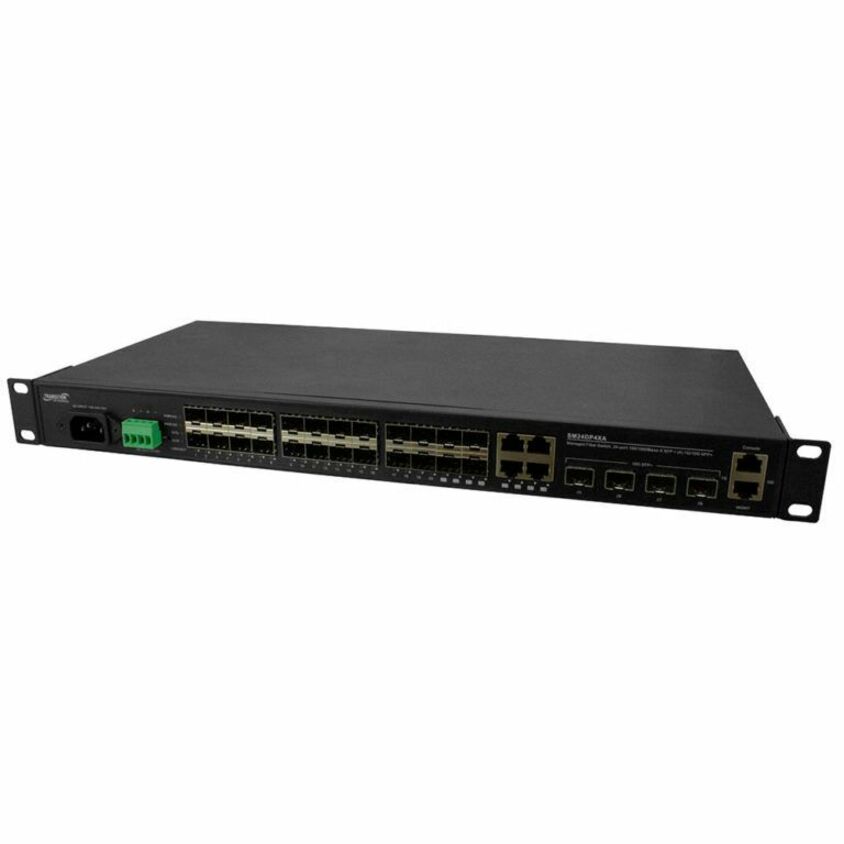

This switch is a next generation Layer 2 managed switch with 128Gbps switching capacity. It provides up to (24) dual speed fiber slots and (4) 10Gig aggregation ports, it's an ideal switch for fiber aggregation applications. NDAA Compliant, TAA Compliant
- Ethernet Virtual Circuts (EVC) for EPL and EVPL Services
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
- ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
- ITU-T Y.1731 Performance Monitoring
- IEEE 802.3ah OAM
- IEEE 802.1ag CFM
- IEEE 1588v2 PTP
- IP Source Guard, Port Security
- DHCP Server
- IEEE 802.3az Energy Efficiency
- LLDP (Link Layer Discovery Protocol)
- IEEE 802.1p, Ethernet type
- Security – Supports SSH/SSL
- DHCP Relay, DHCP Option 82
- L2/L3/L4 ACLs Support MAC ACL, IP standard/extended ACL,
- Support Jumbo Frame up to 1518-4776 bytes
- Authentication – IEEE 802.1X, RADIUS, TACACS+
- IPv4/IPv6 dual protocol stack
| Brand | |
|---|---|
| Brand | Transition Networks |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Power Consumption | 60 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-X |
| Layer Supported | 4 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 4 |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 28.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP Slots | 24 |
| Number of SFP+ Slots | 4 |
| Shared SFP Slot | Yes |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 4 x Gigabit Ethernet TP/SFP Combo |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
