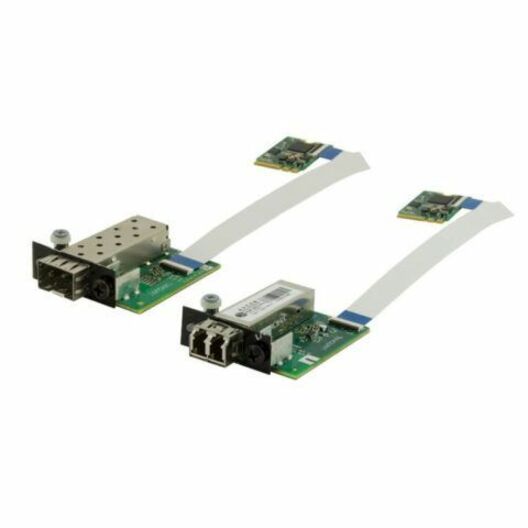

Lantronix M.2 Gigabit Ethernet Fiber Network Interface Card NIC provides a fiber optic interface for the Dell OptiPlex™ 3060/5060/7060/7070 and 7080/7090 Micro PCs. The NM2-GXE-2230-xx-201 Series consists of a M.2 NIC that installs into the OptiPlex Micro PC's M.2 "A or E keyed" interface, a fiber optic adapter that installs into the OptiPlex Micro PC's Option port, and a 20-pin Flat Flex Cable FFC that connects the NIC to the fiber adapter. The fiber optic adapter is available with either a 1000Base-SX LC connector or an open SFP SFP module sold separately. Please note the variation in versions within Ordering Information. NDAA Compliant, TAA Compliant
- 1000Base-SX multimode LC fiber connector or open SFP interface
- Jumbo frame support 9014 bytes
- Supports PXE boot
- Supports UEFI
- IPv6 Capable
- LACP support Teaming
- Extended Message-Signaled Interrupts MSI-X
- Message Signaled Interrupts MSI
- TCP Segmentation Offload TSO
- Wake on LAN WOL
- Smart Load Balancing SLB
- Flow control
- Full duplex
- PCI Express M.2 compliant
- A + E keyed M.2 interface
| Brand | |
|---|---|
| Brand | Lantronix |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| General Features | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Expansion Slot Type | SFP |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Host Interface | M.2 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
