M.2 Gigabit Ethernet Fiber Network Interface Card for Dell OptiPlex™ 3060/5060/7060/7070 & 7080/7090 Micro PCs 1000Base-X

$ 254.99 $ 254.99
$ 254.99

$ 254.99 / Units
  • Brand
  • Weight (Approximate)
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Network Technology
  • Features
  • Expansion Slot Type
  • Total Number of Ports
  • Host Interface
  • Form Factor
  • Media Type Supported
  • TAA Compliant
  • Environmental Compliance
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Device Supported
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

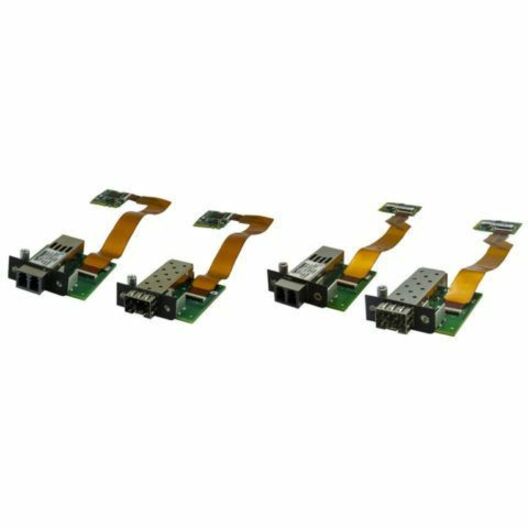

Lantronix M.2 Gigabit Ethernet Fiber Network Interface Card NIC provides a fiber optic interface for the Dell OptiPlex™ 3060/5060/7060/7070 and 7080/7090 Micro PCs. The NM2-GXE-2230-xx-201 Series consists of a M.2 NIC that installs into the OptiPlex Micro PC's M.2 "A or E keyed" interface, a fiber optic adapter that installs into the OptiPlex Micro PC's Option port, and a 20-pin Flat Flex Cable FFC that connects the NIC to the fiber adapter. The fiber optic adapter is available with either a 1000Base-SX LC connector or an open SFP SFP module sold separately. Please note the variation in versions within Ordering Information. NDAA Compliant, TAA Compliant

  • Jumbo frame support 9014 bytes
  • 1000Base-X open SFP interface
  • Supports UEFI
  • Supports PXE boot
  • LACP support Teaming
  • IPv6 Capable
  • Message Signaled Interrupts MSI
  • Extended Message-Signaled Interrupts MSI-X
  • Smart Load Balancing SLB
  • TCP Segmentation Offload TSO
  • Full duplex
  • Flow control
  • Wake on LAN WOL
  • PCI Express M.2 compliant
  • A + E keyed M.2 interface
Brand
Brand Lantronix
Networking & Connectivity
Network Technology 1000Base-X
Size / Dimensions
Form Factor Plug-in Card
General Features
Manufacturer Lantronix, Inc
Expansion Slots
Expansion Slot Type SFP (mini-GBIC)
Misc Ports
Total Number of Ports 1
Host Interface M.2
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Compliance & Certification
TAA Compliant Yes
