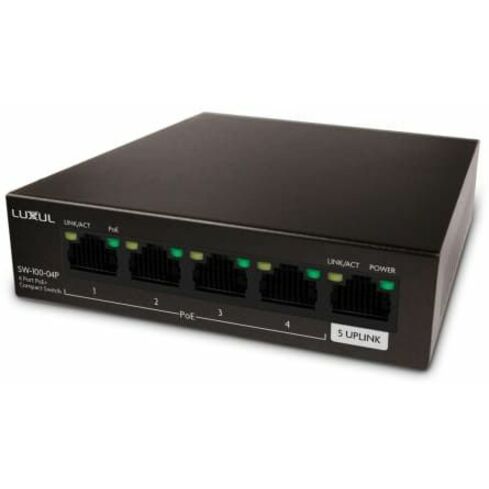

The SW-100-04P is a compact Gigabit PoE+ switch that provides four PoE+ capable ports of Gb Ethernet connectivity with a total power budget of 58 watts. It is an excellent choice for expanding your network when using PoE-enabled devices such as VoIP, IP cameras, and wireless access points and fits easily into the widest range of environments. The durable metal case includes rubber feet and keyhole features for surface mounting options.
- Connect up to 4 IP cameras or other PoE-enabled devices (max output 58 watts)
- Simplify PoE device installation, (IP cameras, VoIP devices, wireless APs)
FEATURES:
- 4 port Gb PoE+ switch w/ uplink - 58W total power budget
- Durable metal case
- Fanless for silent operation
- Includes keyhole features for surface mounting options
- Three-year limited warranty
- Effectively reduces downtime with improved network performance
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
- PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The desktop installation makes it ideal for deployments outside the wiring closet
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| PoE Budget | 58 W |
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 4 |
| PoE (RJ-45) Port | Yes |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Surface Mount |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | Legrand Group |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Uplink |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| NDAA Compliant | Yes |
