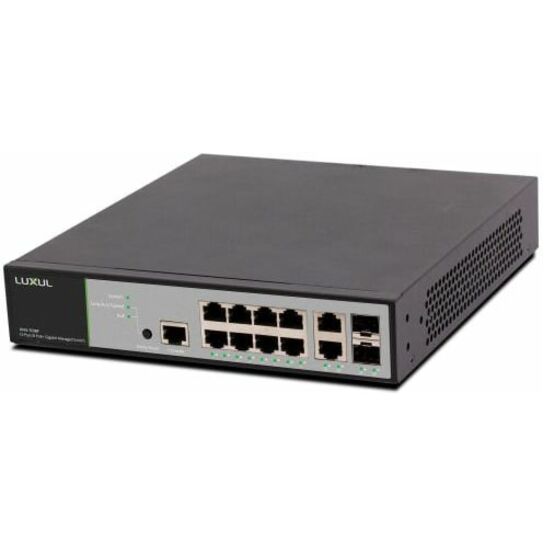

The XMS-1208P is a 12 port/8 PoE+ front- facing rackmount switch that provides silent fan-less operation, 24Gbps switch- ing capacity, Layer 3 static routing, 802.1Q VLAN support with trunking, and QoS prioritization--perfect for security and small business installations. The 8 Gigabit 802.3af/ at PoE+ ports and 130W budget provide robust power and simple management for security cameras, VoIP phones, and other PoE powered devices. The two Gigabit Ethernet or two SFP ports can be used for non-PoE devices or uplinking to other switches.
PoE managed switches also now include port auto-recovery and power scheduling, ensuring system reliability and uptime. Port auto-recovery allows the switch to power cycle unresponsive PoE devices, ensuring system reliability and uptime. Port power scheduling allows switch PoE ports to be turned on or off on a schedule.
- Connect up to 8 PoE-enabled devices (max output 130 watts)
- Enhance network performance with Layer 3 static routing
- 2 Gigabit SFP uplink ports
- Fanless for silent operations
- Standard 19" rack-mount
- User-selectable green or blue front-facing LEDs
- 24Gbps switching capacity
- Simple power management of PoE-enabled devices
- Layer 3 static routing
- 802.1Q VLAN (with trunking) and QoS support
- 8 Gigabit 802.3af/at PoE+ ports
- 130 watt PoE power budget
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Power Consumption | 170 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| Layer Supported | 3 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 8 |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Manufacturer | Legrand Group |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Shared SFP Slot | Yes |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| NDAA Compliant | Yes |
