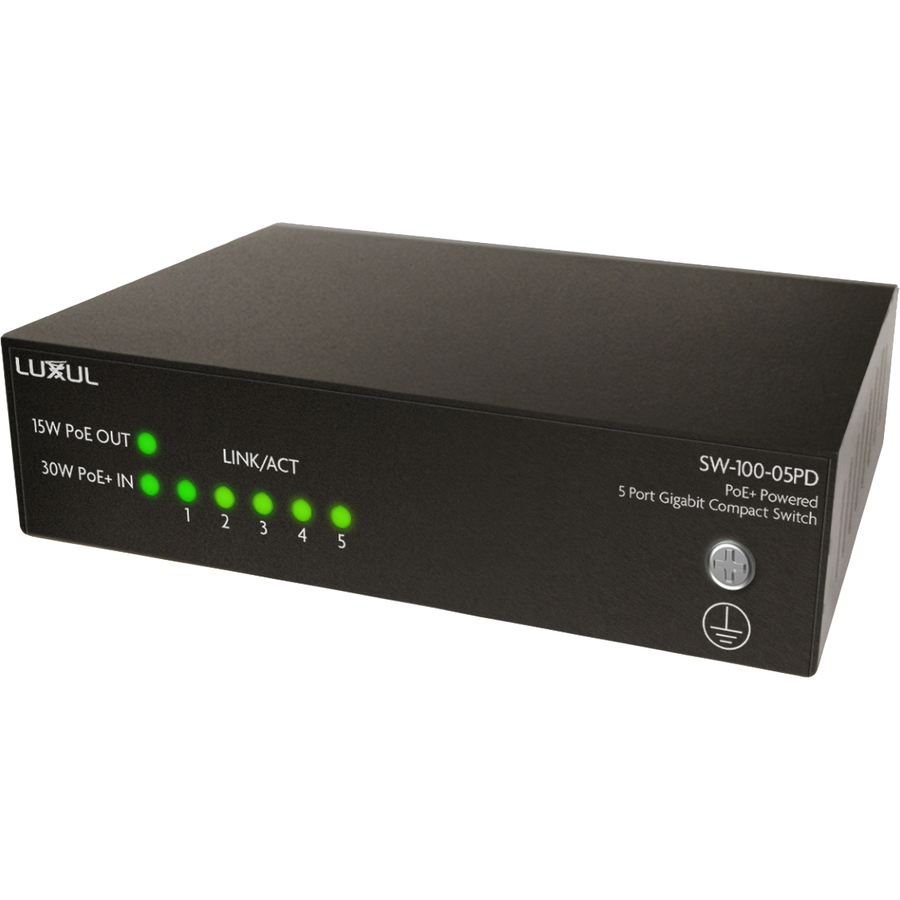

Luxul 5-Port PoE+ Powered Unmanaged Switch

$ 90.49 $ 90.49
$ 90.49

$ 90.49 / Units
  • Brand
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Uplink Port
  • Port/Expansion Slot Details
  • Form Factor
  • Length
  • Ethernet Technology
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • NDAA Compliant
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
WHAT THIS PRODUCT DOES:

The SW-100-05PD is a 5 port PoE+ powered switch that is powered from a PoE+ switch or injector powered uplink and provides an additional four ports of Gb Ethernet connectivity. One of the Gb Ethernet ports allows the powering of a PoE 802.3af device (pass through port) such as a camera, control system interface, or AV over IP receiver. The durable metal enclosure includes detachable wing brackets for mounting and attachable magnet feet for easy mounting to metal surfaces.

USE THE SW-100-05PD TO:
  • Connect up to four devices to the network without having to be plugged into a wall outlet
  • Install into a wide range of environments
FEATURES:
  • 5 auto-negotiation Gigabit ports
  • 1 PoE+ PD Gb port to power the switch (30 watts required)
  • 1 PoE output port to power a PoE device (15 watts maximum)
  • Durable metal case
  • Multiple mounting options
  • Three-year limited warranty
  • Effectively increases available bandwidth on your network
  • Quickly and easily set up a wired network with 5 networking ports
  • PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • Desktop form factor for your convenience and simplicity of usage
  • Gigabit Ethernet port for ultra-fast network speeds
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Brand
Brand Legrand Group
Power & Battery
PoE Budget 15 W
Power Source PoE+
Power Consumption 5.80 W
Networking & Connectivity
Network Technology 10/100/1000Base-T
Layer Supported 2
Ethernet Port
Total Number of Network Ports 5
PoE (RJ-45) Port Yes
Uplink Port Yes
Size / Dimensions
Form Factor Desktop
General Features
Manufacturer Legrand Group
Misc Ports
Port/Expansion Slot Details 1 x Gigabit Ethernet PoE+
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Compliance & Certification
NDAA Compliant Yes
