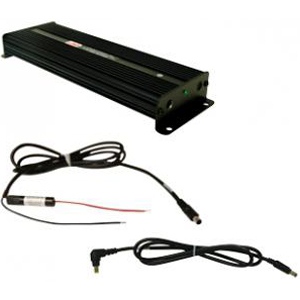

The Lind PA1540I-3486 Isolated DC/DC Power Adapter delivers true continuous power to the Panasonic Toughbook PDRC. The adapter powers the PDRC from any 12-32 Vdc source.
- Input Undervoltage Shutdown: Shutdown occurs if input voltage is less than 10.5 Vdc (typical)
- Output Overcurrent Shutdown: Shutdown occurs at approximately 5.25 Adc (typical)
- Thermal Protection: Yes
- Shutdown Restart Time: Unit resets automatically 10 seconds after fault is removed (typical)
- Operating Temperature: -20 to +40
- Stop worrying about charging of your mobile devices, keep this auto adapter in the vehicle
- 4 A current enables your device recharge quickly
- Notebook device supported for your convenience and better usability
- Auto Adapter with 12 V DC input voltage for maximum feasibility and added productivity
| Brand | |
|---|---|
| Brand | Lind Electronic Design |
| Power & Battery | |
|---|---|
| Input Voltage Range | 12 V DC - 32 V DC |
| Input Voltage | 24 V DC |
| Maximum Output Current | 4 A |
| Size / Dimensions | |
|---|---|
| Outer Tip Size | 0.22" |
| Inner Tip Size | 98.4 mil |
| General Features | |
|---|---|
| Manufacturer | Lind Electronic Design |
