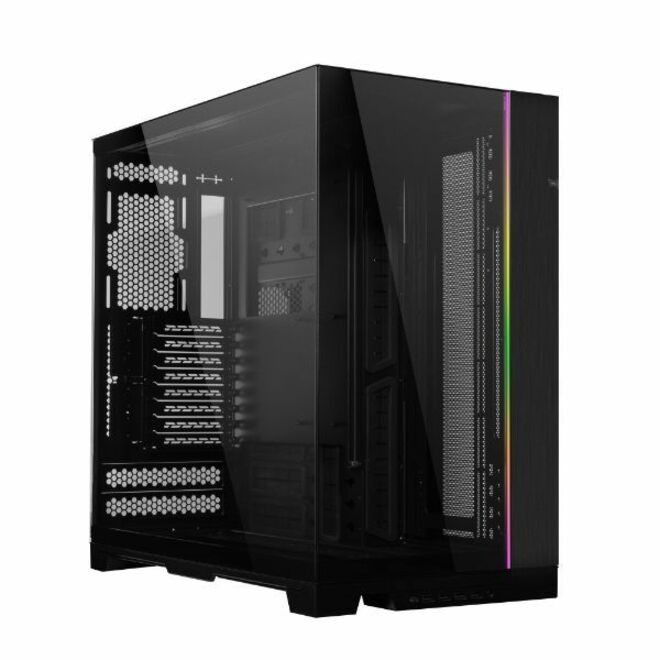

Introducing the all-new O11D EVO XL, an enlarged case that accommodates numerous components while enhancing modularity to meet the needs of most PC enthusiasts.
TWO COLOR / TWO MODES
Derived from the O11D EVO, the O11D EVO XL can be displayed in two modes with just a few simple steps, allowing for a left or right view.
The ARGB strip in the front dazzles with built in lighting effects and the ability to sync to motherboard.
FINE MESH, EQUISITE TOUCH
Keeping style and performance in mind, both the top and side panels of the O11D EVO XL are crafted from aluminum with fine mesh, providing a high-end appearance yet delivering superior cooling compared to the O11D XL.
The fully open bottom panel, along with three dust filters ensures uncompromised airflow while effectively keeping dust out of the chassis.
COMPLETE SEEMLESS VIEW
The O11D EVO XL's front pillar can now be easily removed, providing an unobstructed view for showcasing hardware without affecting the case's structure.BIG SIZE, GREAT COMPATIBILITY
Plenty of space is available in the O11D EVO XL for accommodating modern, powerful, and large components. There's also sufficient cooling with the support for 3 � 420mm radiators.
FLEXIBLE CONFIGURATION
The adjustable motherboard tray can move up and down with three levels of height to fit different fan and radiator combination.
The motherboard tray supports a maximum of E-ATX (width 280mm) motherboard
TOOL-LESS INSTALLATION
Easily secure the graphics card.
Comes with the new anti-sag bracket, (GB-003) designed with easy height adjustment to effectively support heavy GPUs.
STRUGGLE-FREE FAN BRACKETS
Equipped with quick-release design, the fan brackets can be easily removed or installed.
Top Fan Bracket
Removable from the top
Bottom Fan Bracket
Removable from the main chamber
The side bracket can be oriented in two ways depending on how you set up the fan intake/exhaust or position.
Side Fan Bracket
Removable with a quick-latch
Comes with 2 seal plates to ensure no air pressure leak is created when mounting a 360mm radiator or 3 � 120mm fan on the side. The plates can be adjusted and moved around based on the configuration.
Outer Scenario
Supports up to 117.2 mm thick radiator/ fan combo in the main chamber
Fans mount toward the front side
Fans mount toward the back side
RELOCATABLE I/O PORT
To satisfy any need, the modular I/O port includes 1 � USB Type C and 4 � USB Type A ports.
At the bottom of the chassis, the I/O module can be relocated to 3 different locations without the use of any tools.
FRIENDLY STORAGE CAPACITY
Offers multiple easily accessible storage mounting locations that support up to 7 � SSDs or 4 � HDDs + 3 � SSDs.
CABLE MANAGEMENT BAR
2.5" SSD � 3
The removable cable management bar helps tidy up your system and give it a better aesthetic.
DRIVE CAGE
2.5" SSD� 4 or 3.5" HDD � 4
Two swinging hot-swappable cages that can mount a 15mm thick 120mm fan on the side to cool the drives.
WITH WATER COOLING IN MIND
Offers a hidden mounting point for D5 or DDC pump, accessible by removing the bottom drive cage in both reverse and normal modes .
CUSTOMIZABLE CABLE MANAGEMENT
The O11D EVO XL comes with 3 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.
- Full-tower chassis with two modes: Normal Mode/ Reverse Mode
- Front and side tempered glass panels with a removable pilar for a seamless view of components and RGB lighting
- Supports up to 3x 420mm radiators and a maximum of 11 fans
- Offers mounting space for 7 storage drives
- Dual-chamber layout with cable management compartment and three cable holders
- Number of PSU supported : 1
- Features a multi-directional power button and movable IO module
- Optional accessories for vertical GPU or upright GPU mounting
| Brand | |
|---|---|
| Brand | Lian Li Industrial Co. |
| GPU / Graphics | |
|---|---|
| Maximum GPU Length | 18.11" |
| Power & Battery | |
|---|---|
| Number of Power Supplies Supp | 1 |
| Maximum PSU Length | 8.66" |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 5 |
| Front USB | Yes |
| USB Port Details | 4 x USB 3.0 |
| Audio Ports | |
|---|---|
| Total Number of Audio Out Por | 1 |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Audio | |
|---|---|
| Microphone | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Full-tower |
| General Features | |
|---|---|
| Motherboard Supported | Mini ITX |
| Cooler Type | Fan/Liquid Cooler |
| Fan Size Supported | 4.72" |
| Maximum CPU Cooler Height | 6.57" |
| Manufacturer | Lian Li Industrial Co., Ltd |
| Number of Fans Supported | 9 |
| Miscellaneous | |
|---|---|
| Product Name | O11 Dynamic EVO XL |
