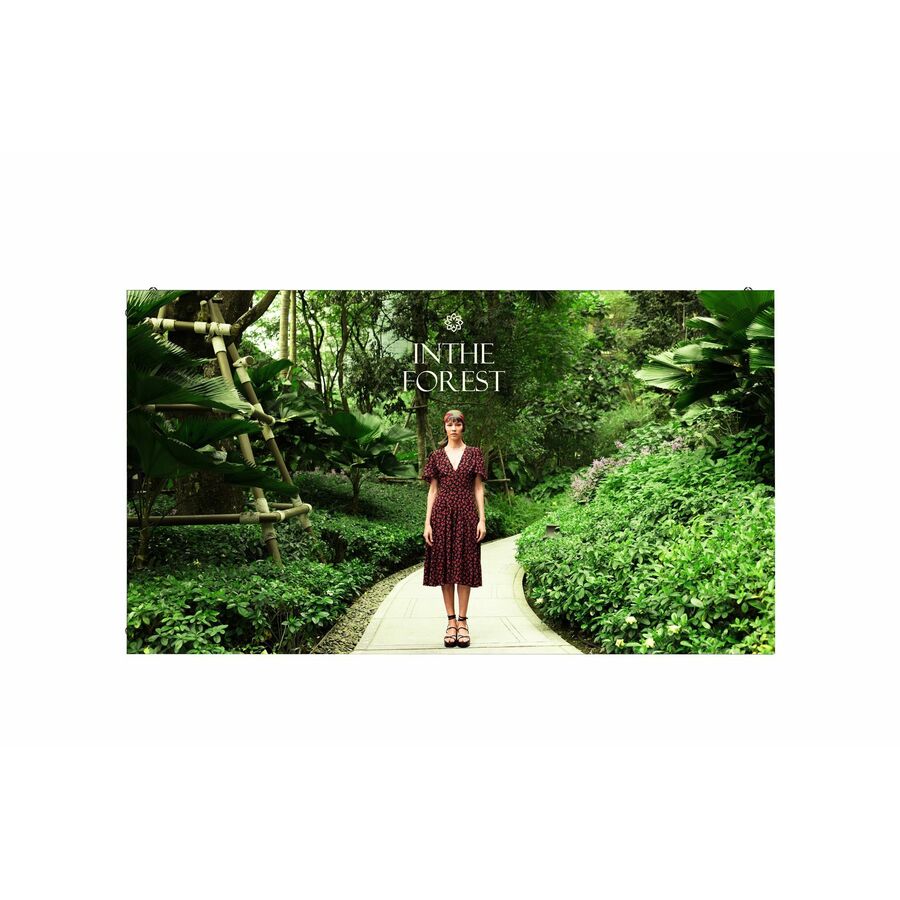

LSCC Ultra Slim Series | Ultra Slim Depth and Lightweight
The ultra slim design, with a cabinet thickness of just 33.6 mm and a weight of only 5.0 kg, is the standout feature of this product. This sleek and lightweight design allows the LSCC series to be seamlessly installed in a variety of venues, harmonizing effortlessly with its surroundings.
Stunning Picture Quality with 4K HDR
All models of the LSCC series deliver 4K HDR while maintaining 800 nits of brightness. Not only do they offer a great contrast ratio and wide viewing angle, but the 4K HDR feature also ensures stunning picture quality.
Superior Energy Efficiency
The LSCC series improves power consumption by 16% to 25%, depending on pitch models, delivering both energy efficiency and lower operating costs. Consequently, the LSCC series stands as the second most energy-efficient model in LG's indoor PKG lineup as of Aug 2024.
Attachable Wire Hooks for Modules
All modules come with wire holders attached to the back, allowing wires to be secured for installation on ceilings, walls, or other surfaces as needed. Simply attach a safety wire to prevent the module from falling, providing safety
90° Corner Design Available
By adding the 90° corner option, the LSCC series seamlessly integrates into any space, delivering smooth content to customers. Additionally, elegantly curved LED screens can be implemented as an option.
GOB (Glue on Board) Protection Option
It features a special polymer coating for anti-scratch and anti-static protection, helping to reduce the risk of pixel damage from accidental touches or impacts.
Compatibility with LG Software Solutions
When connected with LG's CVCA/CBCA system controller, the LSCC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business deftly.
- Pixel Pitch: 2.5 mm
- Brightness: 800 nit (Max.)
- Ultra Slim Depth and Lightweight
- Flexible Design
| Brand | |
|---|---|
| Brand | LG Electronics |
| GPU / Graphics | |
|---|---|
| Graphics Controller Model | CVCA |
| Screen / Display | |
|---|---|
| Color Uniformity | Cy , ±0.003 Cx |
| Native Contrast Ratio | 000:1 , 5 |
| Minimum Color Temperature | 5300.3°F (2926.8°C) |
| Maximum Color Temperature | 16280.3°F (9026.8°C) |
| Pixel Configuration | Single SMD |
| Physical Pixel Density | 160000 pixels/m² |
| Backlight Technology | LED |
| High Dynamic Range (HDR) Type | HDR10 Pro |
| High Dynamic Range (HDR) | Yes |
| Video Wall Compatible | Yes |
| Display Resolution | 240 x 135 |
| Display Screen Type | LCD |
| Brightness | 800 Nit |
| Pixel Pitch | 98.4 mil |
| Module Resolution | 120 x 135 |
| Color Depth | 14-bit |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Software & Licensing | |
|---|---|
| Compatible Software | SuperSign CMS |
| Size / Dimensions | |
|---|---|
| Cabinet Surface Area | 2 Sq. ft. |
| Weight per Square Meter (Appr | 24690 g/m² |
| Weight per Module (Approximat | 1.23 lb |
| Weight per Cabinet (Approxima | 11.02 lb |
| Mount Type | Wall Mountable |
| Appearance | |
|---|---|
| Housing Material | Die-cast Aluminum |
| General Features | |
|---|---|
| Indoor/Outdoor | Indoor |
| Number of Modules Per Cabinet | 2x1 |
| Maximum Heat Generation | 1492.9 kJ |
| Manufacturer | LG Electronics |
| Maximum LED Life | 11.4 Year |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Humidity | 80% |
| Minimum Operating Humidity | 0% |
| Ingress Protection (IP) Rating | IP30 |
