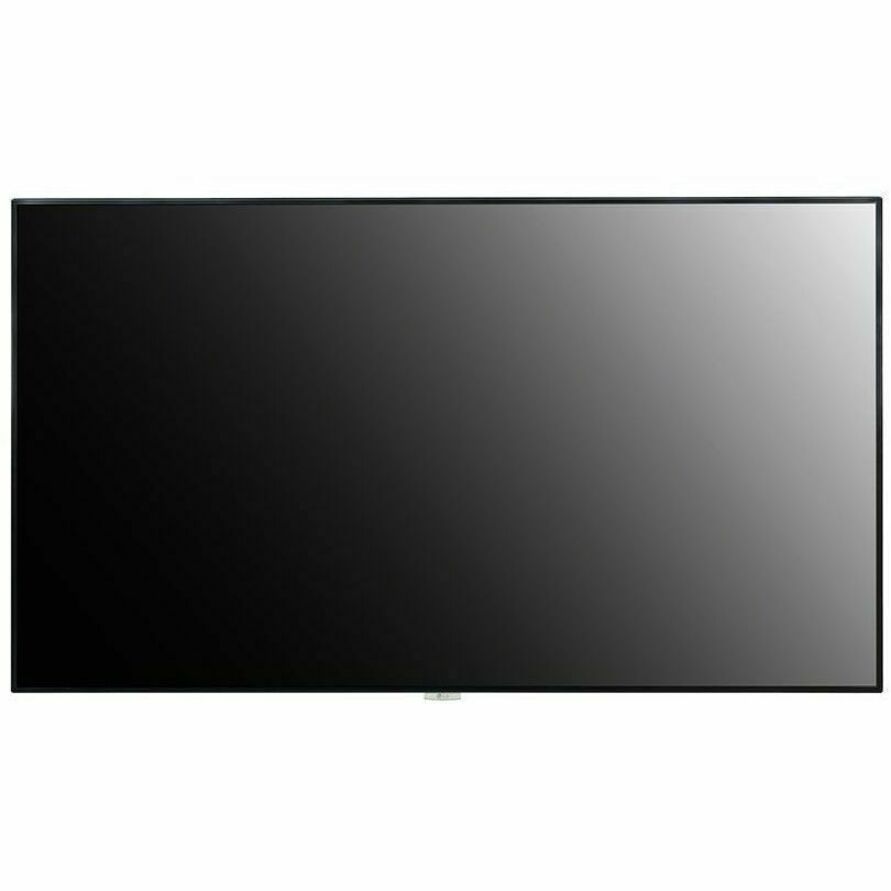

New High Haze UHD Standard Signage | Proper Display Brightness
With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Conformal Coating
In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.
Mobile Content Management
You can create a store profile and get template recommendations using the Promota app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
Compatible with AV Control System
The UH5J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.
- The 16:9 UHD display shows crisp, clear images & in portrait or landscape
- 500 nits brightness & 28% (Haze) surface treatment lets your message been seen
- webOS™ 6.0 Signage Platform, SuperSign CMS Compatible
- Certified Crestron Connected® and Cisco Certified
- Lasts up to 50,000 hours and can be on 24/7
- ENERGY STAR® Certified
| Brand | |
|---|---|
| Brand | LG Electronics |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 1 , 200:1 |
| Dynamic Contrast Ratio | 000 , 100 , 0:1 |
| On Screen Display (OSD) Langu | Turkish |
| Image Sticking Minimization ( | Yes |
| Viewable Screen Size | 98" |
| Multi-touch Screen | No |
| Display Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Panel Technology | In-plane Switching (IPS) Technology |
| Brightness | 500 Nit |
| Response Time | 8 ms |
| Standard Refresh Rate | 60 Hz |
| Color Gamut | 95% BT.709 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Color Depth | 10-bit |
| Power & Battery | |
|---|---|
| Power Consumption (DPM) | 0.5W |
| Input Voltage | 230 V AC |
| Off-Mode Power Consumption | 500 mW |
| Power Consumption | 620 W |
| Networking & Connectivity | |
|---|---|
| Infrared Output | No |
| Content Synchronization | RS-232C |
| Wireless LAN | Yes |
| Bluetooth | No |
| USB Ports | |
|---|---|
| USB Type-C | No |
| Number of USB 2.0 Ports | 1 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 3 |
| DisplayPort | |
|---|---|
| DisplayPort In | Yes |
| DisplayPort Output | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | No |
| Audio Ports | |
|---|---|
| Number of Audio Line Out | 1 |
| Audio Line Out | Yes |
| Audio Line In | Yes |
| Audio | |
|---|---|
| Speakers | No |
| Software & Licensing | |
|---|---|
| Embedded CMS | Local Contents Scheduling |
| Compatible Software | Mobile CMS |
| Size / Dimensions | |
|---|---|
| VESA Mount Standard | 800 x 400 |
| Orientation | Landscape/Portrait |
| Appearance | |
|---|---|
| Bezel Color | Black |
| Security | |
|---|---|
| HDCP Version | 1.4/2.2 |
| General Features | |
|---|---|
| Operation Hours | 24 Hours/7 Days |
| Maximum Heat Generation | 2233.6 kJ |
| Manufacturer | LG Electronics |
| Maximum LED Life | 5.7 Year |
| Video Ports | |
|---|---|
| DVI-D In | Yes |
| Misc Ports | |
|---|---|
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Humidity | 80% |
| Minimum Operating Humidity | 10% |
| TAA Compliant | Yes |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Certification | ErP |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Miscellaneous | |
|---|---|
| Product Name | IP5X Rating , 98" UH5J-H Series High Haze LCD UHD Signage with webOS™ |
