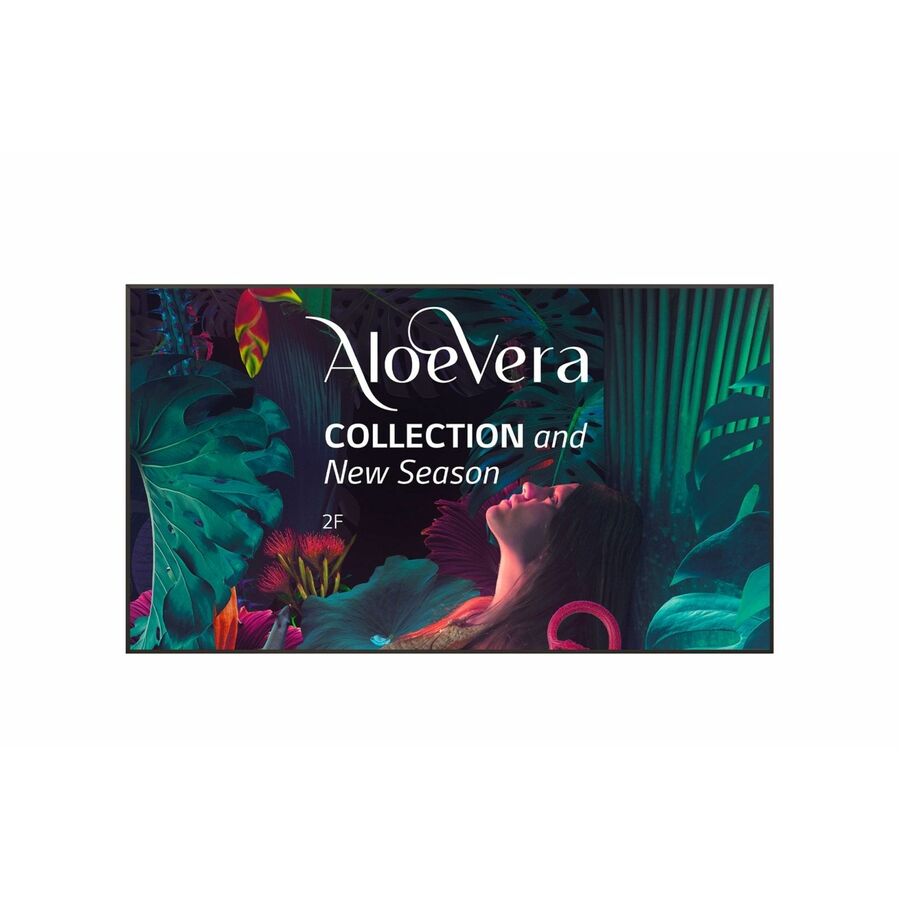

Large UHD Signage Display with Slim Design | Eye-catching Large Screen
A large screen effectively captures people's attention. Especially, 86-inch model supports 120Hz, enabling smooth content operation.
Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
Slim Depth with Even Bezel
Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.
Versatile Operation with Multi-USB
With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.
Enhanced Security Features
The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
- 86 inch UHD (3,840 � 2,160) display with 500 nits brightness creates clear, crisp images
- The ultra slim bezel & cable management allows it to sit close to the wall
- LG webOS™ 6.0 smart signage platform provides enhanced user convenience with an intuitive GUI
- Enhanced security features ensure your customer's data is secure
- Compatible with LG SuperSign and ConnectedCare DMS for easy management (Sold separately)
- 24/7 use with lifetime up to 50,000 hrs
| Brand | |
|---|---|
| Brand | LG Electronics |
| GPU / Graphics | |
|---|---|
| Number of Screens | 1 |
| Screen / Display | |
|---|---|
| On Screen Display (OSD) Languages | Arabic , Brazilian Portuguese , Czech , Danish , Dutch , English , Finnish , French , German , Greek , Italian , Japanese , Korean , Norwegian , Portuguese (EU) , Russian , Simplified Chinese , Spanish , Swedish , Traditional Chinese , Turkish |
| Native Contrast Ratio | 1 , 200:1 |
| Dynamic Contrast Ratio | 000 , 100 , 0:1 |
| On Screen Display (OSD) Langu | Turkish |
| Image Sticking Minimization ( | Yes |
| Viewable Screen Size | 86" |
| Backlight Technology | Edge LED |
| Display Resolution | 3840 x 2160 |
| Display Screen Type | LCD |
| Aspect Ratio | 16:9 |
| Panel Technology | Advanced Super Dimension Switch ( ADS ) |
| Brightness | 500 Nit |
| Response Time | 8 ms |
| Standard Refresh Rate | 120 Hz |
| Color Gamut | 95% BT.709 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Color Depth | 10-bit |
| Power & Battery | |
|---|---|
| Power Consumption (DPM) | 0.5W |
| Input Voltage | 230 V AC |
| Off-Mode Power Consumption | 500 mW |
| Power Consumption | 297 W |
| Networking & Connectivity | |
|---|---|
| Content Synchronization | RS-232C |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Ethernet | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Type-C | No |
| Number of USB 2.0 Ports | 1 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Inputs | 3 |
| DisplayPort | |
|---|---|
| DisplayPort In | Yes |
| DisplayPort | Yes |
| DisplayPort Output | No |
| Number of DisplayPorts | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | No |
| Number of Network (RJ-45) Ports | 1 |
| Audio Ports | |
|---|---|
| Number of Audio Line Out | 1 |
| Audio Line Out | Yes |
| Audio Line In | Yes |
| Audio | |
|---|---|
| Speakers | Yes |
| Number of Speakers | 2 |
| Speaker Power | 20 W |
| Software & Licensing | |
|---|---|
| Embedded CMS | Local Contents Scheduling |
| Compatible Software | Mobile CMS |
| Size / Dimensions | |
|---|---|
| VESA Mount Standard | 600 x 400 |
| Mount Type | Wall Mountable |
| Orientation | Landscape/Portrait |
| Bezel Width | 0.53" |
| Appearance | |
|---|---|
| Bezel Color | Black |
| General Features | |
|---|---|
| Operation Hours | 24 Hours/7 Days |
| Maximum Heat Generation | 1068.8 kJ |
| Manufacturer | LG Electronics |
| Maximum LED Life | 5.7 Year |
| Video Ports | |
|---|---|
| DVI-D In | No |
| Misc Ports | |
|---|---|
| Serial | Yes |
| Number of Infrared Inputs | 1 |
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Scan Format | 2160p |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Humidity | 80% |
| Minimum Operating Humidity | 10% |
| TAA Compliant | No |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool (EPEAT) |
| Ingress Protection (IP) Rating | IP5X |
| Packaging & Origin | |
|---|---|
| Country of Assembly | Mexico |
