Engage your Audience

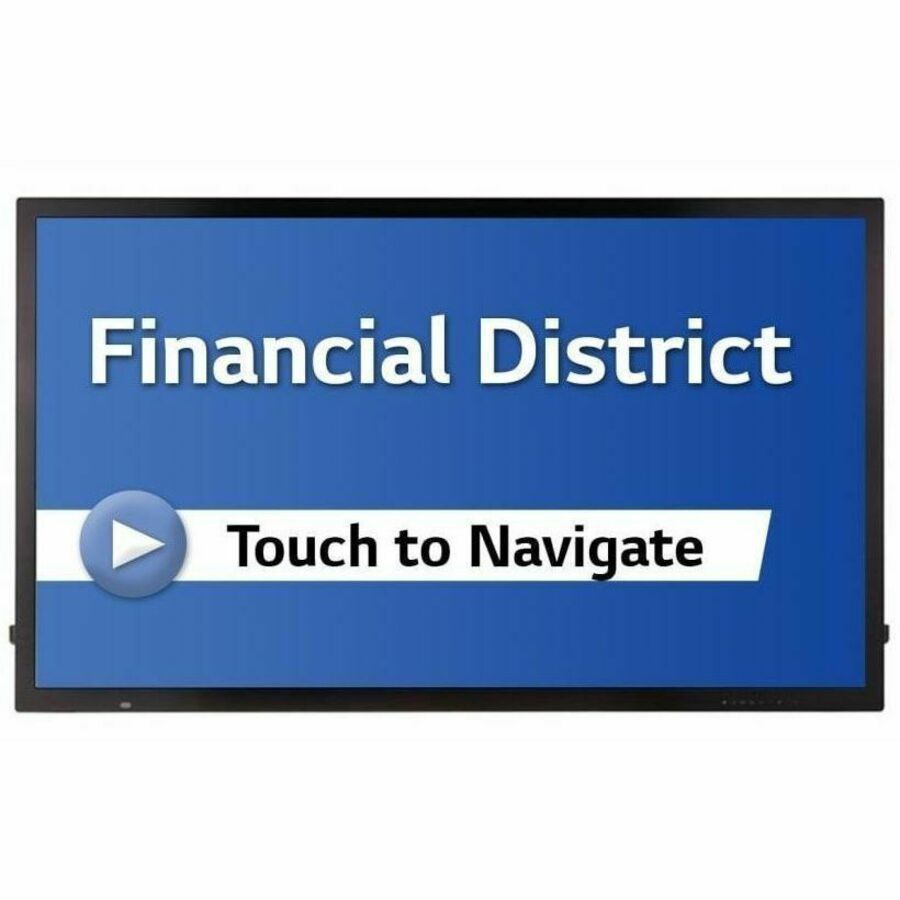

The 55TC3CG-H offers high touch performance and great color with vivid details that can seen at virtually any angle.
High Touch Performance | Precise Touch Response
The screen accurately recognizes extremely small touch points and instantly shows a response. This means that SIs can compose GUI icons in a variety of sizes on the 55TC3CG-H and users can fully enjoy their touch experience with no lagging.
Multi Touch with No Dead Zones
Capable of recognizing up to 40 point-touches at once, the screen provides multiple users a smooth and natural sense of touch. Unlike infrared touch screens, the 55TC3CG-H accurately detects touch points even at the corners or edges of the display. This allows a variety of touch-based customer services to be provided throughout the entire screen.
Excellent Picture Quality | Beautiful Color, Wide View
LG IPS panel features a wide viewing angle to deliver clear content regardless of where meeting participants are seated.
Vivid Details with Ultra HD
Ultra High Definition resolution allows users to view details even when zooming in on the display, with four times higher definition than Full HD.
Product Reliability | Fewer Scratches & Shatter Proof
Touch screens in public spaces can be scratched in heavy use or even abuse situations. The 55TC3CG-H has an advanced tempered screen coating to minimize scratches. In addition, its anti-shatter glass is designed to minimize harm to the user, even in the event the product being subject to abuse.
Conformal Coating
The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on the circuit board virtually eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.
Easy Content Management | Embedded Group Manager
The embedded content management system allows you to edit and play content, schedule a playlist and even group and control signage via remote control, without need for a separate PC. This makes content management much easier and user-friendly.
Multi Screen Mode
PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.
- IPS Display with wide viewing angles
- Multi Touch Screen (Up to 40 points)
- webOS 4.1 Smart Signage Platform
- Anti-shatter Glass & Conformal Coating
- SuperSign CMS, Control/Control+
| Brand | |
|---|---|
| Brand | LG Electronics |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 000:1 , 1 |
| Dynamic Contrast Ratio | 000:1 , 500 |
| On Screen Display (OSD) Langu | Turkish |
| Protection Glass Transmission | 83% |
| Image Sticking Minimization ( | Yes |
| Touch Object Size Diameter | 0.24" |
| Accuracy Touch | 78.7 mil |
| Viewable Screen Size | 55" |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Backlight Technology | Edge LED |
| Display Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Panel Technology | In-plane Switching (IPS) Technology |
| Brightness | 350 Nit |
| Response Time | 9 ms |
| Standard Refresh Rate | 60 Hz |
| Color Gamut | 72% NTSC |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Color Depth | 10-bit |
| Power & Battery | |
|---|---|
| Power Consumption (DPM) | Less Than 0.5W |
| Input Voltage | 230 V AC |
| Off-Mode Power Consumption | 500 mW |
| Power Consumption | 145 W |
| Networking & Connectivity | |
|---|---|
| Infrared Output | No |
| Content Synchronization | RS-232C |
| Wireless LAN | No |
| Bluetooth | No |
| USB Ports | |
|---|---|
| USB Type-C | No |
| Number of USB 2.0 Ports | 2 |
| HDMI Ports | |
|---|---|
| Number of HDMI Inputs | 2 |
| DisplayPort | |
|---|---|
| DisplayPort In | Yes |
| DisplayPort Output | Yes |
| Number of DisplayPort Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | No |
| Audio Ports | |
|---|---|
| Number of Audio Line Out | 1 |
| Audio Line Out | Yes |
| Audio Line In | No |
| Audio | |
|---|---|
| Speakers | No |
| Input Devices | |
|---|---|
| Number of Simultaneous Touchp | 40 |
| Software & Licensing | |
|---|---|
| Embedded CMS | Local Contents Scheduling |
| Compatible Software | Mobile CMS |
| Size / Dimensions | |
|---|---|
| Front Glass Thickness | 0.13" |
| VESA Mount Standard | 300 x 300 |
| Orientation | Landscape/Portrait |
| Bezel Width (Top) | 1.32" |
| Bezel Width (Bottom) | 1.50" |
| Bezel Width (Left) | 1.31" |
| Bezel Width (Right) | 1.31" |
| Appearance | |
|---|---|
| Bezel Color | Black |
| Security | |
|---|---|
| HDCP Version | 1.4/2.2 |
| General Features | |
|---|---|
| Operation Hours | 24 Hours/7 Days |
| Maximum Heat Generation | 522.3 kJ |
| Manufacturer | LG Electronics |
| Maximum LED Life | 5.7 Year |
| Video Ports | |
|---|---|
| DVI-D In | No |
| Misc Ports | |
|---|---|
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Humidity | 80% |
| Minimum Operating Humidity | 10% |
| TAA Compliant | No |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | ErP |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
