Artistic Space beyond Display
Beyond its informative features, LG OLED signage delivers unsurpassed advertising effectiveness, redesigning space as a prestige-enhancing landmark with perfect colors and innovative forms.
UNRIVALED PICTURE QUALITY
Perfect Black
Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.
UNRIVALED PICTURE QUALITY
Perfect Color
LG OLED Signage provides richness in all colors, bringing colors to life with superb accuracy and vividness.
UNRIVALED PICTURE QUALITY
Perfect Viewing Screen
LG OLED Signage delivers its awe-inspiring picture quality and brightness even from wide viewing angles.
SPACE-FITTING DESIGN
Perfect Design
LG OLED technology doesn't require a backlight unit nor a liquid crystal layer so it offers a flexible design with unbelievably lightweight and slim features.
SPACE-FITTING DESIGN
Expandable Screen Size
The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with an incredibly immersive viewing experience.
DESIGN FLEXIBILITY

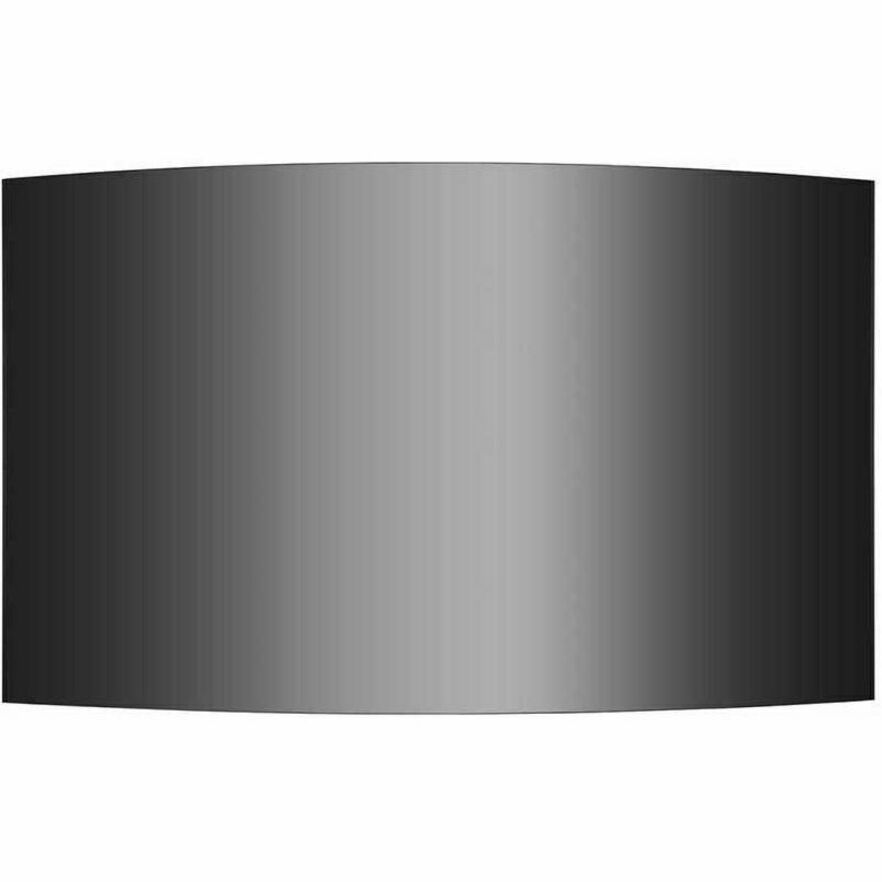

Variety of Curvature for Landmarks
The 55EF5F series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.
DESIGN FLEXIBILITY
On-site Customization
The 55EF5F series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)" supports the coordination of displays with various convex and concave curvature, depending on the requirements.
EXCELLENT PERFORMANCE
LAN Daisy Chain Management
The LAN daisy chain allows users to control and monitor displays, transmit data and even update firmware all at once, reducing management burden.
EXCELLENT PERFORMANCE
Synced Playback
Through its built-in high performance SoC, each display plays its video tile without lag for synchronized content playback.
- Interface: HDMI, DP, USB, Audio, RS232C, RJ45, IR
- Depth: 12.4mm (Head Only)
- Supported Curvature: Up to 1,000R (Concave/Convex)
- Brightness(Typ.): 400 nits (Average Picture Level 25%)
| Brand | |
|---|---|
| Brand | LG Electronics |
| GPU / Graphics | |
|---|---|
| HDCP Supported | Yes |
| Screen / Display | |
|---|---|
| Dynamic Contrast Ratio | 000:1 , 150 |
| Image Sticking Minimization ( | Yes |
| Viewable Screen Size | 55" |
| Display Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Panel Technology | OLED |
| Brightness | 400 Nit |
| Response Time | 1 ms |
| Standard Refresh Rate | 120 Hz |
| Color Gamut | 120% BT.709 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Power & Battery | |
|---|---|
| Power Consumption (DPM) | 3W |
| Input Voltage | 230 V AC |
| Off-Mode Power Consumption | 500 mW |
| Power Consumption | 318 W |
| Networking & Connectivity | |
|---|---|
| Content Synchronization | RS-232C |
| Wireless LAN | No |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB 2.0 Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort In | Yes |
| DisplayPort | Yes |
| DisplayPort Output | Yes |
| Number of DisplayPorts | 1 |
| Number of DisplayPort Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Number of Audio Line Out | 1 |
| Audio Line Out | Yes |
| Software & Licensing | |
|---|---|
| Embedded CMS | Local Contents Scheduling |
| Compatible Software | SuperSign CMS |
| Size / Dimensions | |
|---|---|
| Orientation | Landscape/Portrait |
| Appearance | |
|---|---|
| Bezel Color | Black |
| Surface Hardness | 2H |
| Security | |
|---|---|
| HDCP Version | 1.4 |
| General Features | |
|---|---|
| Operation Hours | 18 Hours/7 Days |
| Manufacturer | LG Electronics |
| Maximum LED Life | 3.4 Year |
| Misc Ports | |
|---|---|
| Serial | Yes |
| Number of Infrared Inputs | 1 |
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Humidity | 80% |
| Minimum Operating Humidity | 10% |
| Environmentally Friendly | Yes |
| Environmental Certification | ErP |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
