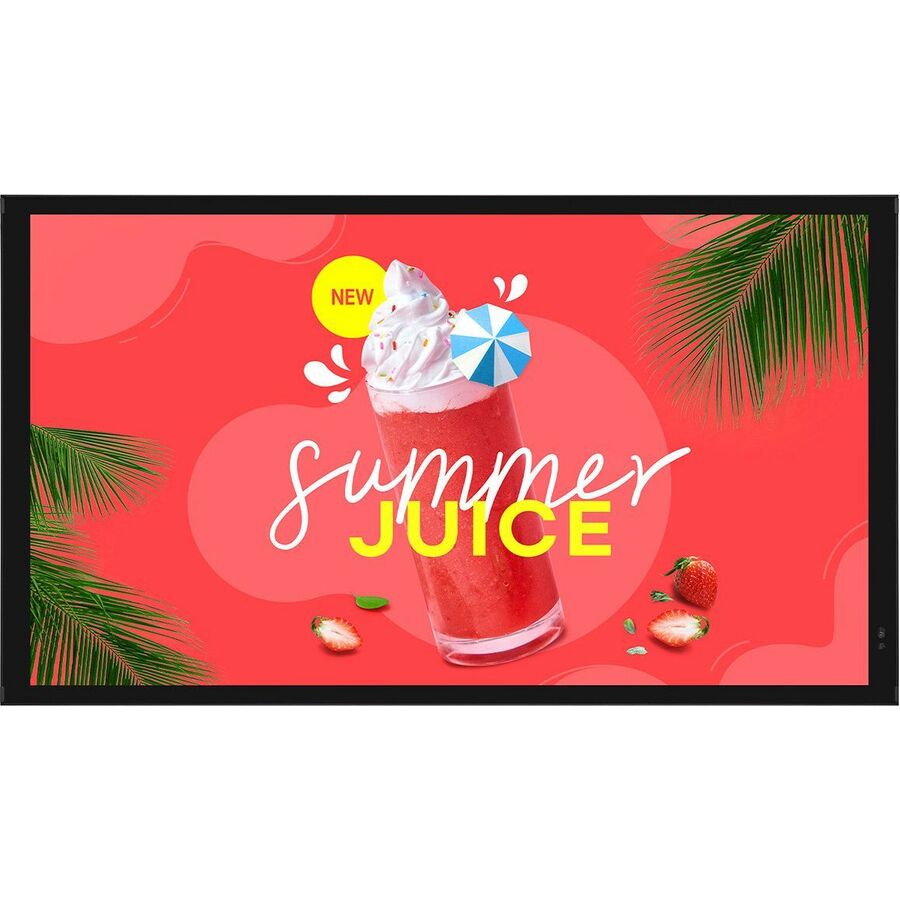

IP-rated Outdoor Display
LG offers advanced technical solutions equipped with various sensors, providing reliable and effective operations. In diverse spaces under sunlight, the XE3P highlights your content, reducing concerns about excessive operational burdens.
High Visibility Under | Strong Sunlight
With outstanding high brightness of 3,500 nits (Typ.), the XE3P outdoor display delivers content clearly with captivating passersby. Through IPS technology, viewers can engage with the content at wide viewing angles.
LG Anti-Discoloration
By focusing on the key pain points, we developed our new "Anti-Discoloration" technology designed to deter both screen yellowing and black circles. With an enhanced thermal solution, the XE3P can deliver long-lasting and stable display quality.
World's First UL Verified Display for Anti-Discoloration Characteristics
Especially for screen yellowing resistance, we obtained the world's first UL Verification of Anti-Discoloration characteristics for displays. The UL Verified XE3P can alleviate concerns about screen yellowing, the most common but tricky issue for outdoor digital signage products.
IP56 Rated Reliability
The XE3P is sealed with IP56 design for reliable operation. It is designed to be protected not only from water but also from dust, which is an essential feature for outdoor applications.
IK10 Protective Glass
The XE3P features IK10 rated protective glass, tempered and laminated for outdoor extremes, minimizing damage from external impacts. This can reduce unnecessary LCD module replacements and can lead to cost-effective maintenance.
Wide Range of Operating Temperature
The XE3P can be used under a wide range of operating temperature from -30? to 50?.
Conformal Coating
Conformal Coating* protects the circuit board and power board against dust, iron powder, humidity, etc.
Efficient Energy Management
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, the XE3P uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.
Easy Energy Management
The XE3P provides preset brightness settings suited to different locations and usage environments, enabling easy and effective power consumption management according to various scenarios.
Built-in Wi-Fi & Bluetooth
Built-in Wi-Fi and Bluetooth allow easy wireless transfer and distribution of content, help to prevent data hijacking, and ensure convenient and efficient device operation. Additionally, the XE3P is equipped with a beacon that delivers real-time information, using location data for display content.
Vandalism Alert
If the sensor detects the XE3P experiencing an impact above a certain threshold or deviating from its original installation angle, it sends an alert to the administrator, enabling a quick response to issues like vandalism.
Professional Content Partners
Pairing the XE3P with LG SW solutions* would enhance its utilization.
- 55" 1,920 x 1,080 (FHD) IPS, M+ Display with 3,500 nits brightness
- World's first UL Verified display for anti-discoloration characteristics
- Durable design with IP56 rating, IK10, conformal coating & a wide operating temperature
- Easy maintenance with webOS™ 6.1, Built-in Wi-Fi, & Vandalism Alert
- Easy & Efficient Energy Management
- Compatible with LG Control Manager, ConnectedCare® & SuperSign® Cloud for easy control & management*
| Brand | |
|---|---|
| Brand | LG Electronics |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 000:1 , 1 |
| Dynamic Contrast Ratio | 000:1 , 500 |
| On Screen Display (OSD) Langu | Turkish |
| Image Sticking Minimization ( | Yes |
| Viewable Screen Size | 55" |
| Multi-touch Screen | No |
| Display Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Panel Technology | In-plane Switching (IPS-M+) Technology |
| Brightness | 3500 Nit |
| Response Time | 9 ms |
| Standard Refresh Rate | 60 Hz |
| Color Gamut | 72% NTSC |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Color Depth | 8-bit |
| Power & Battery | |
|---|---|
| Power Consumption (DPM) | Less Than 0.5W |
| Input Voltage | 230 V AC |
| Off-Mode Power Consumption | 500 mW |
| Power Consumption | 430 W |
| Networking & Connectivity | |
|---|---|
| Infrared Output | No |
| Content Synchronization | RS-232C |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| USB Ports | |
|---|---|
| USB Type-C | No |
| Number of USB 2.0 Ports | 2 |
| HDMI Ports | |
|---|---|
| Number of HDMI Inputs | 2 |
| DisplayPort | |
|---|---|
| DisplayPort In | Yes |
| DisplayPort Output | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Audio Ports | |
|---|---|
| Audio Line Out | No |
| Audio Line In | No |
| Audio | |
|---|---|
| Speakers | Yes |
| Number of Speakers | 2 |
| RMS Output Power | 20 W |
| Speaker Power | 20 W |
| Software & Licensing | |
|---|---|
| Embedded CMS | Local Contents Scheduling |
| Compatible Software | SuperSign Cloud |
| Size / Dimensions | |
|---|---|
| Front Glass Thickness | 0.20" |
| VESA Mount Compatible | No |
| Orientation | Landscape/Portrait |
| Bezel Width (Top) | 1.51" |
| Bezel Width (Bottom) | 1.51" |
| Bezel Width (Left) | 1.02" |
| Bezel Width (Right) | 1.02" |
| Appearance | |
|---|---|
| Bezel Color | Black |
| Security | |
|---|---|
| HDCP Version | 2.2 |
| General Features | |
|---|---|
| Operation Hours | 24 Hours/7 Days |
| Maximum Heat Generation | 1440.2 kJ |
| Manufacturer | LG Electronics |
| Maximum LED Life | 5.7 Year |
| Video Ports | |
|---|---|
| DVI-D In | No |
| Misc Ports | |
|---|---|
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Humidity | 100% |
| Minimum Operating Humidity | 5% |
| TAA Compliant | Yes |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Certification | ErP |
| Ingress Protection (IP) Rating | IP56 |
| Impact Protection (IK) Rating | IK10 |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
