Groundbreaking 0.44mm Even Bezel
The unprecedented razor-thin bezel - 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL - which has been verified by Nemko, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions. Seamlessly assembled on a large video wall screen, the VSH7J series will provide an even more immersive experience to viewers.
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VSH7J series is high enough to display vivid colors throughout the screen with no distortion.
Wide Viewing Angle
It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VSH7J series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.
Uniform Color Expression
Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn't look good on a large screen. However, the VSH7J series has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.
Image Gap Reduction
The VSH7J series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Smart Calibration
Smart Calibration is a solution that enables error-free calibration while dramatically reducing time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences within each individual display but also the property differences between the connected displays, eliminating the need for any additional manual color adjustments. Because it can be done in a matter of minutes with just the click of a remote control, this process is so simple. In addition, calibration can be set to automatically occur at regular intervals and brightness can be adjusted based on the surrounding environment, allowing you to always deliver optimum image quality.
Clear View with Non-glare Panel
Viewers can be annoyed by unnecessary light reflection when watching a screen under bright conditions. The VSH7J series has resolved such inconveniences by increasing the level of haze to 28%, which enhanced visibility and text readability.
High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VSH7J series can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
Flexible Content Creation
Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming is also available, providing the flexibility to organize and diversify content free from capacity limits.
Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
- Brightness(Typ.) : 700 nits
- Bezel : 0.44 mm (Even)
- Depth : 86.5 mm
- Interface : HDMI(2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
- Smart Calibration
| Brand | |
|---|---|
| Brand | LG Electronics |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 000:1 , 1 |
| Dynamic Contrast Ratio | 000:1 , 500 |
| On Screen Display (OSD) Langu | Turkish |
| Image Sticking Minimization ( | Yes |
| Viewable Screen Size | 55" |
| Multi-touch Screen | No |
| Display Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Panel Technology | In-plane Switching (IPS) Technology |
| Brightness | 700 Nit |
| Response Time | 8 ms |
| Standard Refresh Rate | 60 Hz |
| Color Gamut | 72% NTSC |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Color Depth | 10-bit |
| Power & Battery | |
|---|---|
| Power Consumption (DPM) | 0.5W |
| Input Voltage | 230 V AC |
| Off-Mode Power Consumption | 500 mW |
| Power Consumption | 250 W |
| Networking & Connectivity | |
|---|---|
| Infrared Output | No |
| Content Synchronization | RS-232C |
| Wireless LAN | No |
| Bluetooth | No |
| USB Ports | |
|---|---|
| USB Type-C | No |
| Number of USB 2.0 Ports | 1 |
| HDMI Ports | |
|---|---|
| Number of HDMI Inputs | 2 |
| DisplayPort | |
|---|---|
| DisplayPort In | Yes |
| DisplayPort Output | Yes |
| Number of DisplayPort Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | No |
| Audio Ports | |
|---|---|
| Number of Audio Line Out | 1 |
| Audio Line Out | Yes |
| Audio Line In | Yes |
| Audio | |
|---|---|
| Speakers | No |
| Software & Licensing | |
|---|---|
| Embedded CMS | Local Contents Scheduling |
| Compatible Software | SuperSign |
| Size / Dimensions | |
|---|---|
| VESA Mount Standard | 600 x 400 |
| Orientation | Landscape/Portrait |
| Bezel Width | 17.3 mil |
| Appearance | |
|---|---|
| Bezel Color | Black |
| Security | |
|---|---|
| HDCP Version | 1.4 |
| General Features | |
|---|---|
| Operation Hours | 24 Hours/7 Days |
| Maximum Heat Generation | 900 kJ |
| Manufacturer | LG Electronics |
| Maximum LED Life | 6.8 Year |
| Video Ports | |
|---|---|
| DVI-D In | Yes |
| Misc Ports | |
|---|---|
| RS-232C Output | Yes |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 8.0 |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Humidity | 80% |
| Minimum Operating Humidity | 10% |
| TAA Compliant | No |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | ErP |
| Ingress Protection (IP) Rating | IP5X |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Packaging & Origin | |
|---|---|
| Country of Assembly | Mexico |
| Miscellaneous | |
|---|---|

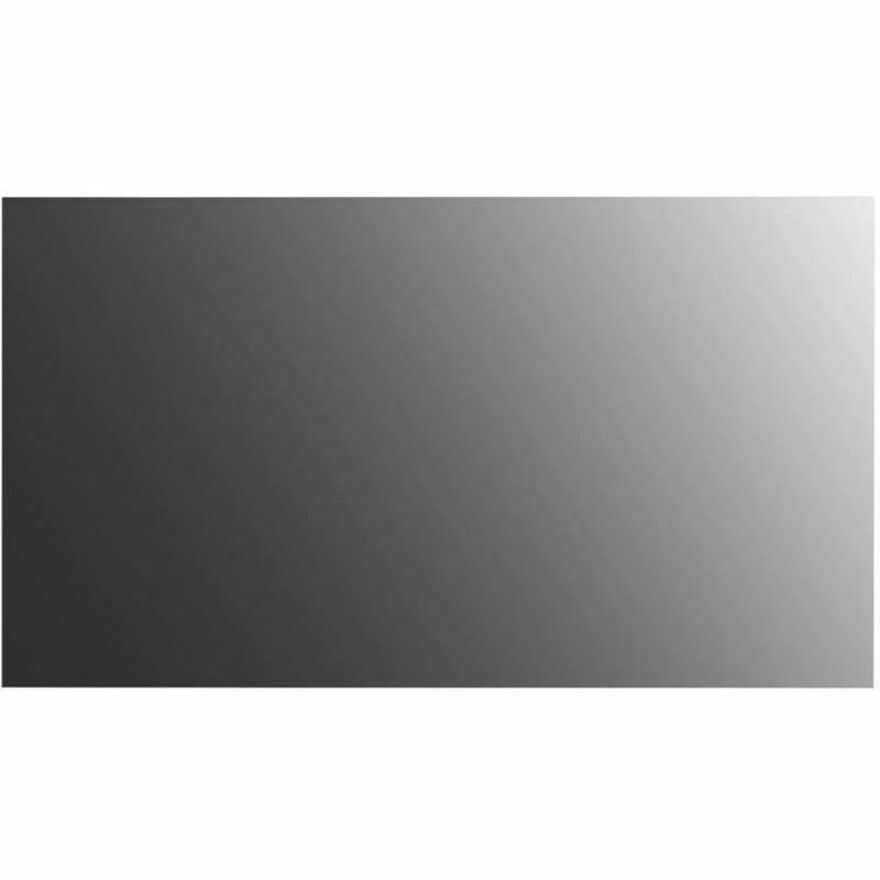

| Product Name | 55'' 700 nits FHD 0.44mm Even Bezel Video Wall |
