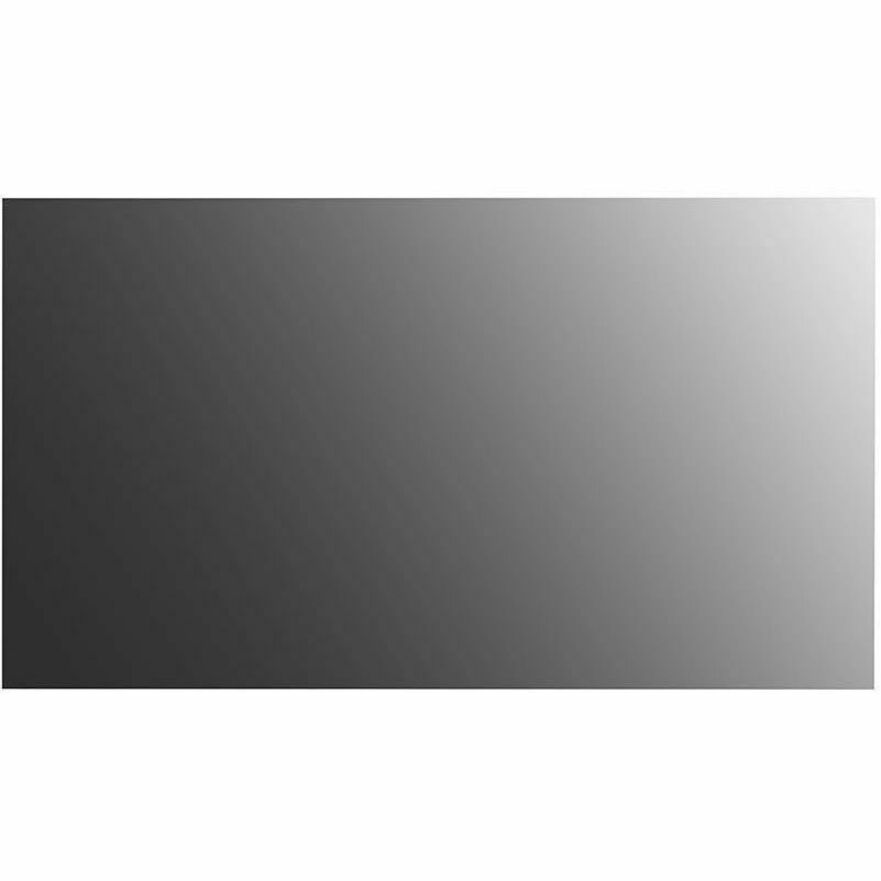

Artistic Immersion, Overwhelming Captivation | Seamless Large Screens with Extreme-Narrow Bezel
The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.
Image Gap Reduction
The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40°) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.
Wider Viewing Angle
LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VM5J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.
Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
Simple White Balance Adjustment
In conventional video walls, white balance was adjustable only in "full-white" mode, but the VM5J-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.
High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
- Brightness(Typ.) : 500 nit
- Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
- Depth : 86.9 mm
- Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
| Brand | |
|---|---|
| Brand | LG Electronics |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 000:1 , 1 |
| Dynamic Contrast Ratio | 000:1 , 500 |
| On Screen Display (OSD) Langu | Turkish |
| Image Sticking Minimization ( | Yes |
| Viewable Screen Size | 55" |
| Multi-touch Screen | No |
| Display Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Panel Technology | In-plane Switching (IPS) Technology |
| Brightness | 500 Nit |
| Response Time | 8 ms |
| Standard Refresh Rate | 60 Hz |
| Color Gamut | 72% NTSC |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Color Depth | 10-bit |
| Power & Battery | |
|---|---|
| Power Consumption (DPM) | 0.5W |
| Input Voltage | 230 V AC |
| Off-Mode Power Consumption | 500 mW |
| Power Consumption | 190 W |
| Networking & Connectivity | |
|---|---|
| Infrared Output | No |
| Content Synchronization | RS-232C |
| Wireless LAN | No |
| Bluetooth | No |
| USB Ports | |
|---|---|
| USB Type-C | No |
| Number of USB 2.0 Ports | 1 |
| HDMI Ports | |
|---|---|
| Number of HDMI Inputs | 2 |
| DisplayPort | |
|---|---|
| DisplayPort In | Yes |
| DisplayPort Output | Yes |
| Number of DisplayPort Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | No |
| Audio Ports | |
|---|---|
| Number of Audio Line Out | 1 |
| Audio Line Out | Yes |
| Audio Line In | Yes |
| Audio | |
|---|---|
| Speakers | No |
| Software & Licensing | |
|---|---|
| Embedded CMS | Local Contents Scheduling |
| Compatible Software | SuperSign |
| Size / Dimensions | |
|---|---|
| VESA Mount Standard | 600 x 400 |
| Orientation | Landscape/Portrait |
| Bezel Width (Top) | 51.2 mil |
| Bezel Width (Bottom) | 17.3 mil |
| Bezel Width (Left) | 51.2 mil |
| Bezel Width (Right) | 17.3 mil |
| Appearance | |
|---|---|
| Bezel Color | Black |
| Security | |
|---|---|
| HDCP Version | 1.4 |
| General Features | |
|---|---|
| Operation Hours | 24 Hours/7 Days |
| Maximum Heat Generation | 683.7 kJ |
| Manufacturer | LG Electronics |
| Maximum LED Life | 6.8 Year |
| Video Ports | |
|---|---|
| DVI-D In | Yes |
| Misc Ports | |
|---|---|
| RS-232C Output | Yes |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 8.0 |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Humidity | 80% |
| Minimum Operating Humidity | 10% |
| TAA Compliant | No |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | ErP |
| Ingress Protection (IP) Rating | IP5X |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Packaging & Origin | |
|---|---|
| Country of Assembly | Mexico |
