32:9 Extended Wide Format
This unique wide screen with 32:9 apect ratio provides more flexibility in content than the conventional 16:9 ratio display.
Picture-by-Picture (PBP) Mode
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display. Delivering various advertisements or pieces of information at the same time.
Portrait/Landscape Mode
BH7N can be used horizontally & vertically, allowing for flexible utilization in various installation/usage scenes. It can be utilized for displays according to the characteristics and size of unused spaces.
Customizable Angle to Suit Customer's Eye Level
With a tilting capability of 30° when installed at a higher height, BH7N enhances customer perception and satisfaction.
Conformal Coating
It can be hard to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on the power board of the 37BH7N-M Ultra Stretch helps reduce these risks.
A Bright View
With a brightness of 700 nits, the 37BH7N-M clearly delivers content and can attract attention, making it suitable for displaying presentations and marketing communications in meeting rooms, retail spaces, airports, shopping malls, and more.
Daisy Chain Management
A daisy chain allows you to conveniently and efficiently play the same content on multiple displays using just one media player. This eliminates the need to install separate media boxes for each display, as the entire operation can be handled by a single media player.
High Performance with LG webOS™ 6.0
LG webOS™ platform enhances user convenience with intuitive graphical user interface (GUI) and access to an advanced ecosystem of third-party development applications.
Real-Time Monitoring with LG ConnectedCare™
Easy and fast maintenance is available with our optional cloud service solution LG ConnectedCare™*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
LG SuperSign™ Content Management Solution
SuperSign™ is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign™ Cloud, so discover and enjoy the version that best fits you.

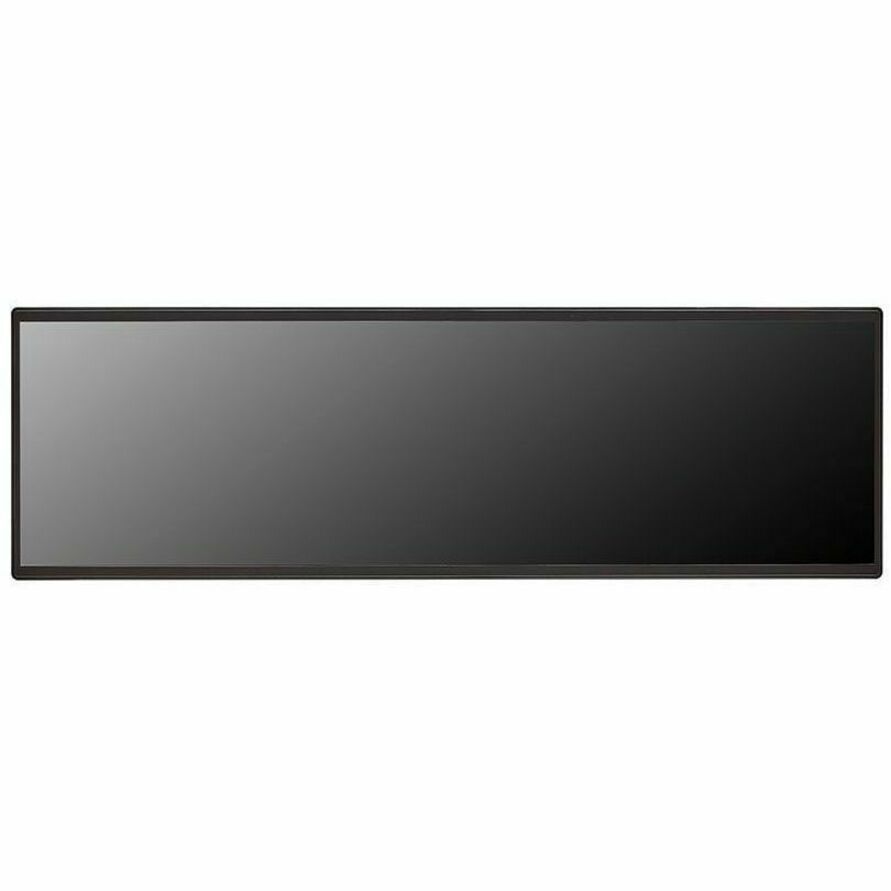

- 37" FHD (1,920x540) IPS (ADS) with 32:9 Aspect Ratio
- 700 nits Brightness, 30° tilt with 178° x 178° Viewing Angles
- webOS™ 6.0 Smart Signage Platform
- Picture-by-Picture and Portrait & Landscape Mode
- Compatible with LG SuperSign Softwares
- Lifetime upto 50,000 hours, 24/7
| Brand | |
|---|---|
| Brand | LG Electronics |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 1 , 100:1 |
| Dynamic Contrast Ratio | 000 , 100 , 0:1 |
| On Screen Display (OSD) Langu | Swedish |
| Image Sticking Minimization ( | Yes |
| Viewable Screen Size | 37" |
| Multi-touch Screen | No |
| Backlight Technology | Edge LED |
| Display Resolution | 1920 x 540 |
| Aspect Ratio | 32:9 |
| Panel Technology | ADS-IPS |
| Brightness | 700 Nit |
| Response Time | 14 ms |
| Standard Refresh Rate | 60 Hz |
| Color Gamut | 72% NTSC |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Color Depth | 8-bit |
| Power & Battery | |
|---|---|
| Power Consumption (DPM) | 1W |
| Input Voltage | 120 V AC |
| Off-Mode Power Consumption | 1 W |
| Power Consumption | 50 W |
| Networking & Connectivity | |
|---|---|
| Content Synchronization | RS-232C |
| Wireless LAN | Yes |
| Bluetooth | No |
| USB Ports | |
|---|---|
| USB Type-C | No |
| Number of USB 2.0 Ports | 1 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 2 |
| DisplayPort | |
|---|---|
| DisplayPort In | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Audio Ports | |
|---|---|
| Number of Audio Line Out | 1 |
| Audio Line Out | Yes |
| Audio | |
|---|---|
| Speakers | No |
| Software & Licensing | |
|---|---|
| Embedded CMS | Local Contents Scheduling |
| Compatible Software | Mobile CMS |
| Size / Dimensions | |
|---|---|
| VESA Mount Standard | 400 x 200 |
| Orientation | Landscape/Portrait |
| Appearance | |
|---|---|
| Bezel Color | Black |
| Surface Hardness | 3H |
| Security | |
|---|---|
| HDCP Version | 1.4/2.2 |
| General Features | |
|---|---|
| Operation Hours | 24 Hours/7 Days |
| Maximum Heat Generation | 242.7 kJ |
| Manufacturer | LG Electronics |
| Maximum LED Life | 5.7 Year |
| Misc Ports | |
|---|---|
| RS-232C Input | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Humidity | 80% |
| Minimum Operating Humidity | 10% |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | ErP |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Packaging & Origin | |
|---|---|
| Country of Assembly | South Korea |
