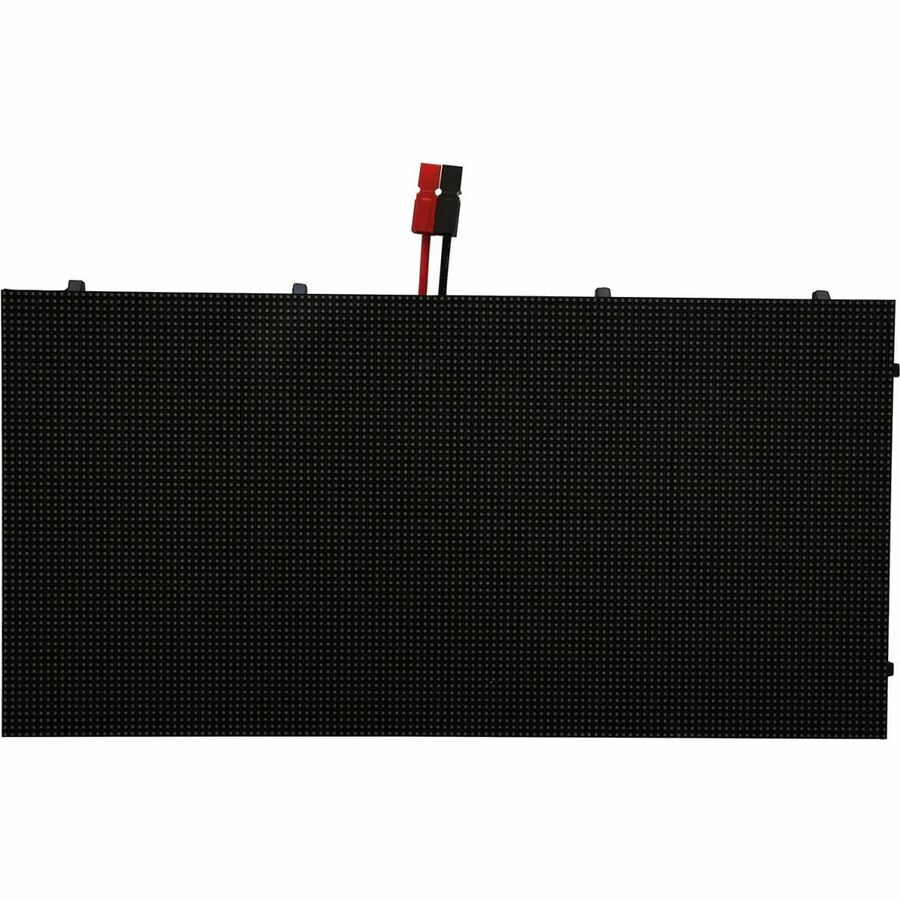

Flexible LED Display
With a specially designed flexible LDM (LED Display Module), the LCCM series supports true concave and convex curvature from 611R. The LCCM series also greatly amplifies design flexibility, providing users with the ability to create true curved screens.
Creative LED Screen
Different from the conventional LED display, LCCM series breaks free from the rectangular shape, allowing to be designed in various shapes as to display highly creative content on screen. In addition, the separation of the PDU (Power & Data Unit) from the cabinet gives a lot of freedom and advantage for creative installations.
Easy Installation & Maintenance
The easy-handling lightweight LDM (LED Display Module) makes installation easy. Also, with various factors including magnets and positioning pins, the installers can easily install and dismantle the LED screen with dedicated tool, making it convenient to manage.
Compatibility with LG Software Solutions
Powered by LG's high performance system controller, the LCCM series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
- 2.50 mm Pixel Pitch & 1,200 nits Brightness
- Supports True Concave and Convex Curvature from 611R
- Separate Power & Data Unit
- Easy Installation & Maintenance
| Brand | |
|---|---|
| Brand | LG Electronics |
| Screen / Display | |
|---|---|
| Color Uniformity | Cy , ±0.003 Cx |
| Native Contrast Ratio | 000:1 , 5 |
| Minimum Color Temperature | 5300.3°F (2926.8°C) |
| Maximum Color Temperature | 16280.3°F (9026.8°C) |
| Physical Pixel Density | 160000 pixels/m² |
| LED Type | Single SMD |
| Frame Refresh Rate | 60 Hz |
| High Dynamic Range (HDR) Type | HDR10 Pro |
| High Dynamic Range (HDR) | Yes |
| Display Resolution | 128 x 64 |
| Brightness | 1200 Nit |
| Standard Refresh Rate | 1.92 kHz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 160° |
| Pixel Pitch | 98.4 mil |
| Module Resolution | 128 x 64 |
| Power & Battery | |
|---|---|
| Heat Dissipation | 36.05 W |
| Average Heat Dissipation Per | 12.02 W |
| Input Voltage | 230 V AC |
| Size / Dimensions | |
|---|---|
| Module Height | 6.30" |
| Module Width | 12.60" |
| Weight per Module (Approximat | 1.10 lb |
| General Features | |
|---|---|
| Service Access | Front |
| Number of Modules Per Cabinet | 1x1 |
| Manufacturer | LG Electronics |
| Maximum LED Life | 11.4 Year |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Humidity | 90% |
| Minimum Operating Humidity | 10% |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH |
| Ingress Protection (IP) Rating | IP30 |
