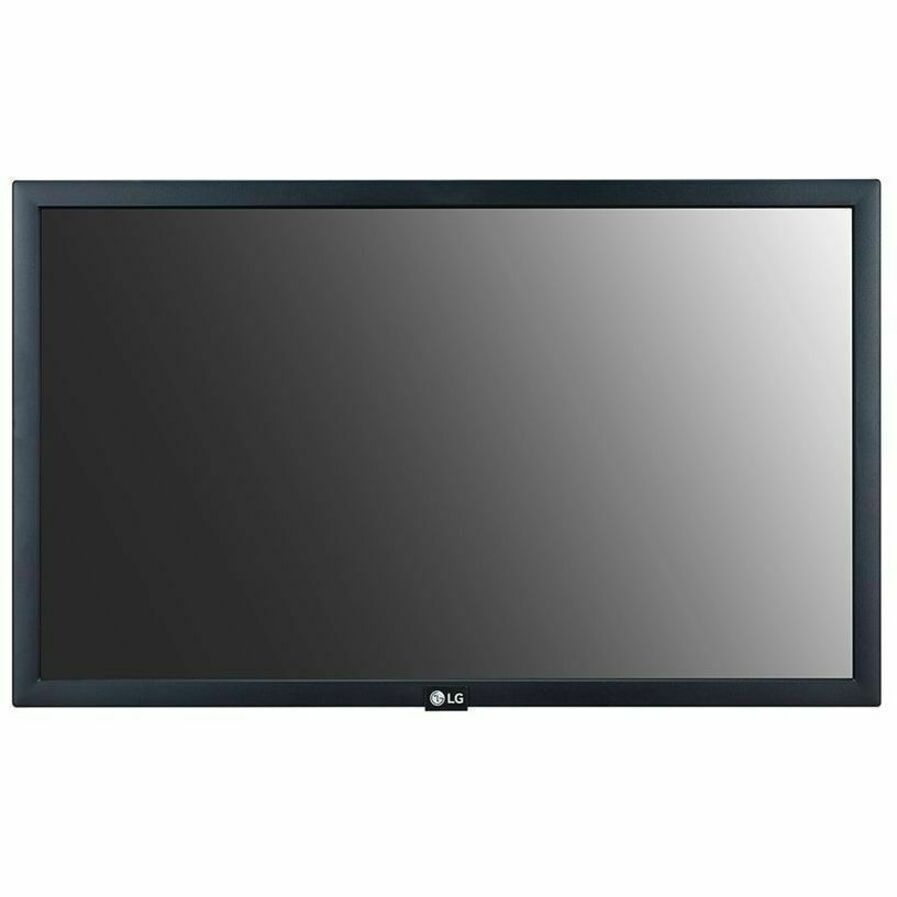

LG 22SM3G-B Digital Signage Display

507.00 507.00
507.00

507.00 / Units
  • Brand
  • Depth
  • DisplayPort In
  • Weight (Approximate)
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • On Screen Display (OSD) Langu
  • DVI-D In
  • Country of Assembly
  • Power Consumption (DPM)
  • Infrared Output
  • Embedded CMS
  • HDCP Version
  • Compatible Software
  • Image Sticking Minimization (
  • Viewable Screen Size
  • Wireless LAN
  • Bluetooth
  • Ethernet
  • Speakers
  • Multi-touch Screen
  • Backlight Technology
  • Features
  • USB
  • USB Type-C
  • Number of USB 2.0 Ports
  • HDMI
  • Number of HDMI Outputs
  • Number of HDMI Inputs
  • DisplayPort Output
  • Network (RJ-45)
  • Audio Line Out
  • Audio Line In
  • Serial
  • Product Color
  • Color Family
  • Bezel Color
  • VESA Mount Compatible
  • VESA Mount Standard
  • Orientation
  • Bezel Width
  • Display Resolution
  • Display Screen Type
  • Aspect Ratio
  • Panel Technology
  • Brightness
  • Response Time
  • Standard Refresh Rate
  • Color Gamut
  • Horizontal Viewing Angle
  • Vertical Viewing Angle
  • Native Contrast Ratio
  • Dynamic Contrast Ratio
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Operating Humidity
  • Minimum Operating Humidity
  • Input Voltage
  • RS-232C Input
  • Off-Mode Power Consumption
  • Operation Hours
  • Maximum Heat Generation
  • Color Depth
  • Operating System
  • TAA Compliant
  • Energy Star
  • Environmentally Friendly
  • Certifications & Standards
  • Energy Efficiency Compliance
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
  • Power Consumption
  • Maximum LED Life
  • Scan Format
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

22" Signage with More Utility for Commercial Space
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.

High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

SMART SIGNAGE PLATFORM | Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.

SMART SIGNAGE PLATFORM | A Wide Range of Interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.

SMART SIGNAGE PLATFORM | USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.

SMART SIGNAGE PLATFORM | Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.

SMART SIGNAGE PLATFORM | Real-time Promotion
With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

SMART SIGNAGE PLATFORM | Wireless Solution
22SM3G operates as a virtual router which can be a wireless access point for mobile devices.

OPERATIONAL EFFICIENCY | Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

OPERATIONAL EFFICIENCY | Real-time Care Service with LG ConnectedCare
The maintenance gets easier and faster with the optional service LG ConnectedCare, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client's business.

More from the Manufacturer

  • USB Plug & Play, Built-in Wi-Fi
  • Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
  • Depth : 53.8mm
  • Bezel : 16.3mm
  • Brightness(Typ.) : 250 cd/m²
Brand
Brand LG Electronics
Screen / Display
Native Contrast Ratio 1 , 100:1
Dynamic Contrast Ratio 000:1 , 400
On Screen Display (OSD) Langu Turkish
Image Sticking Minimization ( Yes
Viewable Screen Size 21.50"
Multi-touch Screen No
Backlight Technology Edge LED
Display Resolution 1920 x 1080
Display Screen Type LCD
Aspect Ratio 16:9
Panel Technology In-plane Switching (IPS) Technology
Brightness 250 Nit
Response Time 14 ms
Standard Refresh Rate 60 Hz
Color Gamut 95% BT.709
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Color Depth 6-bit
Power & Battery
Power Consumption (DPM) 0.5W
Input Voltage 230 V AC
Off-Mode Power Consumption 500 mW
Power Consumption 33 W
Networking & Connectivity
Infrared Output No
Wireless LAN Yes
Bluetooth No
Ethernet Yes
USB Ports
USB Yes
USB Type-C No
Number of USB 2.0 Ports 1
HDMI Ports
HDMI Yes
Number of HDMI Outputs 1
Number of HDMI Inputs 2
DisplayPort
DisplayPort In No
DisplayPort Output No
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) No
Audio Ports
Audio Line Out No
Audio Line In Yes
Audio
Speakers No
Software & Licensing
Embedded CMS Local Contents Scheduling
Compatible Software SuperSign
Size / Dimensions
VESA Mount Compatible Yes
VESA Mount Standard 100 x 100
Orientation Landscape/Portrait
Bezel Width 0.64"
Appearance
Bezel Color Black
Security
HDCP Version 2.2
General Features
Operation Hours 16 Hours/ 7 Days
Maximum Heat Generation 8.3 kJ
Manufacturer LG Electronics
Maximum LED Life 3.4 Year
Video Ports
DVI-D In No
Misc Ports
Serial Yes
RS-232C Input Yes
Printer/Scanner/Fax Specs
Scan Format 1080p
Compliance & Certification
Maximum Operating Temperature 104°F (40°C)
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Humidity 80%
Minimum Operating Humidity 10%
TAA Compliant Yes
Energy Star No
Environmentally Friendly Yes
Energy Efficiency Compliance Energy-related Products Directive (ErP)
Packaging & Origin
Country of Assembly Mexico
LG 22SM3G-B Digital Signage Display - 21.50" LCD - In-plane Switching (IPS) Technology - 16 Hours/ 7 Days Operation - 1920 x 1080 - 16:9 - 14 ms - LED - 250 Nit - 1080p - Speakers - HDMI - USB - Serial - Wireless LAN - Bluetooth - Ethernet - WebOS - Black
