Display for breast imaging
- 21.3-inch 5MP (2048x2560) IPS Display
- Calibration with Front Sensor
Efficiency
- 5 Hot Keys
- Daisy Chain
Convenience
- User-friendly Monitor Stand
- Down light & Wall light
High resolution display for breast imaging | High Definition Imaging

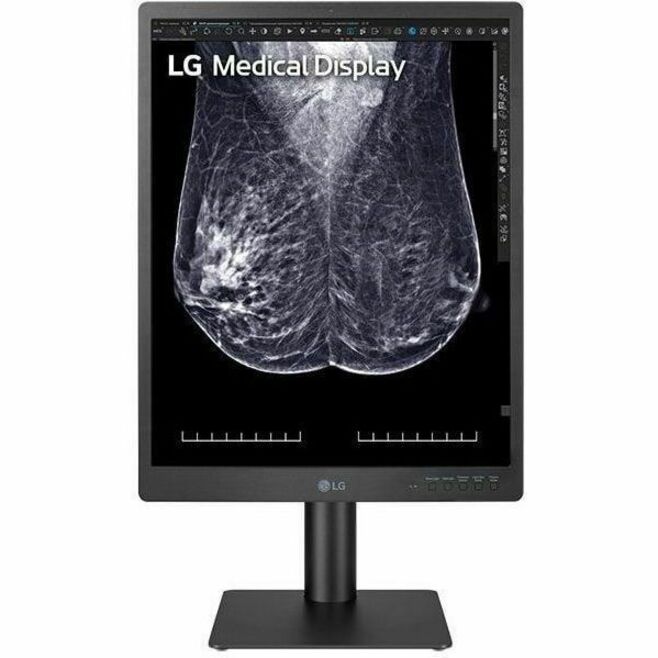

Diagnostic Monitor 21HQ613D displays radiological images, including full field digital mammography and digital breast tomosynthesis, with a brightness of 1,100 cd/m² and a contrast ratio of 1,800:1. Moreover, this monitor showcases vivid color, high definition mammography and breast tomosynthesis images including breast MRI, CT scans and ultrasound, ensuring versatile performance across various medical imaging modalities.
Multi-resolution mode | Set the resolution mode to fit your needs
The various resolution modes (5/3/2MP) of the 21HQ613D allow users to customize their resolution to better fit their respective needs.
Internal front calibration sensor | Consistency in medical images
The front-sensor, supported by calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
Focus view mode | Focus on the region of interest
Highlight specific parts of the medical image with Focus view mode. Users can easily select and focus on areas of concern with max brightness of screen, while darkening the rest.
Pathology mode | As if you were looking into a microscope
With Pathology mode, this diagnostic monitor provides image clarity and accuracy as if you were looking at a microscope.
5 Hot Keys | Intuitive Control
The 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. They provide fast and easy way to operate while working, allowing you to change mode and lighting settings all without disrupting your workflow.
Presence sensor | Convenient power management
The presence sensor automatically turns off the display when no motion is detected for 5 minutes, contributing to convenient power management.
Daisy chain | Simple connection for a clutter-free workspace
Make your workspace productive with the Daisy Chain setup. You can reduce clutter on your desk and simplify cable management, leading to a productive workspace.
- 21.3-inch 5MP (2,048x2,560) IPS Display
- 1,100 cd/m² Brightness (Typ.)
- Multi-Resolution Mode (5/3/2MP)
- Internal Front Calibration Sensor
- Focus View Mode / Pathology Mode
- Daisy Chain
| Brand | |
|---|---|
| Brand | LG Electronics |
| GPU / Graphics | |
|---|---|
| Number of Screens | 1 |
| Screen / Display | |
|---|---|
| Contrast Ratio | 1 , 800:1 |
| Pivot | Yes |
| Screen Size Class | 21" |
| Viewable Screen Size | 21.3" |
| Panel Technology | In-plane Switching (IPS) Technology |
| Brightness | 1100 Nit |
| Response Time | 5 ms |
| Color Gamut | 72% NTSC |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Screen Surface | Anti-glare |
| Response Time Details | 5 ms GTG Off Mode |
| Power & Battery | |
|---|---|
| Input Voltage Range | 120V to 230V |
| Maximum Power Consumption | 120 W |
| USB Ports | |
|---|---|
| Number of USB 3.0 Upstream Po | 2 |
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI | No |
| DisplayPort | |
|---|---|
| DisplayPort Input | Yes |
| DisplayPort | Yes |
| DisplayPort Output | Yes |
| Number of DisplayPorts | 1 |
| Size / Dimensions | |
|---|---|
| Weight with Stand (Approximat | 17.31 lb |
| Height with Stand | 14.35" |
| Depth with Stand | 9.20" |
| Width with Stand | 24.98" |
| Maximum Adjustable Height | 5.91" |
| Tilt Angle | -5° to 25° |
| Appearance | |
|---|---|
| Adjustable Stand | Yes |
| General Features | |
|---|---|
| Swivel Angle | -45° to 45° |
| Frequency | 60 Hz |
| Manufacturer | LG Electronics |
| Misc Ports | |
|---|---|
| Interface | USB-C |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
