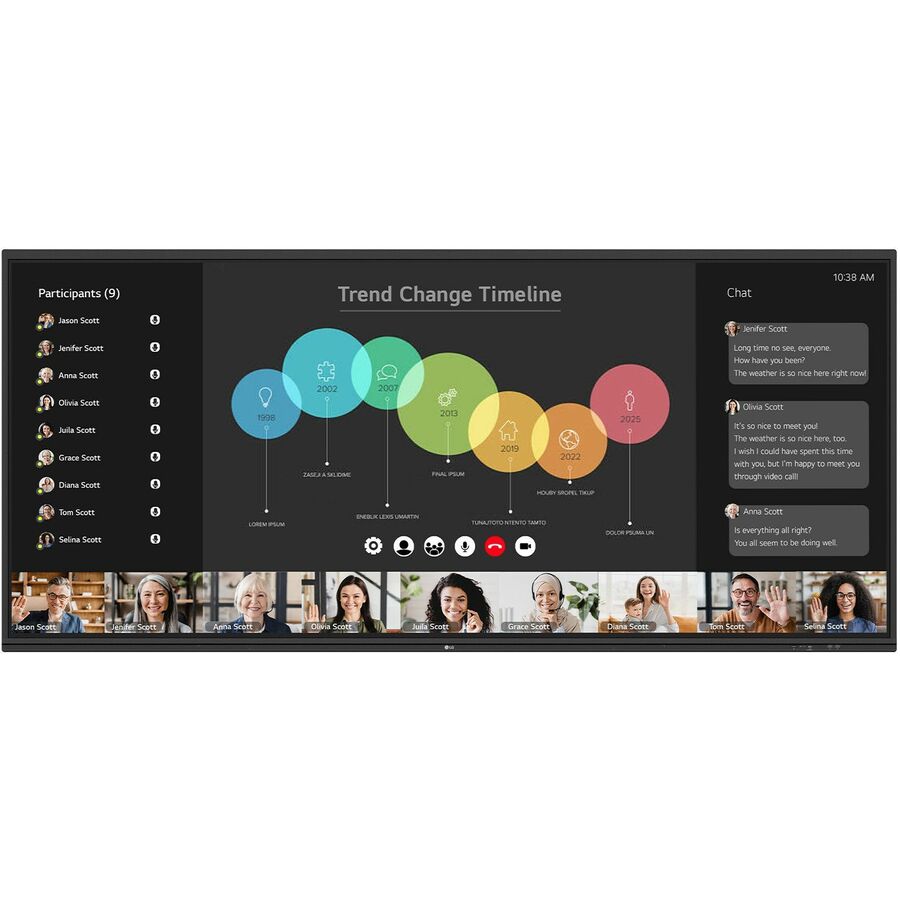

21:9 Extended Wide Format
With support for a 21:9 widescreen aspect ratio, the TR5WP provides an immersive viewing experience with a wider screen than a 16:9 display. This screen specialization helps display 21:9 content, including widescreen videoconferencing platforms, with natural details.
LG CreateBoard Lab
LG's proprietary whiteboarding software
Tools for Fluid Discussion
A variety of tools such as a calculator, clock, and sticky note are available to facilitate smooth discussions and ensure seamless idea sharing and communication. Also, users can personalize the menu bar with their most frequently used tools, thereby improving their work efficiency.
Web Browser
When you need a reference during a discussion, you can access various online information in real time with the simple click of a web browser. The necessary information found on the internet can be easily dragged and dropped into the material you're creating, enhancing the productivity of your meetings.
Multi-OS Support
LG CreateBoard Lab offers multi-OS support, allowing users to utilize it not only with LG CreateBoard but also with other devices. This enables users to maintain a seamless experience on tablets, laptops, and various other devices, even outside the classroom.
LG CreateBoard Share
LG CreateBoard Share offers a wireless screen sharing feature, providing users with a flexible discussion environment. Users can share their screen from their own PC, tablet, or smartphone, simplifying the process of sharing and collaborating on team projects or presentation materials.
Wireless ScreenShare Feature for Seamless Sharing Environment
LG CreateBoard Share establishes a seamless and stable meeting room without the need for extra cables or connections. Presenters can now share their screens without the need to inconveniently move around and unplug and plug cables each time the presenter changes. With the capability to share up to 9 screens in real-time, it's possible to display multiple people's materials simultaneously when needed, thereby enhancing the efficiency of collaboration.
Simple Connection to LG CreateBoard Share
Users can easily utilize the wireless screen sharing feature via LG CreateBoard Share app, and even without the app, they can still conveniently access this feature through the website. A quick connection to LG CreateBoard Share can be established by entering a 6-digit code.
LG ConnectedCare
LG ConnectedCare is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard and LG signage displays. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.
Dashboard
The LG ConnectedCare dashboard allows you to view and monitor multiple devices at the same time, thereby saving time and boosting efficiency.
Remote-control
The LG ConnectedCare enables centralized and simple control of digital signage connected to the system. Frequently used functions such as power on/off, scheduling and screen brightness adjustment can be applied remotely.
Broadcasting
Messages and a range of other content can be sent from the main system to individual devices connected to LG ConnectedCare. Company events or announcements can be broadcasted remotely from the main system at once.
- Brightness : 400 nit (Typ.) with Glass
- Screen Size : 105"
- Resolution : 5,120 � 2,160 (21:9, 5K)
- Multi-Touch Point : Max. 50 Points
| Brand | |
|---|---|
| Brand | LG Electronics |
| GPU / Graphics | |
|---|---|
| HDCP Supported | Yes |
| Storage | |
|---|---|
| Flash Memory Capacity | 64 GB |
| Screen / Display | |
|---|---|
| Contrast Ratio | 000:1 , 4 |
| Panel Life | 50000 Hours |
| Display Orientation | Landscape |
| Protection Glass Transmission | 88% |
| Screen Size Class | 105" |
| Viewable Screen Size | 105" |
| Multi-touch Screen | Yes |
| Number of Touch Points | 50 |
| Backlight Technology | Direct LED |
| Screen Resolution | 5120 x 2160 |
| Display Screen Technology | Vertical Alignment (VA) |
| Screen Mode | 5K |
| Aspect Ratio | 16:9 |
| Brightness | 400 Nit |
| Response Time | 6.50 ms |
| Standard Refresh Rate | 60 Hz |
| Color Gamut | 72% NTSC |
| Color Supported | 1.07 Billion Colors |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Color Depth | 10-bit |
| Power & Battery | |
|---|---|
| Standby Power Consumption | 500 mW |
| Power Consumption | 315 W |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| USB Ports | |
|---|---|
| Number of USB Type-C (Power D | 2 |
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 4 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Audio Line In | Yes |
| Camera / Webcam | |
|---|---|
| Webcam | Yes |
| Audio | |
|---|---|
| Number of Microphone Array El | 8 |
| Speakers | Yes |
| Number of Speakers | 2 |
| Microphone | Yes |
| RMS Output Power | 18 W |
| Software & Licensing | |
|---|---|
| Operating System Platform | ChromeOS |
| Size / Dimensions | |
|---|---|
| Bezel Width | 1.62" |
| Glass Thickness | 0.16" |
| Appearance | |
|---|---|
| Bezel Color | Black |
| General Features | |
|---|---|
| Operation Hours | 16 Hours/7 Days |
| Manufacturer | LG Electronics |
| Compliance & Certification | |
|---|---|
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Operating Humidity | 10% to 90% |
| Energy Star | Yes |
